Section 1294 (Manual Transmission - MK5)
>>
Component Locator
>>
Manual Transmission Component Views
Manual Transmission Component Views
WARNING:
This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

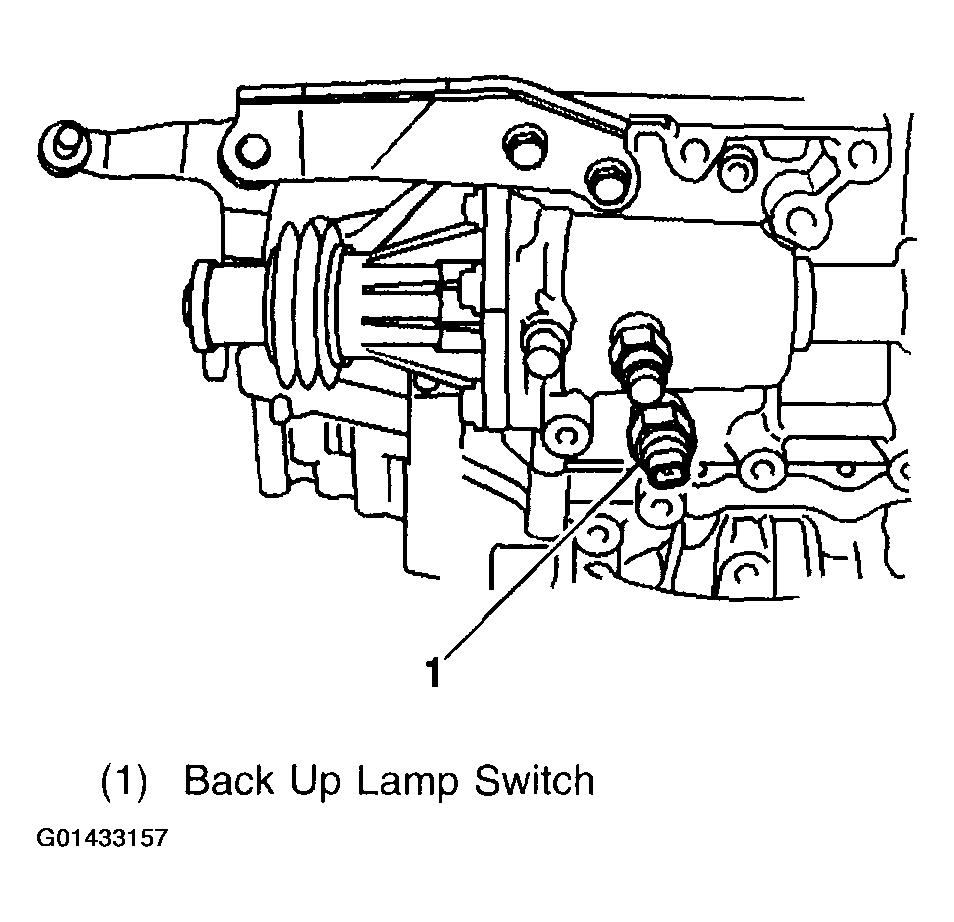

Fig 1: Back Up Lamp Switch Component View
Courtesy of GENERAL MOTORS CORP.

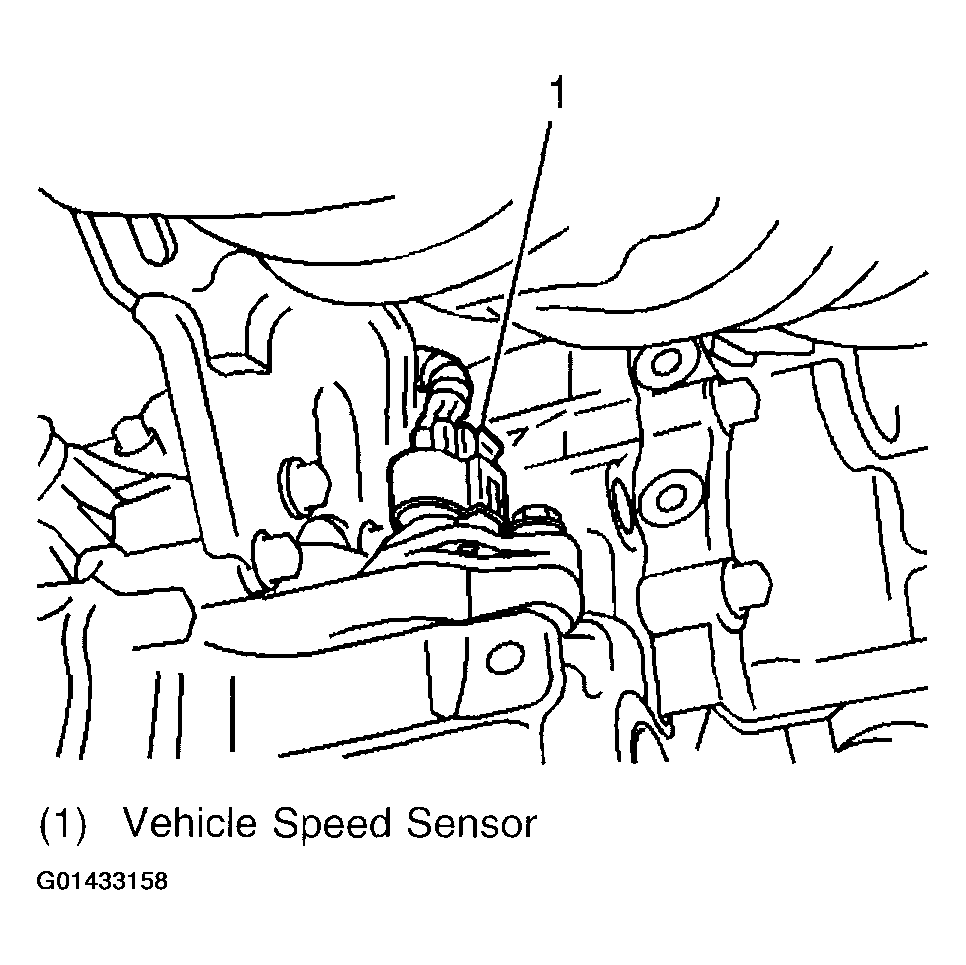

Fig 2: Vehicle Speed Sensor Component View
Courtesy of GENERAL MOTORS CORP.
