Starting System Schematics With Theft Deterrent

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

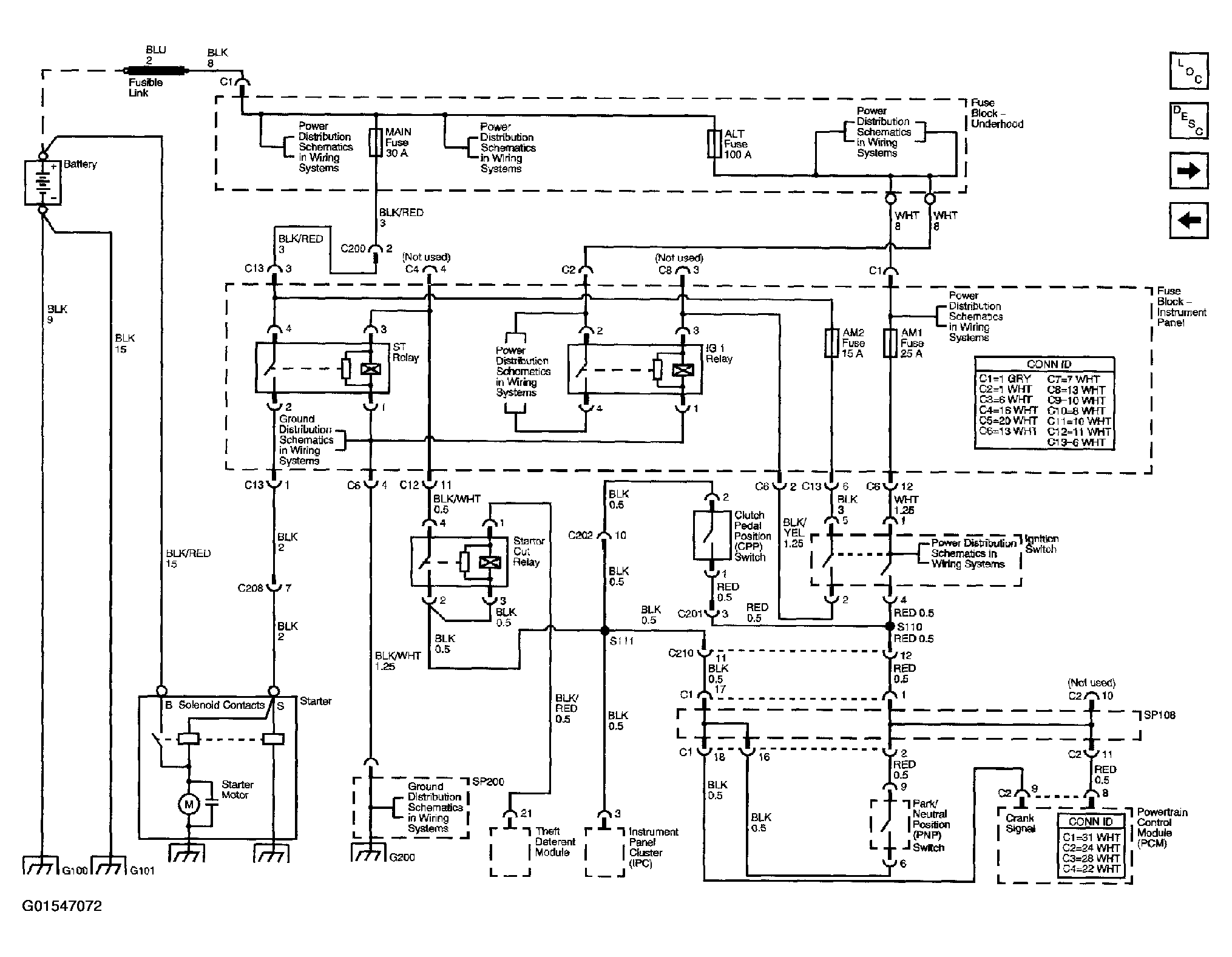

Fig 1: Identifying Starting & Charging Schematics (Starting System With Theft Deterrent)
G01547072Courtesy of GENERAL MOTORS CORP.
