Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Verify that all electrical components are off such as interior lights, all doors are closed, the underhood lamp, etc.
Clean corrosion from the negative battery cable using a metal brush.
Install the battery negative cable (3) to the battery (5).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the retaining bolt to the battery negative cable.
Tighten

Tighten the battery negative cable to 15 N.m (11 lb ft).
Reset the radio stations and the clock.

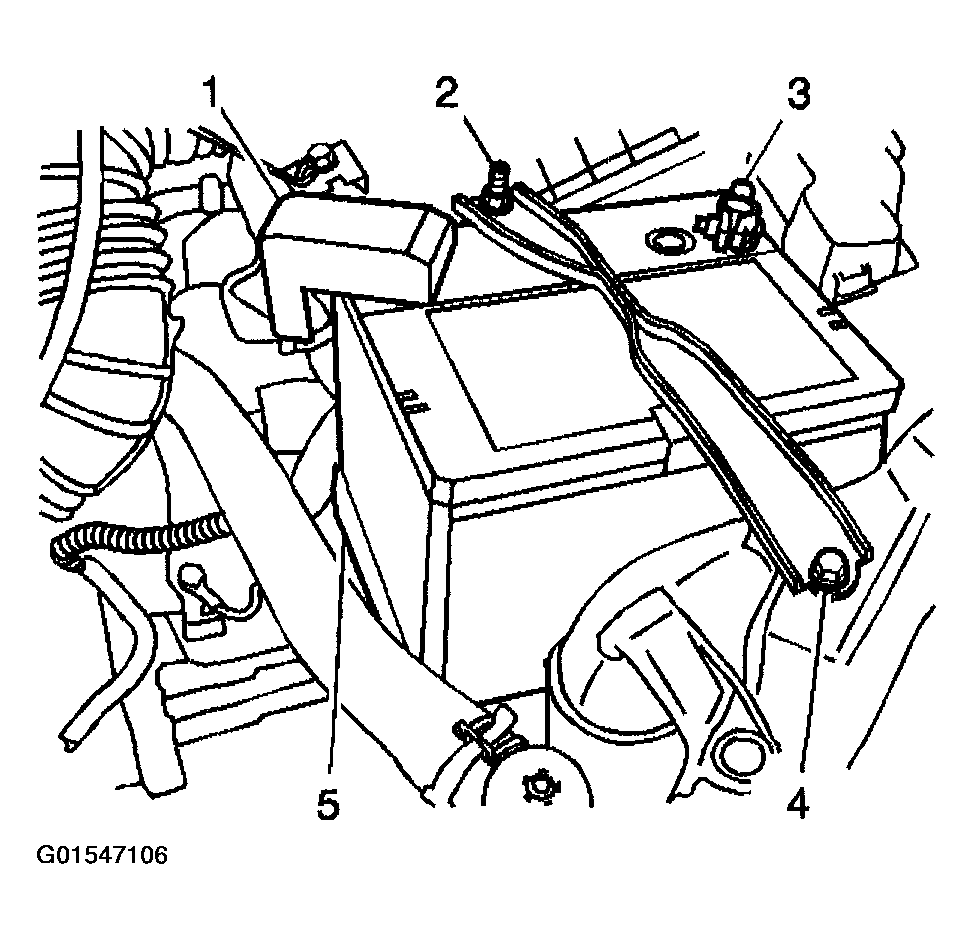

Fig 1: Installing Battery Negative Cable To Battery

Courtesy of GENERAL MOTORS CORP.
