Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator. Refer to RADIATOR REPLACEMENT   .
  2. Remove two radiator fan mount bolts.
  3. Remove the radiator fan with the motor

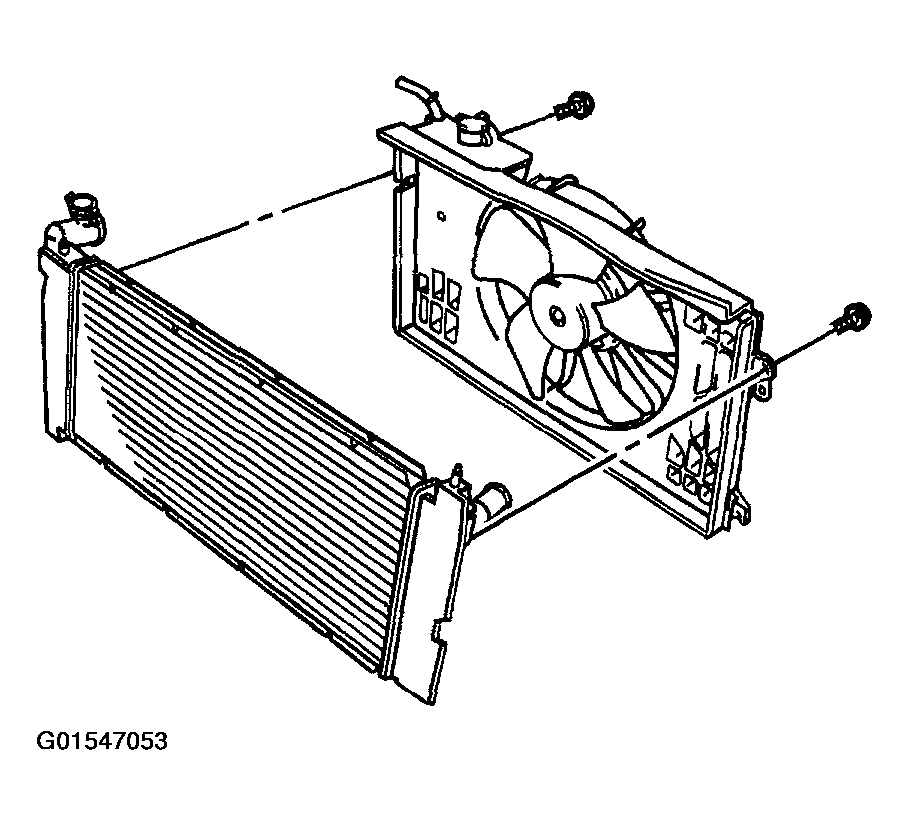

    Fig 1: Removing Radiator Fan With Motor
    G01547053Courtesy of GENERAL MOTORS CORP.
