Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Position the radiator fan with the motor
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install two radiator fan mount bolts.
1. Tighten
2. Tighten the radiator fan bolts to 3.8 N.m (34 lb in).
Install the radiator. Refer to RADIATOR REPLACEMENT .

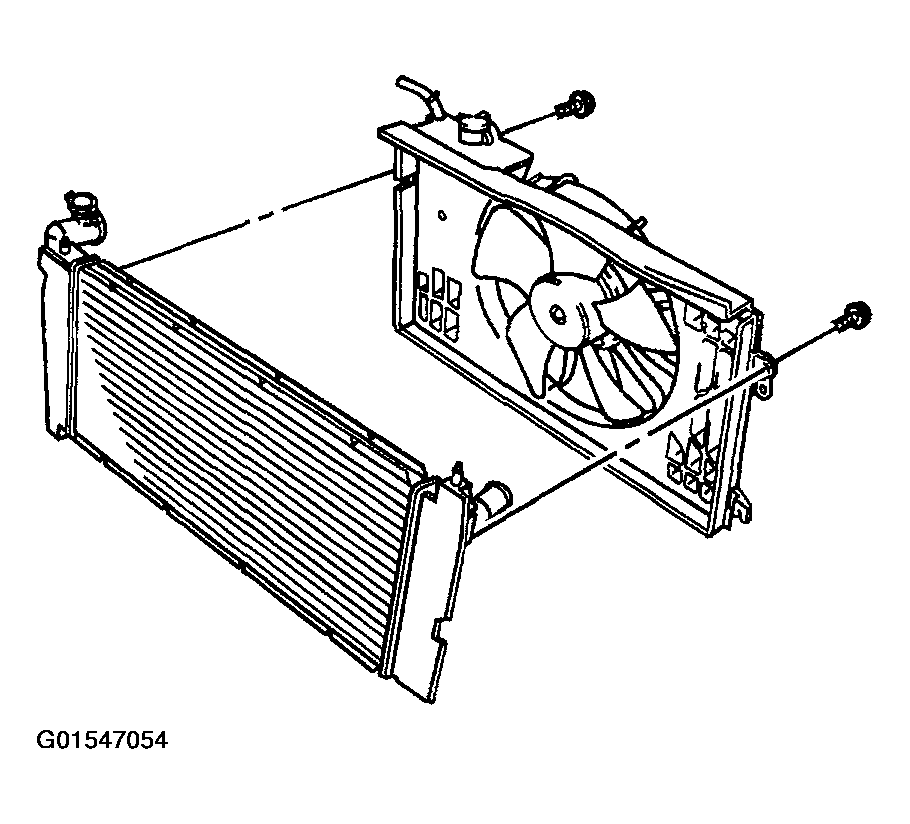

Fig 1: Installing Radiator Fan With Motor
Courtesy of GENERAL MOTORS CORP.
