Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover from fuse and relay block.
  2. Remove the fan No. 1 relay (2) or the engine main relay from fuse and relay block.

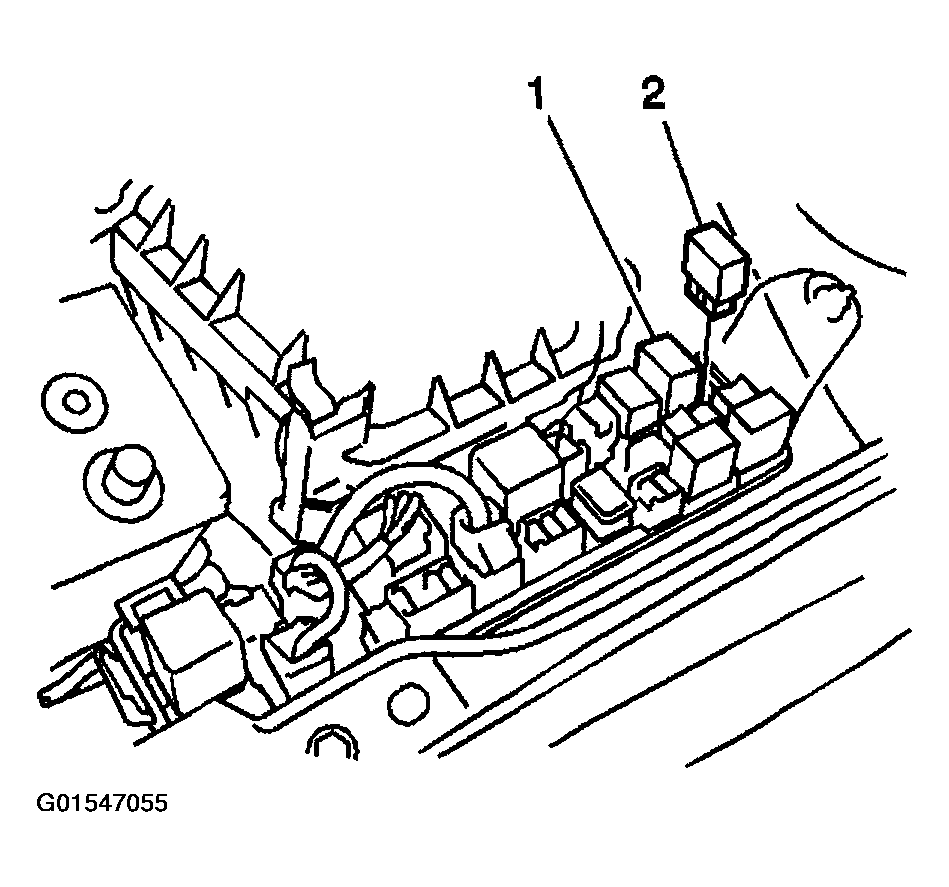

    Fig 1: Removing Fan Relay Or Engine Main Relay From Fuse And Relay Block
    G01547055Courtesy of GENERAL MOTORS CORP.
