Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fan No. 1 relay (2) relay or the engine main relay in fuse and relay block.
  2. Install the cover to fuse and relay block.

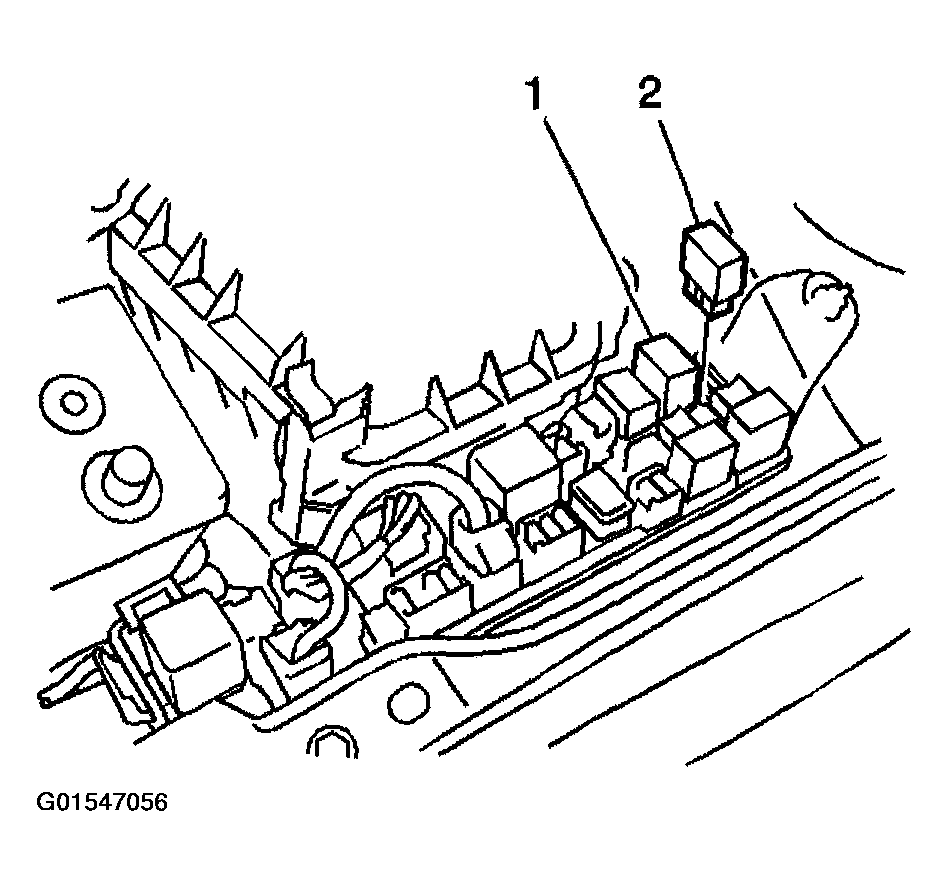

    Fig 1: Installing Fan No Relay Or Engine Main Relay In Fuse And Relay Block
    G01547056Courtesy of GENERAL MOTORS CORP.
