Installation Procedure

1. Release the ratchet pawl.
2. Fully depress the plunger (4).

   Apply the hook (2) to the pin (3).

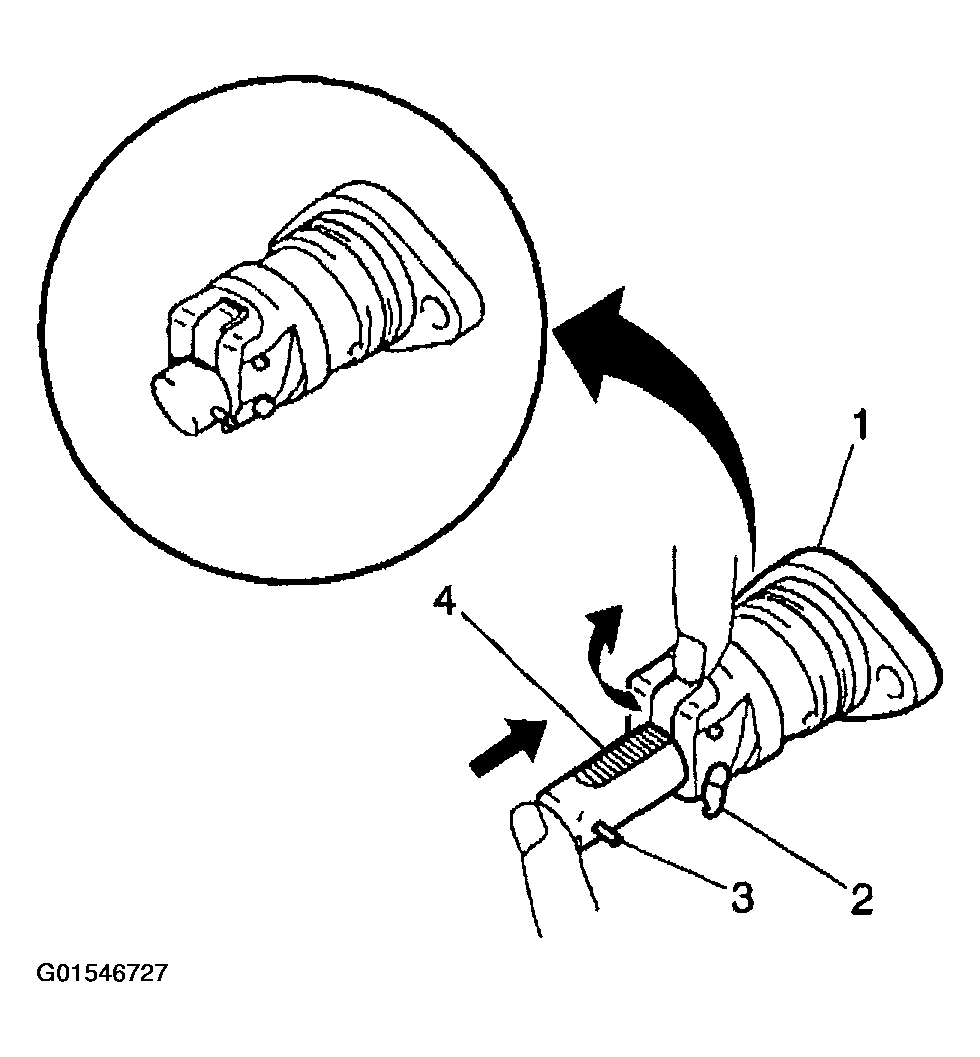

   Fig 1: Applying Hook To Pin

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Refer to FASTENER NOTICE .
3. Install the timing chain tensioner into the timing chain cover. Secure the timing chain tensioner using two bolts (1).

   Tighten

   Tighten the timing chain tensioner bolts to 10 N.m (89 lb in).

4. Rotate the engine approximately one revolution in order to release the plunger on the timing chain tensioner.

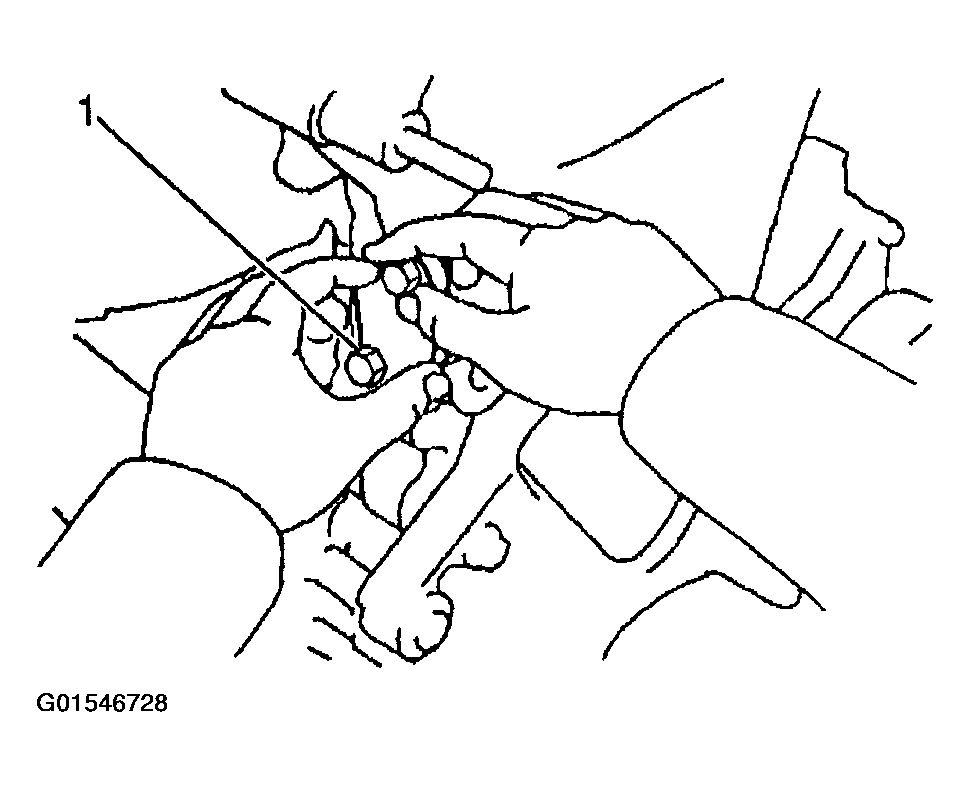

   Fig 2: Installing Timing Chain Tensioner

   Courtesy of GENERAL MOTORS CORP.
5. Install the spark plugs.

   Tighten

   Tighten the spark plugs to 28 N.m (21 lb ft).

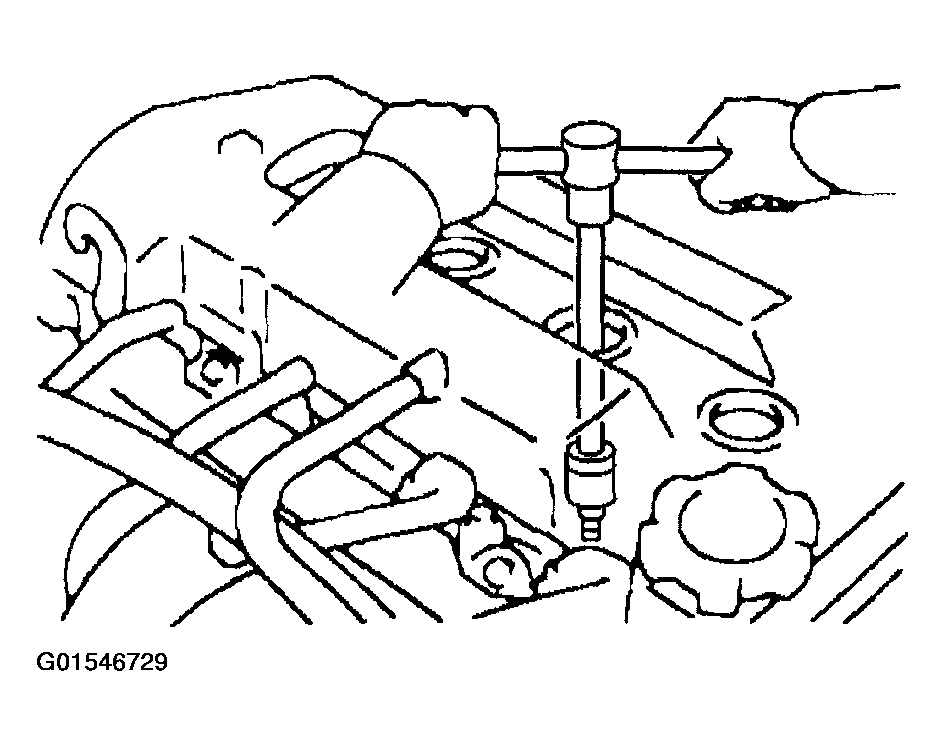

   Fig 3: Installing Spark Plugs

   Courtesy of GENERAL MOTORS CORP.
6. Install the ignition coils (1, 2, 3, 4).

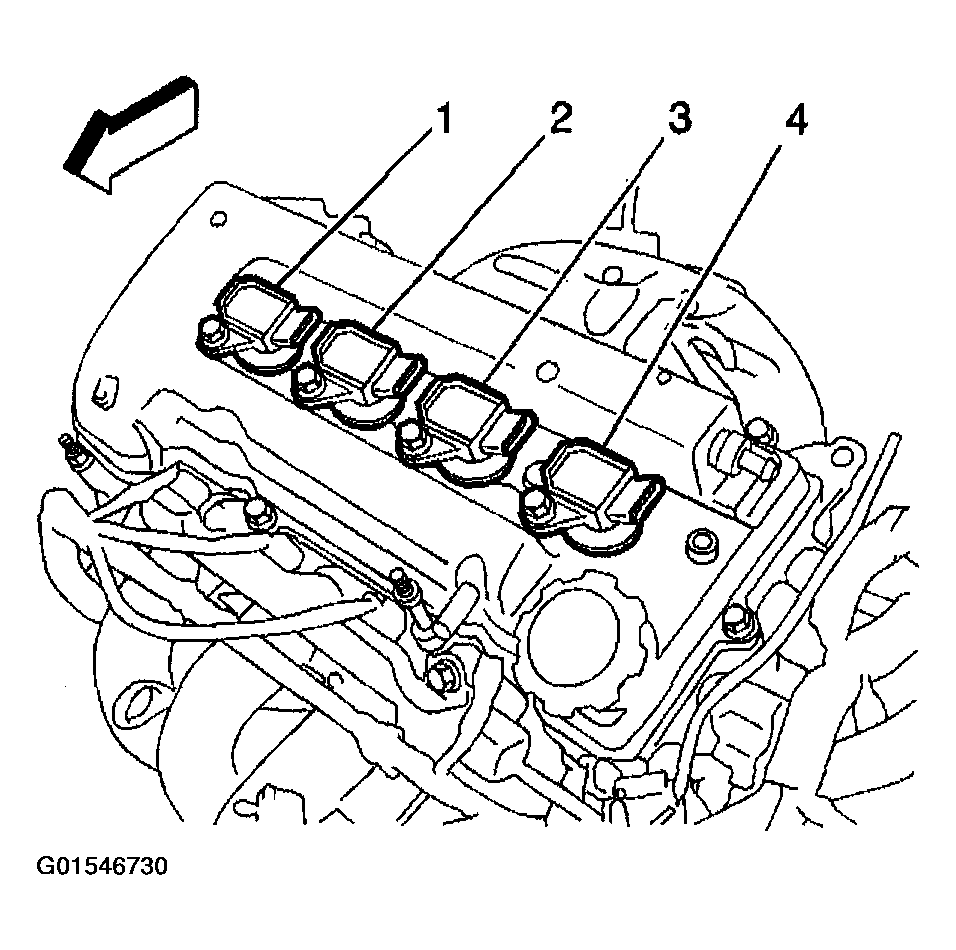

   Fig 4: Installing Ignition Coils

   Courtesy of GENERAL MOTORS CORP.
7. Position the engine cover on the engine (1).

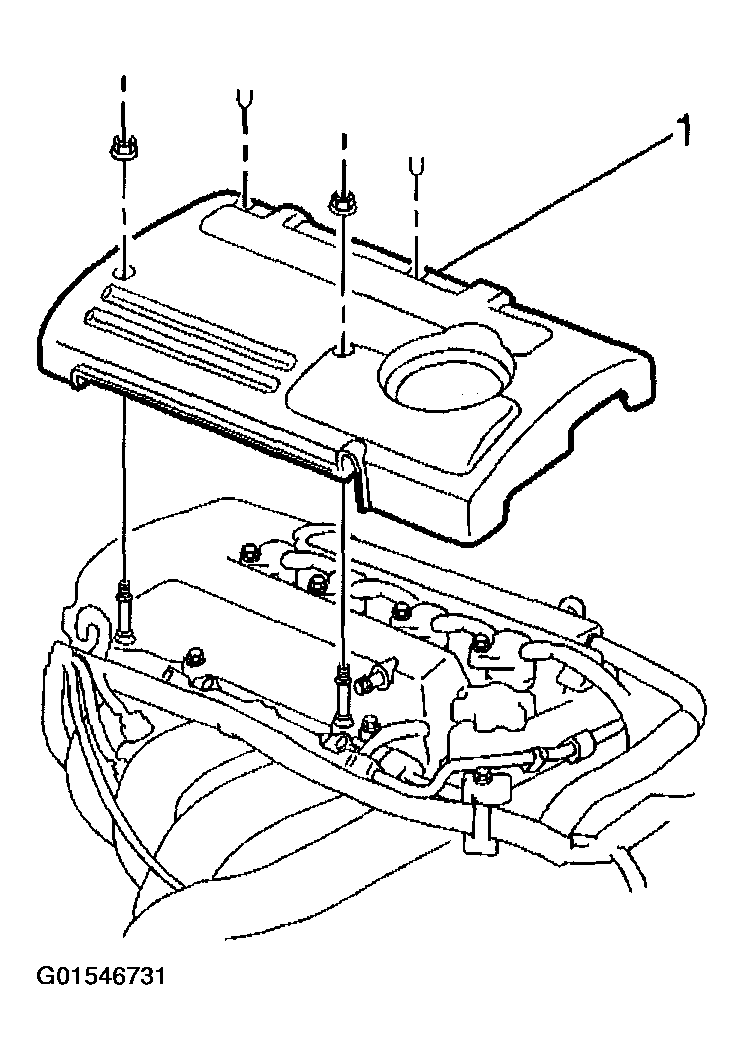

   Fig 5: Installing Engine Cover

   Courtesy of GENERAL MOTORS CORP.
8. Install the 2 engine cover plastic retainers.
9. Install the 2 engine cover fasteners.
10. Connect the negative battery cable.

Tighten

Tighten the battery cable bolt to 15 N.m (11 lb ft).
