Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the PCV valve hose clamp (2).
  2. Remove the PCV valve hose (3) from the PCV valve
  3. Remove the PCV valve (1) from the cylinder head.

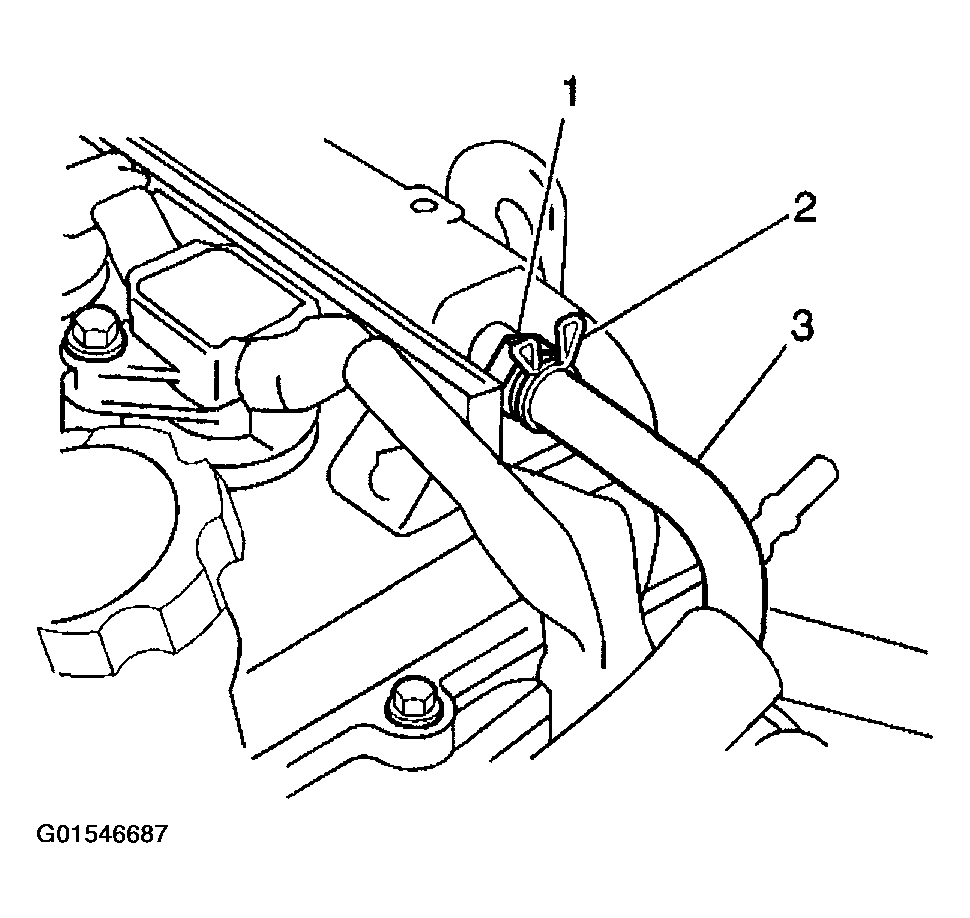

    Fig 1: Locating PCV Valve
    G01546687Courtesy of GENERAL MOTORS CORP.
