Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chain. Refer to TIMING CHAIN AND SPROCKETS REPLACEMENT  .
  2. Remove the five oil pump bolts.
  3. Remove the oil pump.
  4. Remove the oil pump gasket.

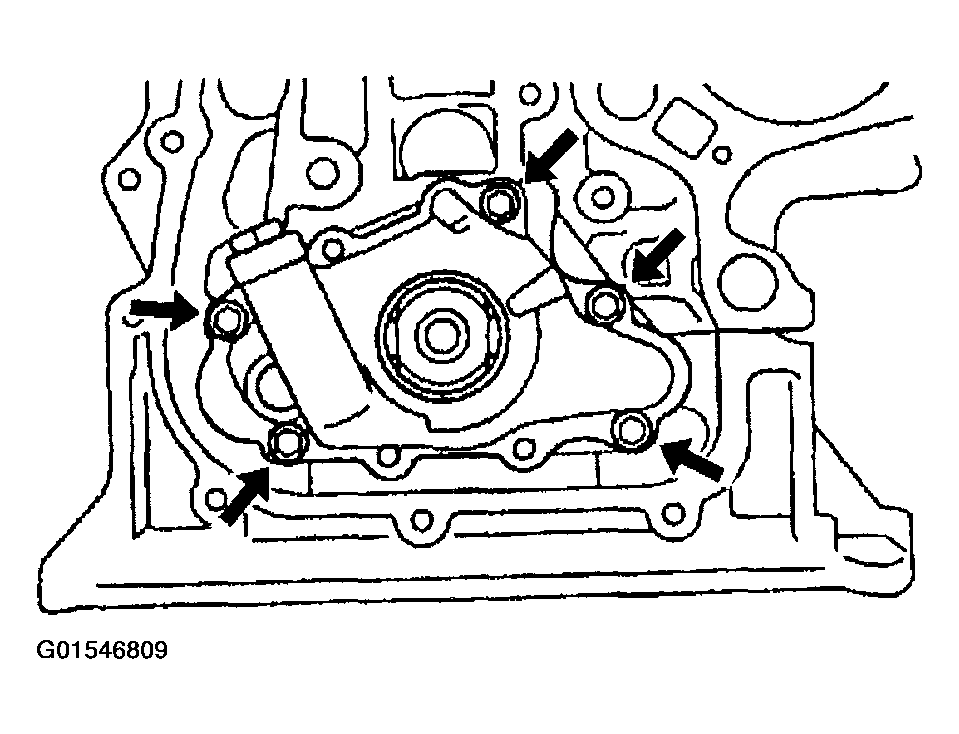

    Fig 1: Removing Oil Pump
    G01546809Courtesy of GENERAL MOTORS CORP.
