Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a continuous bead of silicon sealant GM P/N 12346240 (Canadian P/N 10953493) or an equivalent, to the engine oil pan mating surface.

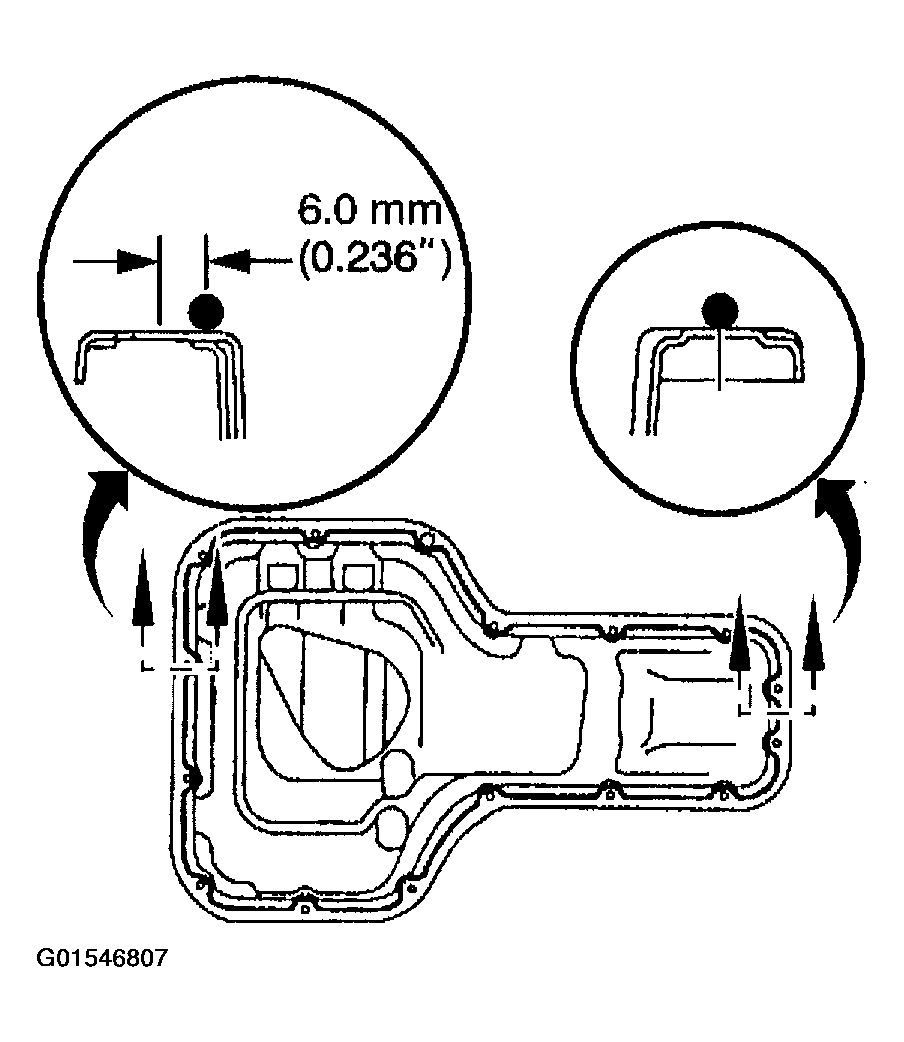

    Fig 1: Applying Continuous Bead Of Silicon Sealant
    G01546807Courtesy of GENERAL MOTORS CORP.
  2. Install the engine oil pan.
    NOTE: Refer to FASTENER NOTICE .
  3. Use the following components to secure the engine oil pan:
    • 12 bolts (2, 4-13, 15)
    • 4 nuts (1, 3, 14, 16)

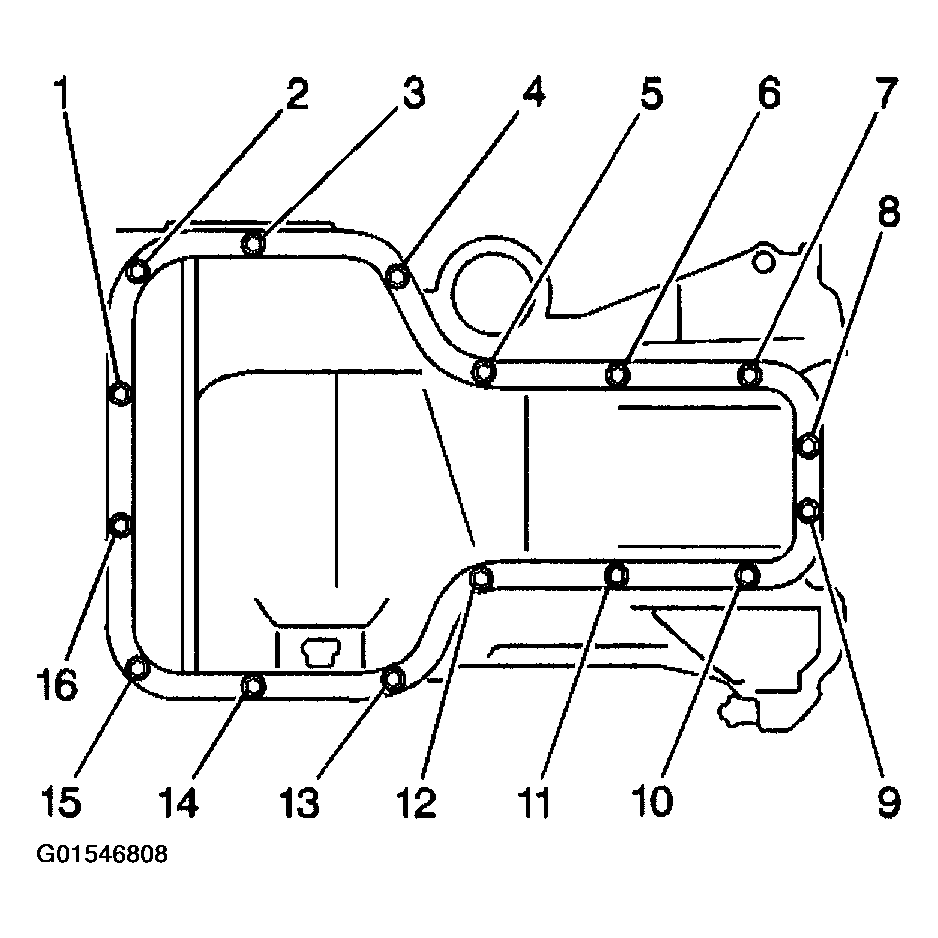

      • Fig 2: Installing Bolts And Nuts
      G01546808Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the engine oil pan bolts and the nuts to 9 N.m (80 lb in).

  4. Install flywheel cover.
  5. Install the left side engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE - LEFT in Body Front End.
  6. Install the engine oil drain plug and the gasket.

    Tighten

    Tighten the engine oil drain plug to 35 N.m (26 lb ft).

  7. Lower the vehicle.
  8. Fill the engine oil.

    Refer to Fluid and Lubricant Recommendations  in MAINTENANCE.

  9. Inspect the oil pressure.
