Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine cover (1) to the engine.
  2. Install the two engine cover plastic retainers.
  3. Install the two engine cover fasteners.

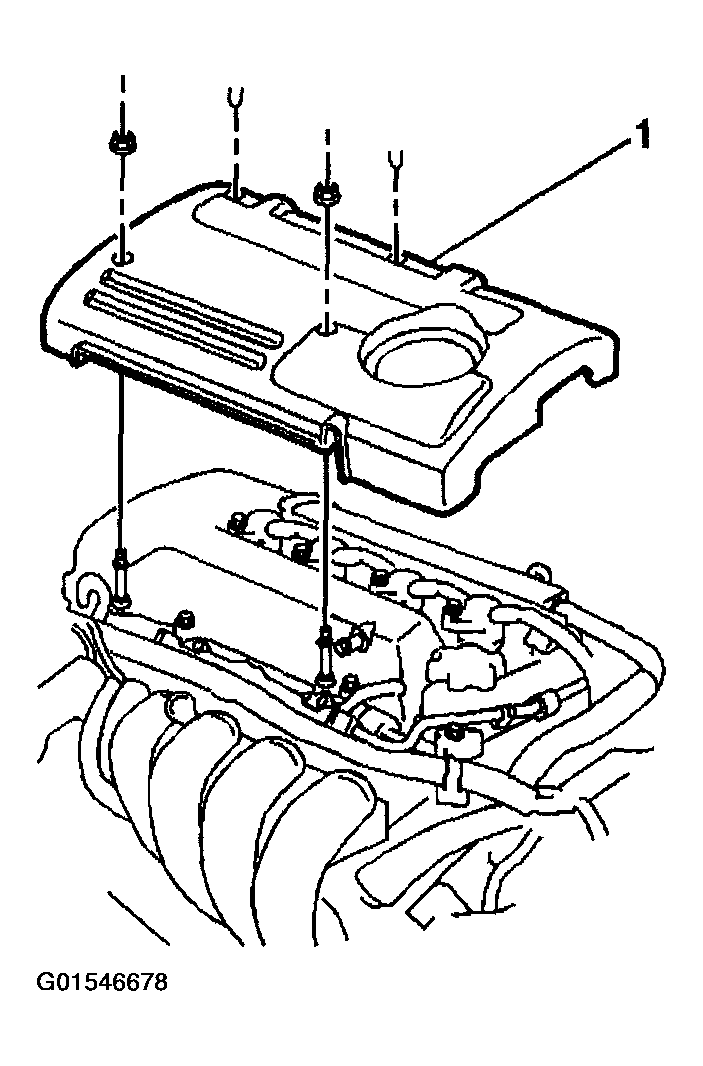

    Fig 1: Installing Engine Cover
    G01546678Courtesy of GENERAL MOTORS CORP.
