Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the drive belt tensioner.

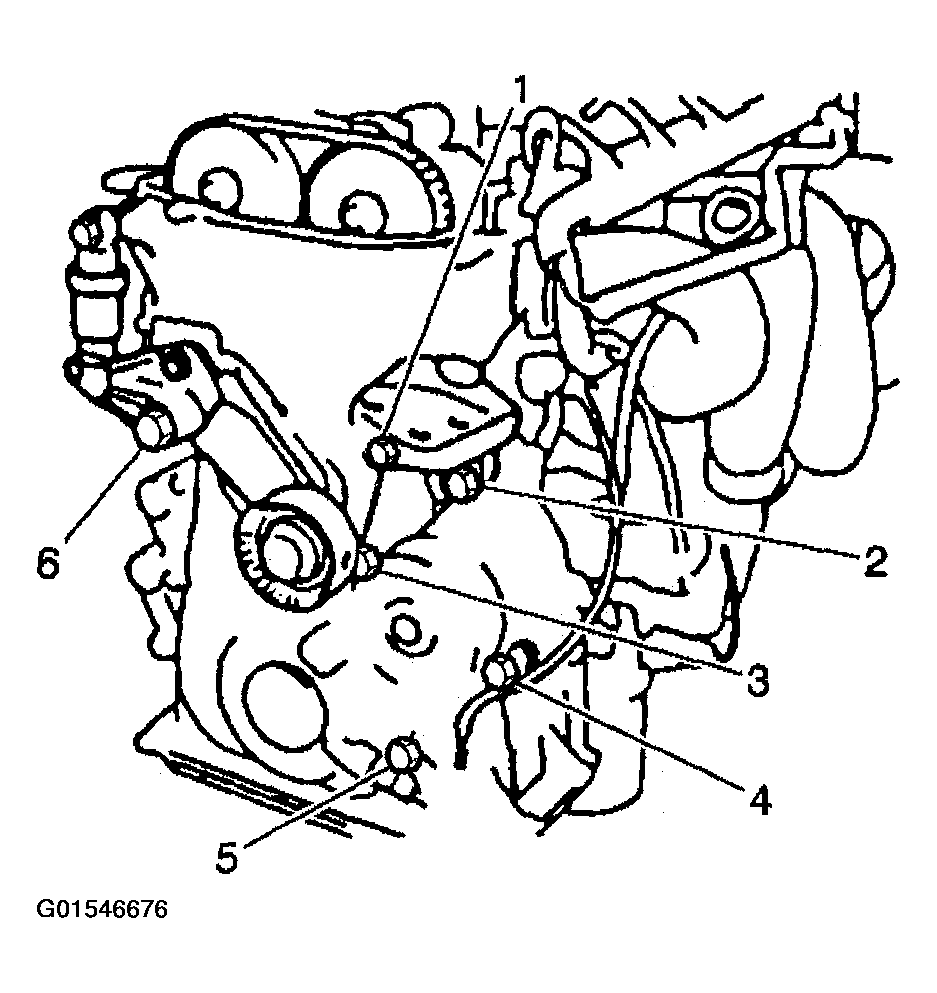

Fig 1: Installing Drive Belt Tensioner
Courtesy of GENERAL MOTORS CORP.

Tighten
- Tighten the lower tensioner bolt (6) to 69 N.m (51 lb ft).
- Tighten the upper tensioner nut to 29 N.m (21 lb ft).
Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT .
Connect the negative battery cable.
Tighten

Tighten the bolt to 15 N.m (11 lb ft).
