Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 engine cover fasteners.
  2. Remove the 2 engine cover plastic retainers.
  3. Remove the engine cover (1) from the engine.

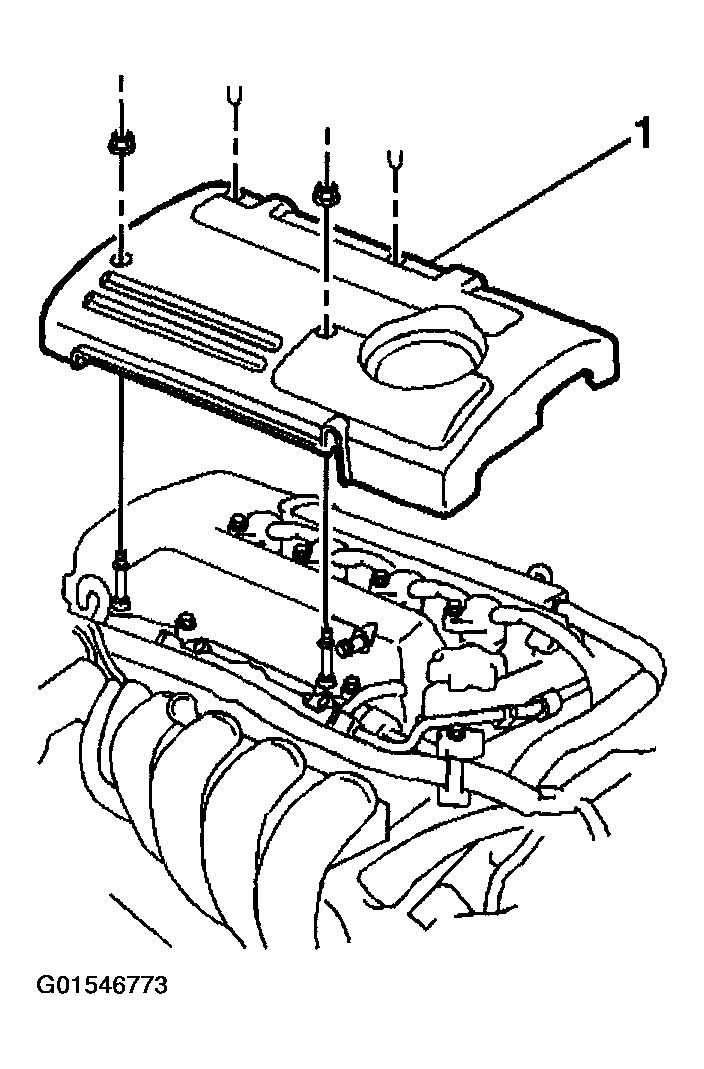

    Fig 1: Removing Engine Cover
    G01546773Courtesy of GENERAL MOTORS CORP.
  4. Remove the ignition coils (1, 2, 3, 4).
    Fig 2: Removing Ignition Coils
    G01546774Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the following components from the cylinder head cover:
    • The hose clamps
    • The two positive crankcase ventilation (PCV) hoses
  6. Remove the following components from the cylinder head:
    • The nine bolts
    • The two nuts
    • The two seal washers
    • The cylinder head cover (1), with the gasket

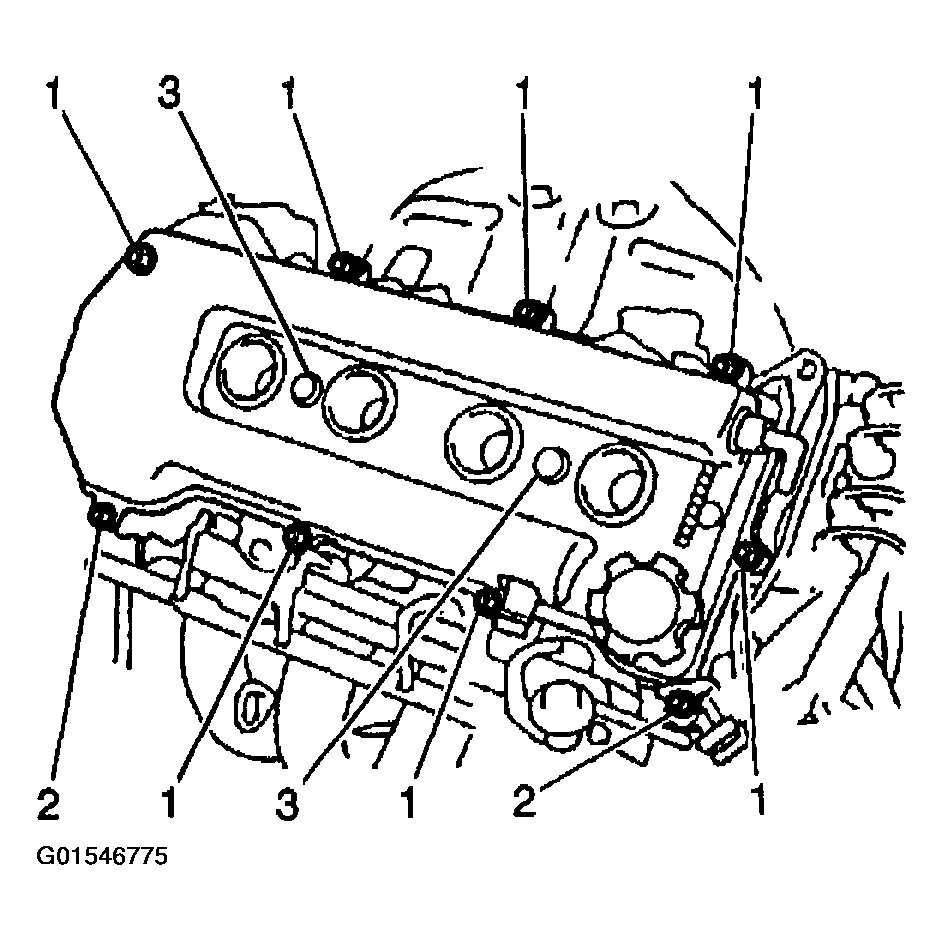

      Fig 3: Removing Cylinder Head Cover
      G01546775Courtesy of GENERAL MOTORS CORP.
