Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable.
  2. Remove the accessory drive belt. Refer to DRIVE BELT REPLACEMENT  .
  3. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  4. Remove the right splash shield.
  5. Remove the crankshaft pulley retaining bolt using J 8614-01  to prevent crankshaft rotation when loosening the bolt.

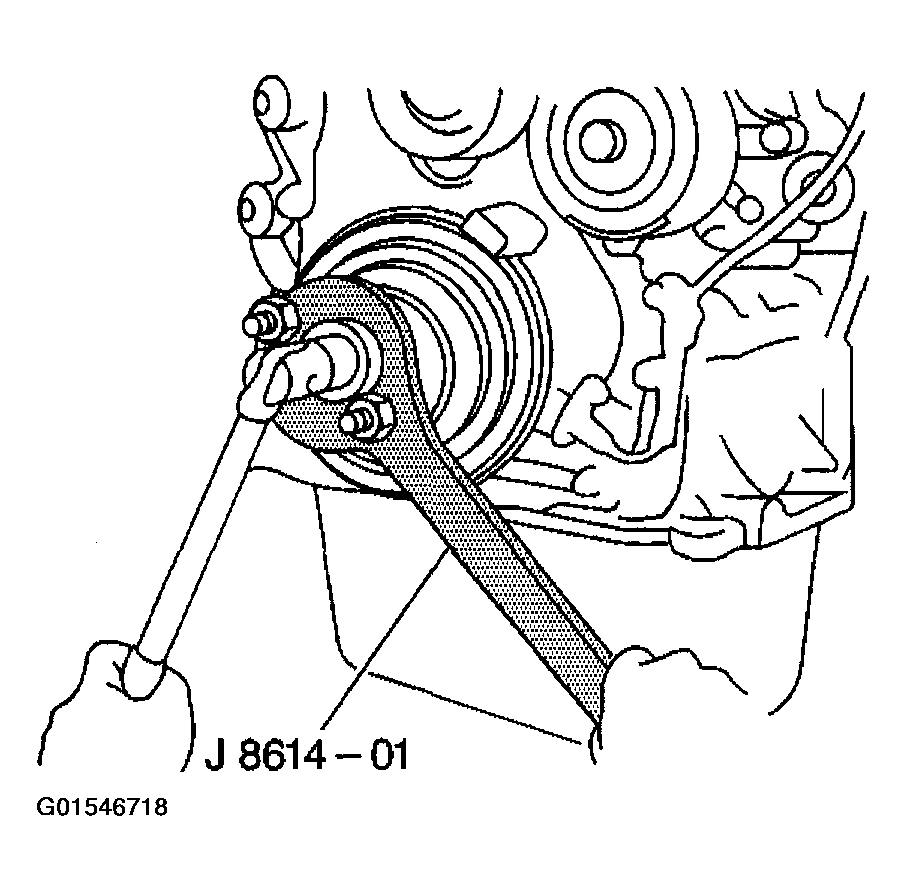

    Fig 1: Removing Crankshaft Pulley
    G01546718Courtesy of GENERAL MOTORS CORP.
