Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the front seal and the sealing surface of the crankshaft pulley with Chassis Grease GM P/N 1051344 (Canadian P/N 993037) or equivalent.
  2. Install the crankshaft pulley onto the crankshaft indexing keyway.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the crankshaft pulley retaining bolt using J 8614-01  to prevent crankshaft rotation when tightening the bolt.

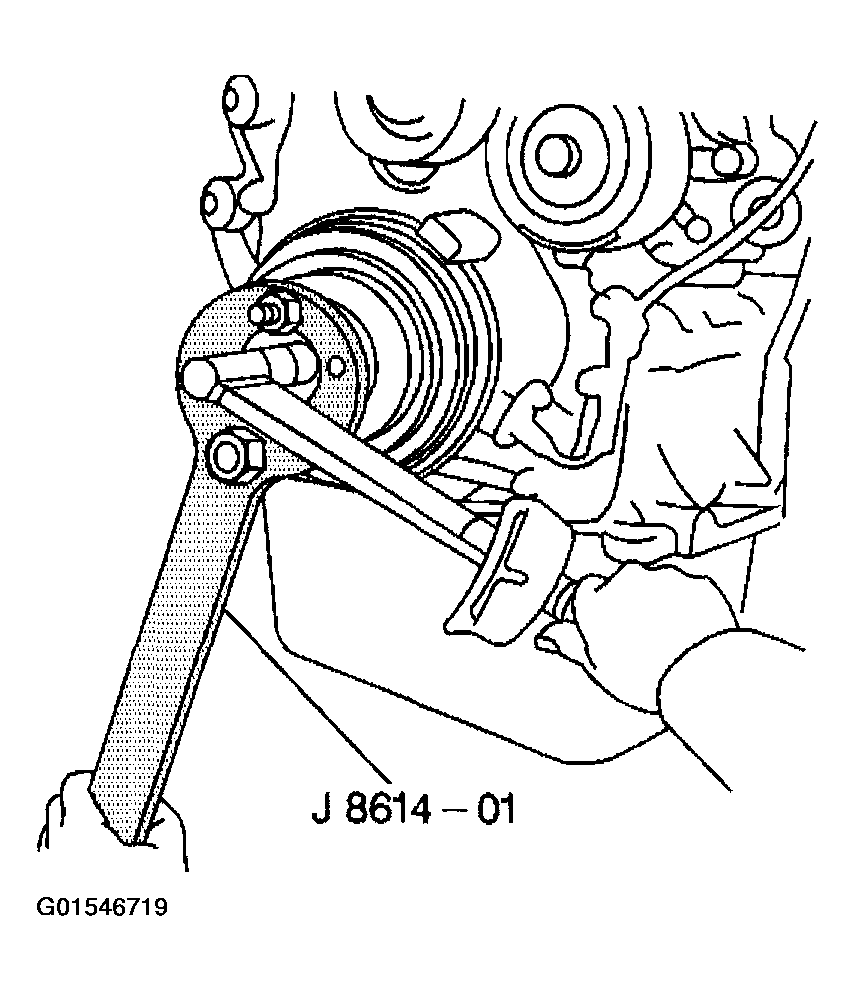

    Fig 1: Installing Crankshaft Pulley
    G01546719Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the bolt to 142 N.m (105 lb ft).

  4. Install the right splash shield.
  5. Lower the vehicle.
  6. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT  .
  7. Connect the negative battery cable.

    Tighten

    Tighten the battery cable bolt to 15 N.m (11 lb ft).
