Water Pump Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate and install a new O-ring between the water pump and the timing chain housing.
  2. Install the water pump to the engine.
    NOTE: Refer to FASTENER NOTICE .
  3. Use 3 bolts (1,2) in order to secure the water pump.

    Tighten

    Tighten the water pump bolts to 12 N.m (106 lb in).

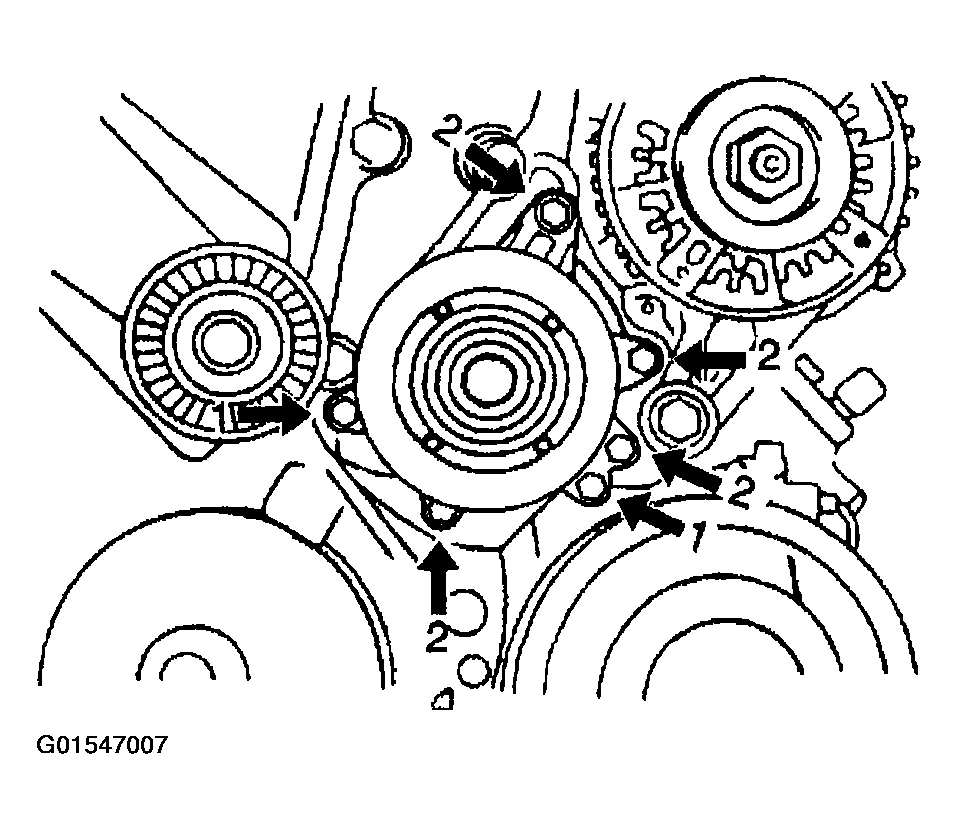

    Fig 1: Installing Water Pump
    G01547007Courtesy of GENERAL MOTORS CORP.
