Timing Chain and Sprockets Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following components:
    • The timing chain dampener bolts (1)
    • The timing chain dampener
    • The timing chain shoe bolts
    • The timing chain shoe

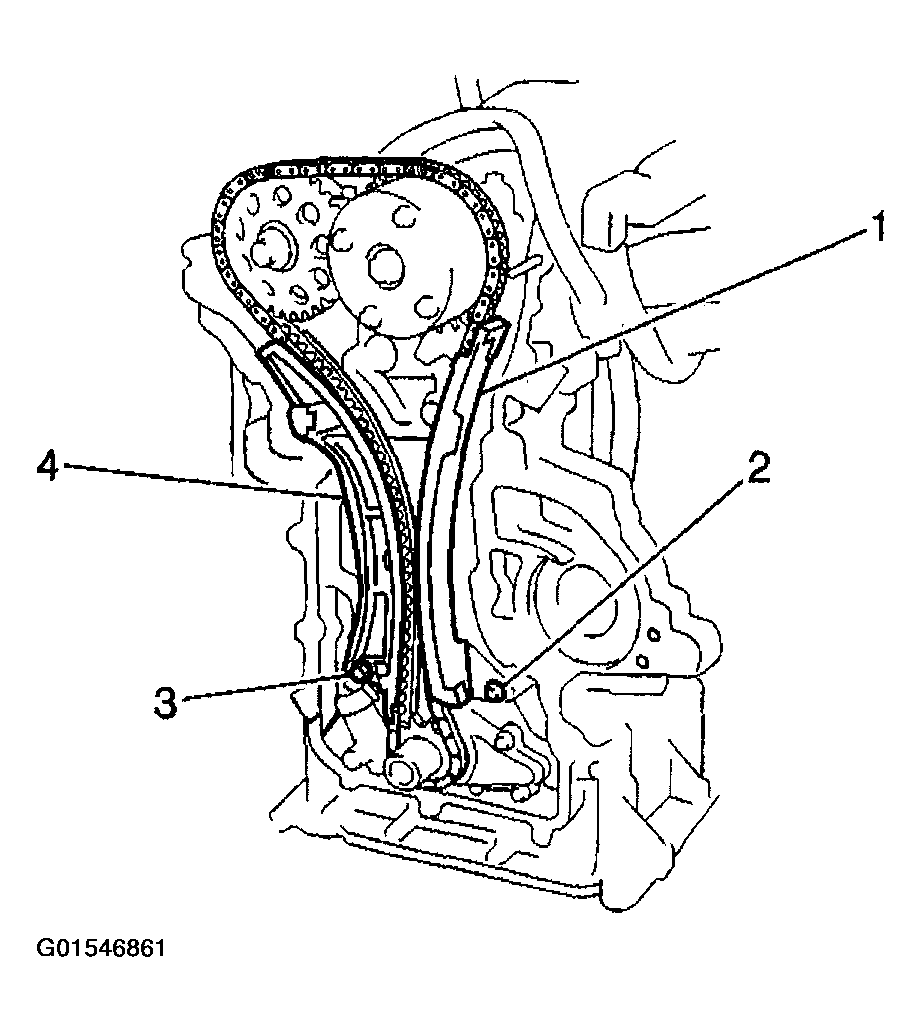

      Fig 1: Removing Timing Chain Dampener & Shoe
      G01546861Courtesy of GENERAL MOTORS CORP.
  2. Remove the following components simultaneously:
    • The crankshaft sprocket
    • The timing chain

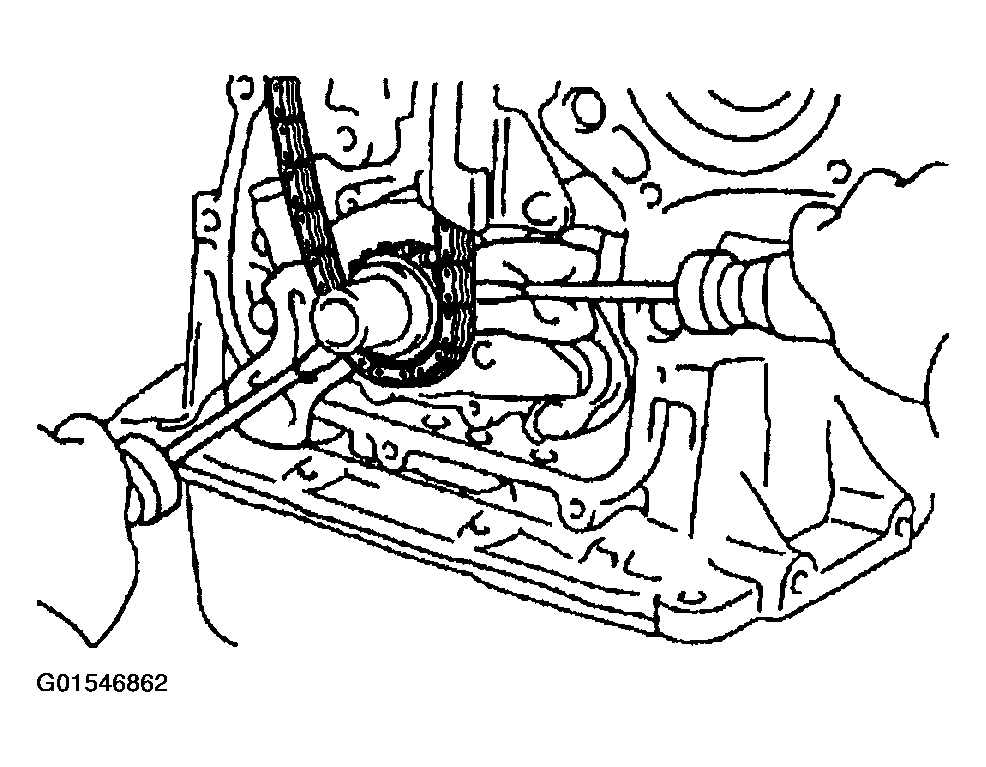

      Fig 2: Removing Crankshaft Sprocket And Timing Chain
      G01546862Courtesy of GENERAL MOTORS CORP.
