Timing Chain Tensioner Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chain tensioner nuts (1,2).
  2. Remove the timing chain tensioner.

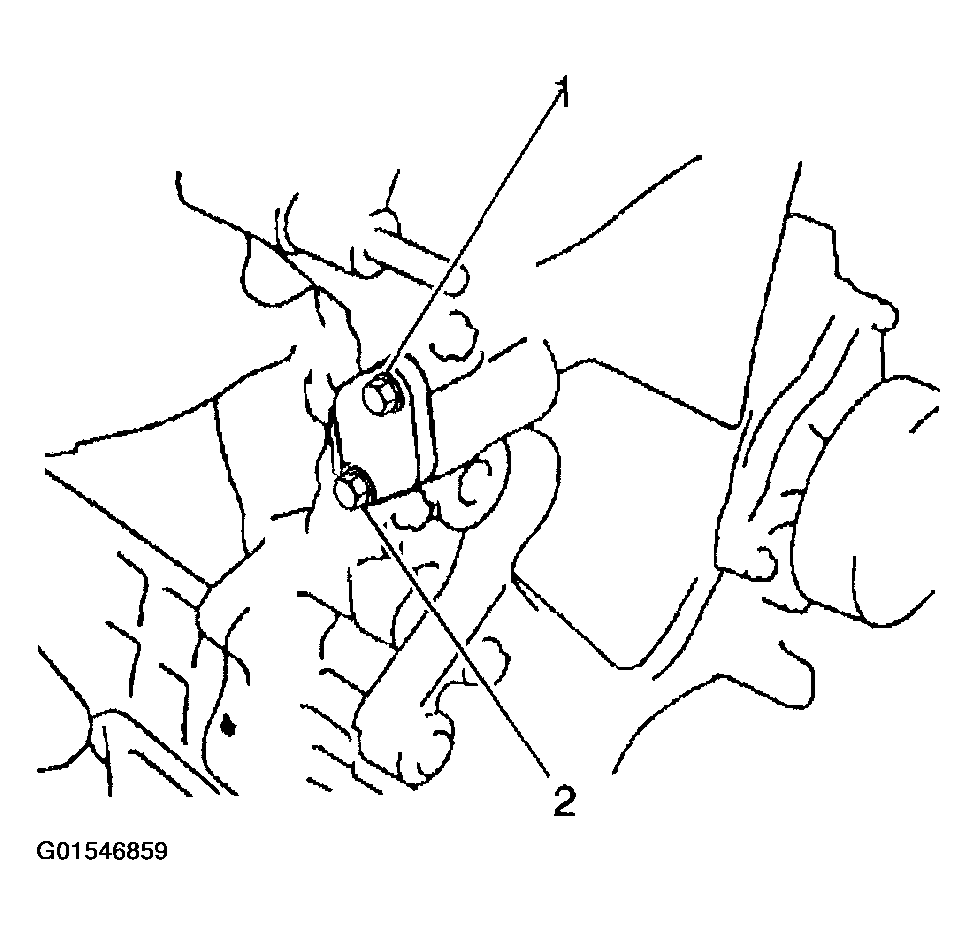

    Fig 1: Removing Timing Chain Tensioner
    G01546859Courtesy of GENERAL MOTORS CORP.
