Oil Pump Installation
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

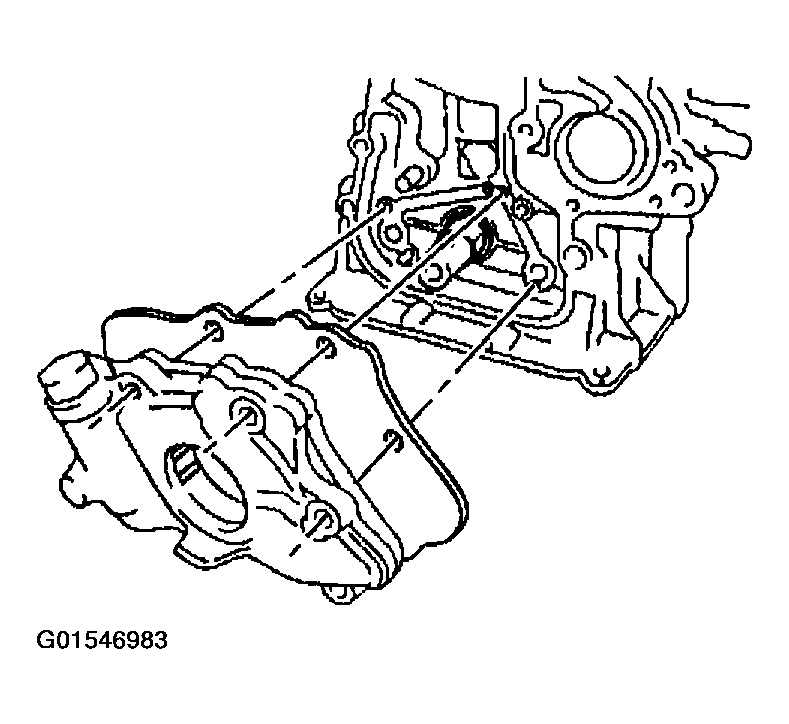

Important: Engage the spline teeth of the oil pump drive rotor with the large teeth of the crankshaft.
- Install the oil pump. Use a new oil pump gasket.NOTE: Refer to FASTENER NOTICE .
- Use the 5 oil pump bolts in order to secure the oil pump.
Tighten
Tighten the oil pump bolts to 9 N.m (80 lb in).
