Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use new engine oil in order to coat the new guide tube seal.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the new guide tube seal (1) to the guide tube. Secure the guide tube to the cylinder block using one bolt (3).

    Tighten

    Tighten the bolt to 14 N.m (10 lb ft).

  3. Install the oil level indicator to the guide tube.

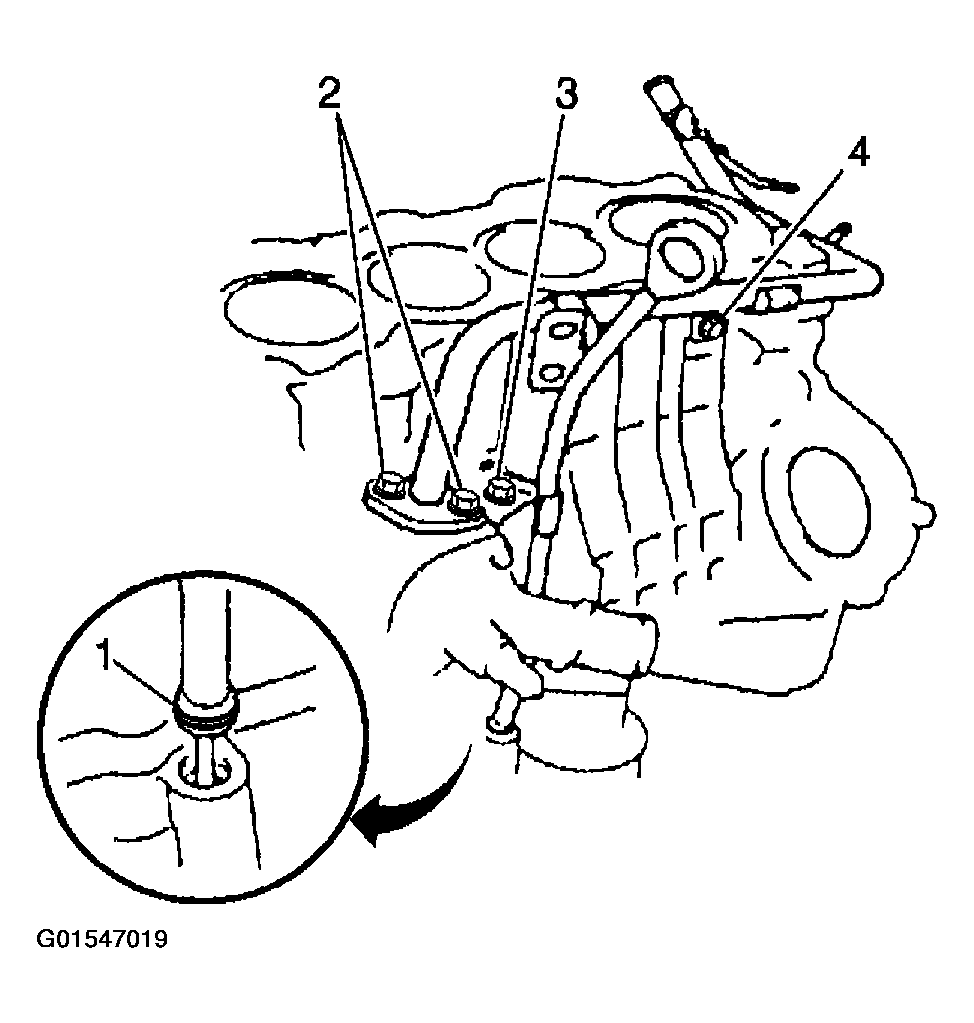

    Fig 1: Installing Oil Level Indicator & Tube
    G01547019Courtesy of GENERAL MOTORS CORP.
