Intake Manifold Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the EVAP hose for the ORVR.
  2. Disconnect the brake booster vacuum hose.
  3. Remove the oil dipstick guide bolt.
  4. Remove two bolts and one nut from the intake manifold bracket.
  5. Remove the intake manifold bolts and nuts.
  6. Remove two bolts from the alternator bracket.
  7. Remove the intake manifold and gasket.

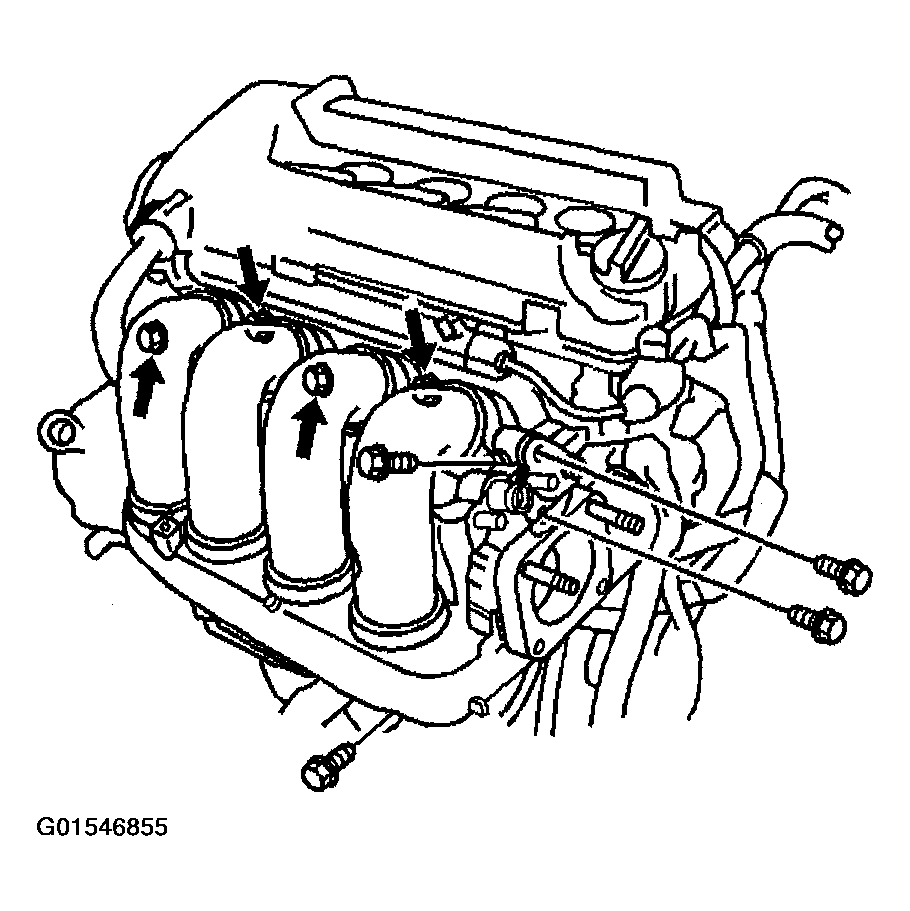

    Fig 1: Removing Intake Manifold
    G01546855Courtesy of GENERAL MOTORS CORP.
