Intake Camshaft and Lifter Removal

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake camshaft sprocket bolt.

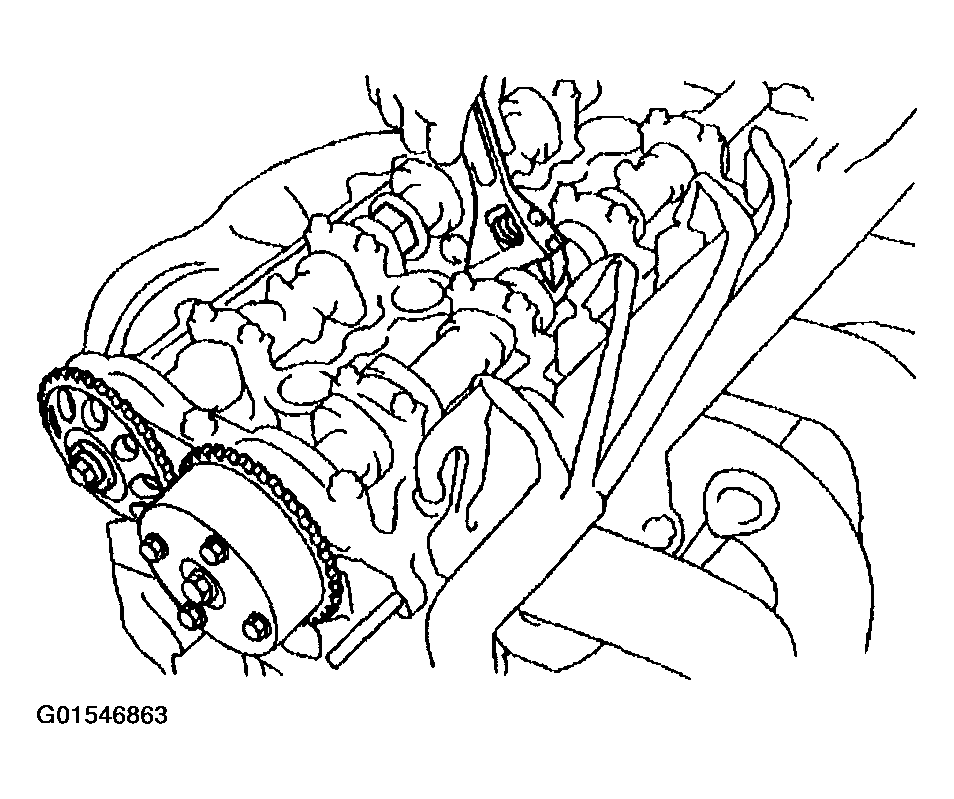

    Fig 1: Removing Intake Camshaft Sprocket Bolt
    G01546863Courtesy of GENERAL MOTORS CORP.
  2. Remove the cam shaft sprocket.

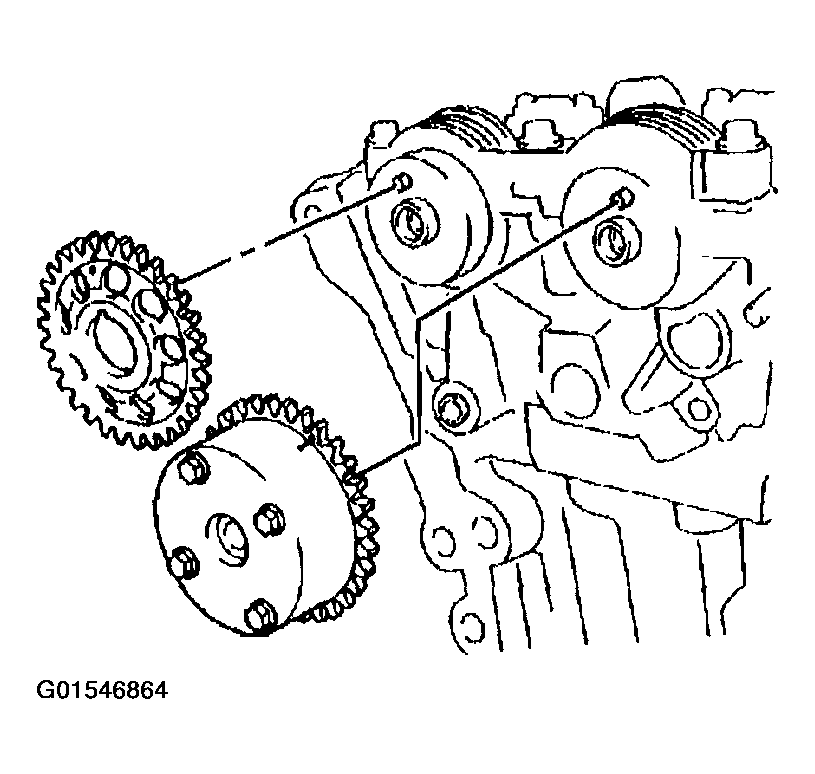

    Fig 2: Removing Cam Shaft Sprocket
    G01546864Courtesy of GENERAL MOTORS CORP.
  3. Remove the intake camshaft bearing cap bolts in sequence. Starting at the ends and working toward the center of the camshaft.
  4. Remove the front camshaft bearing cap (5).
  5. Remove the intake camshaft from the cylinder head.

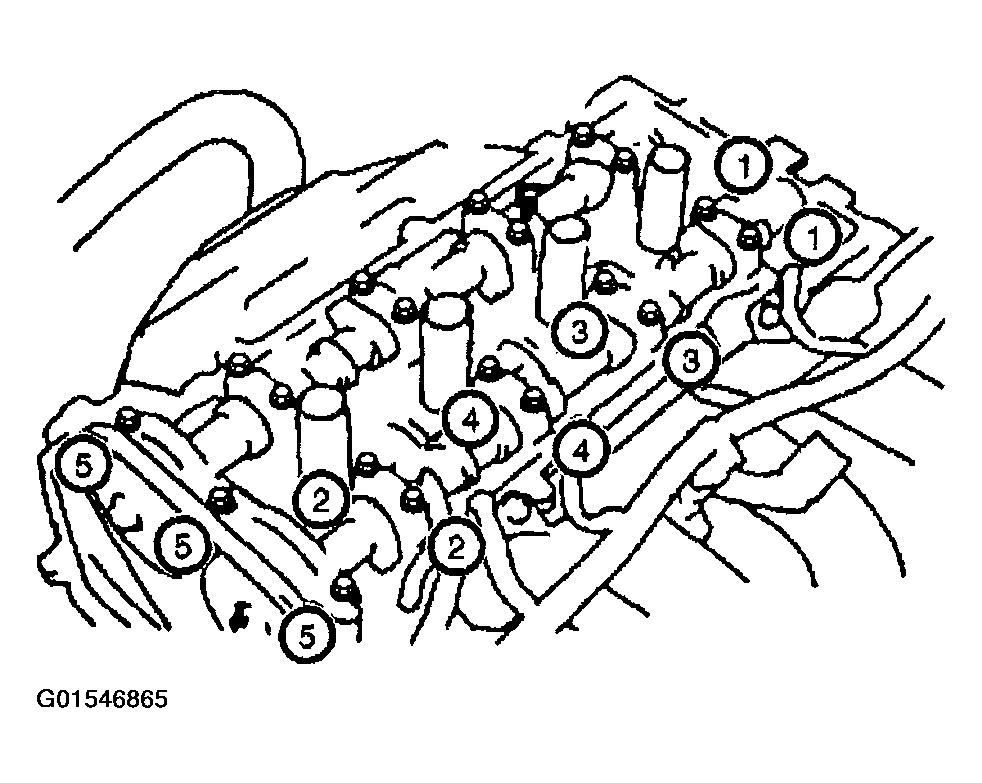

    Fig 3: Identifying Intake Camshaft Bearing Cap Bolts Tightening Sequence
    G01546865Courtesy of GENERAL MOTORS CORP.
