Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Important: The wheel speed sensor is serviceable only as an assembly. Do NOT attempt to service the sensor harness pigtail.

Disconnect the electrical connector (6) from the wheel speed sensor.

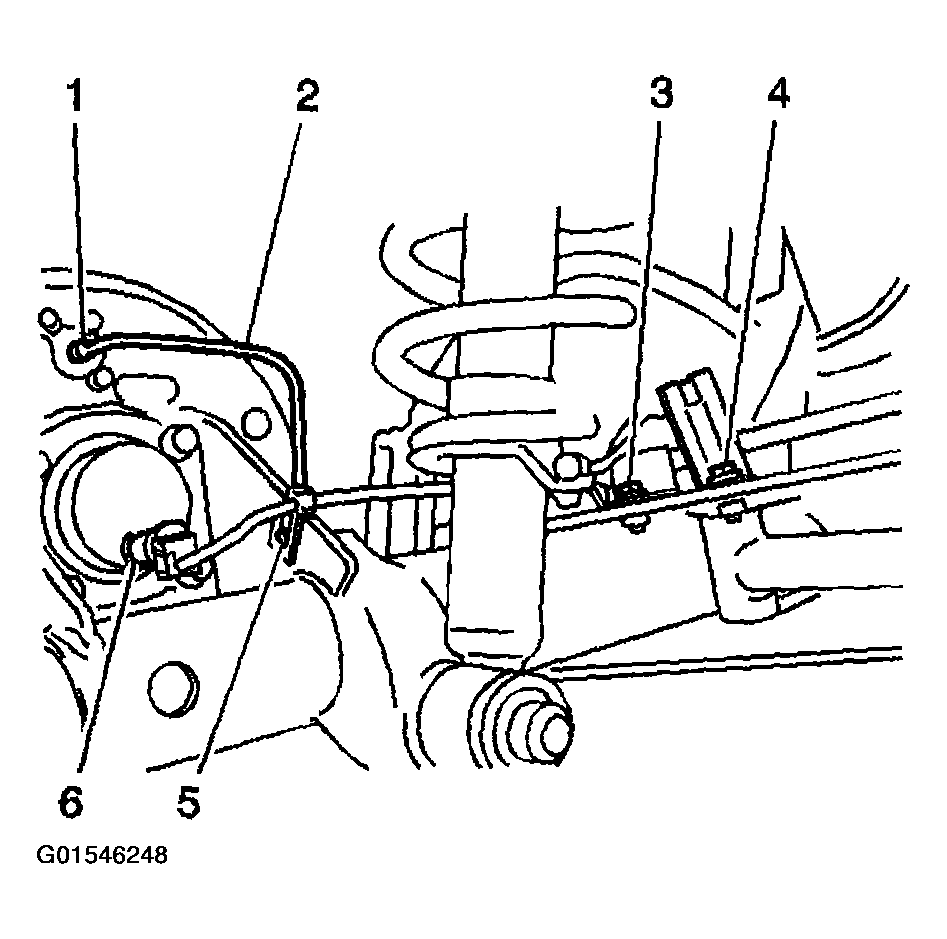

Fig 1: Disconnecting Electrical Connector From Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Remove the rear axle hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR (FWD) or WHEEL BEARING/HUB REPLACEMENT - REAR (AWD) in Rear Suspension.
Remove the wheel speed sensor from the rear axle hub.

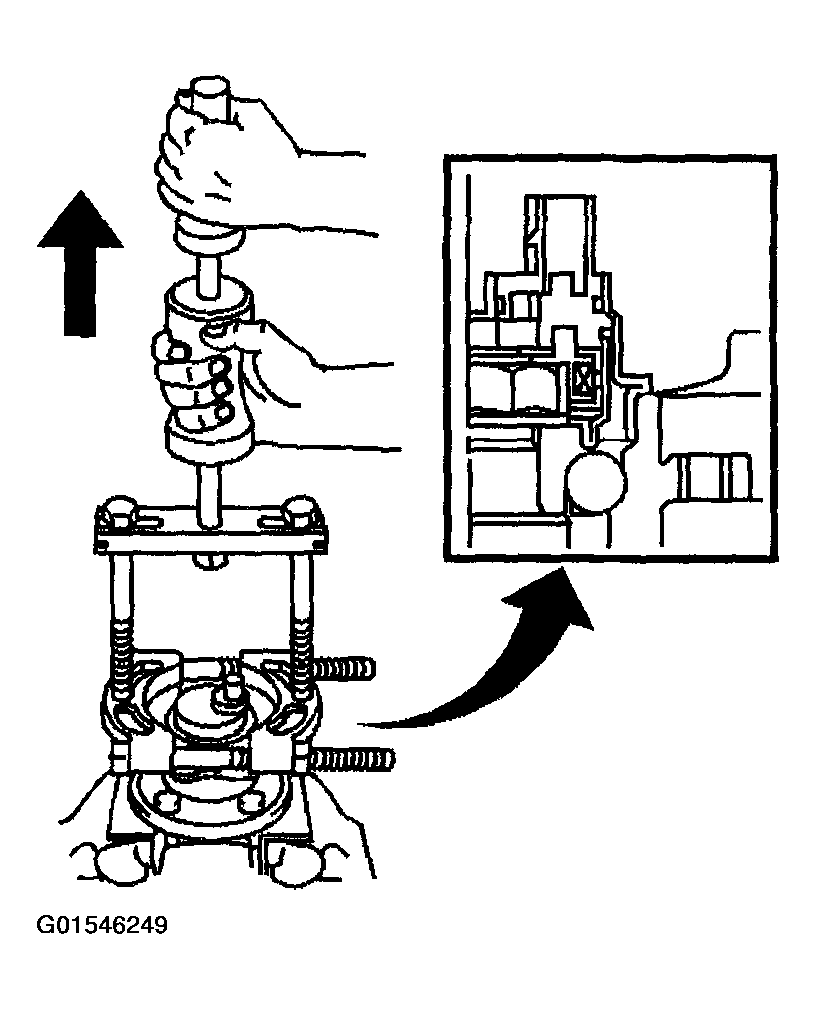

Fig 2: Removing Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.
