Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the wheel speed sensor to rear wheel hub.

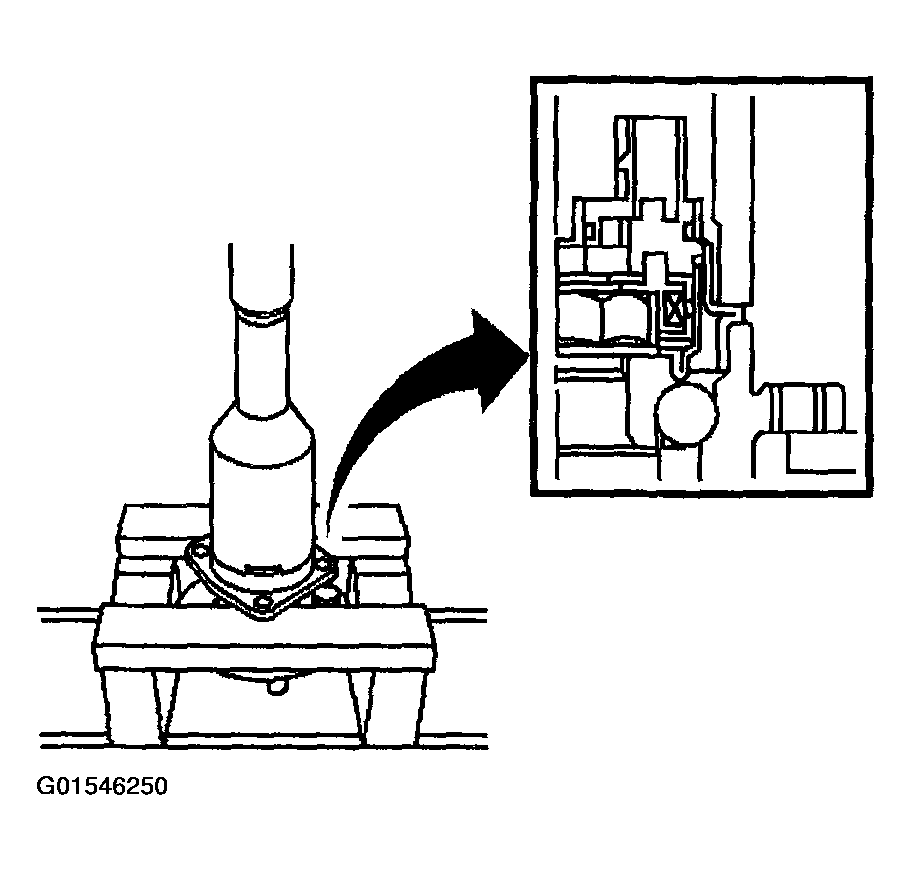

Fig 1: Installing Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
Install the rear axle hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR (FWD) or WHEEL BEARING/HUB REPLACEMENT - REAR (AWD) in Rear Suspension.
Connect the wheel speed sensor electrical connector (6).

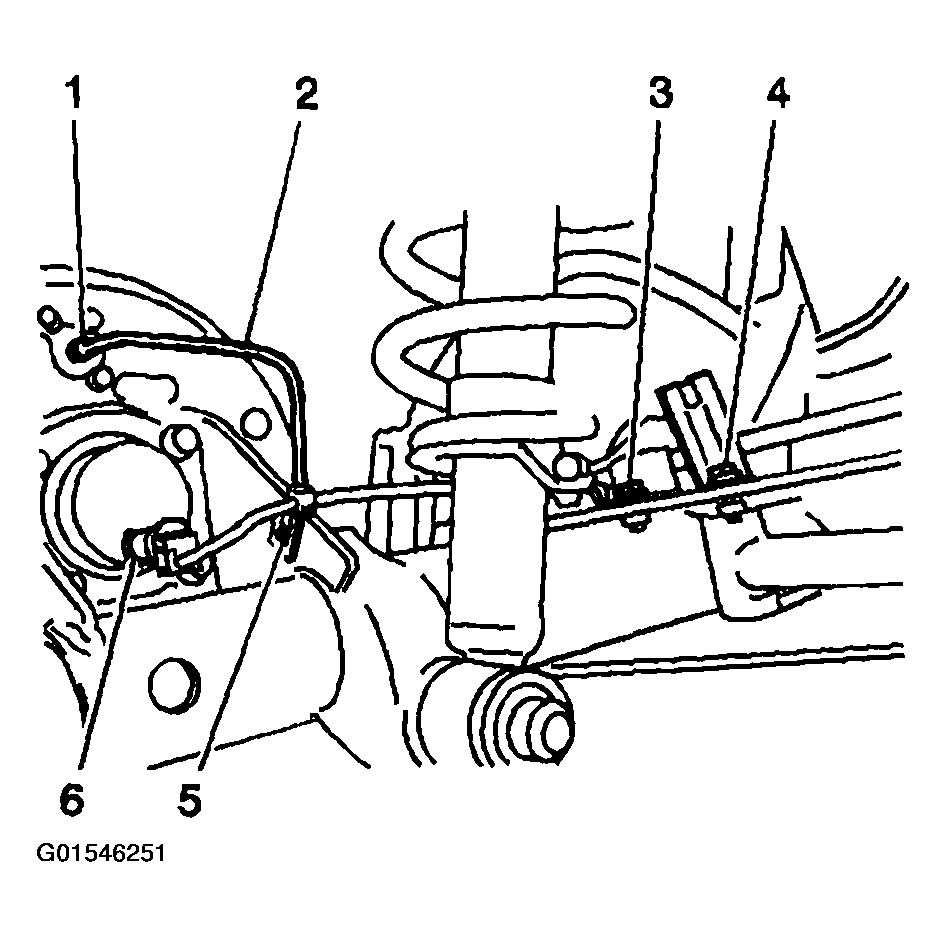

Fig 2: Connecting Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Perform DIAGNOSTIC SYSTEM CHECK - ABS .
