Test Description

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 2. This step inspects the Stop Lamp Switch status with the switch OFF.
  2. 3. This step inspects the Stop Lamp Switch status with the switch applied.
  3. 4. This step ensures proper adjustment of the Stop Lamp Switch.

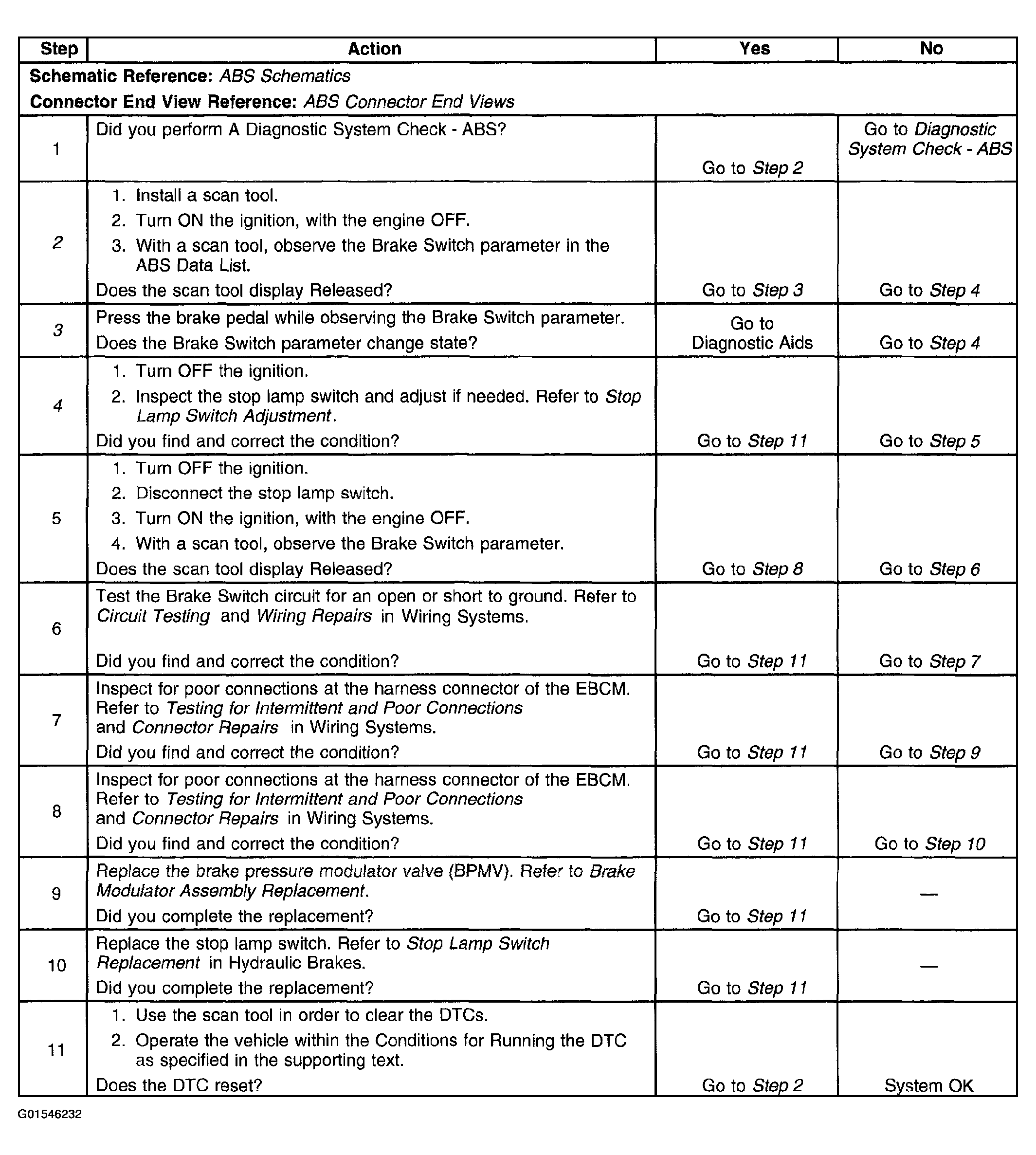

Fig 1: Diagnostic System Check - DTC C1249
G01546232Courtesy of GENERAL MOTORS CORP.
