Test Description

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. This step determines if the DTC is current.

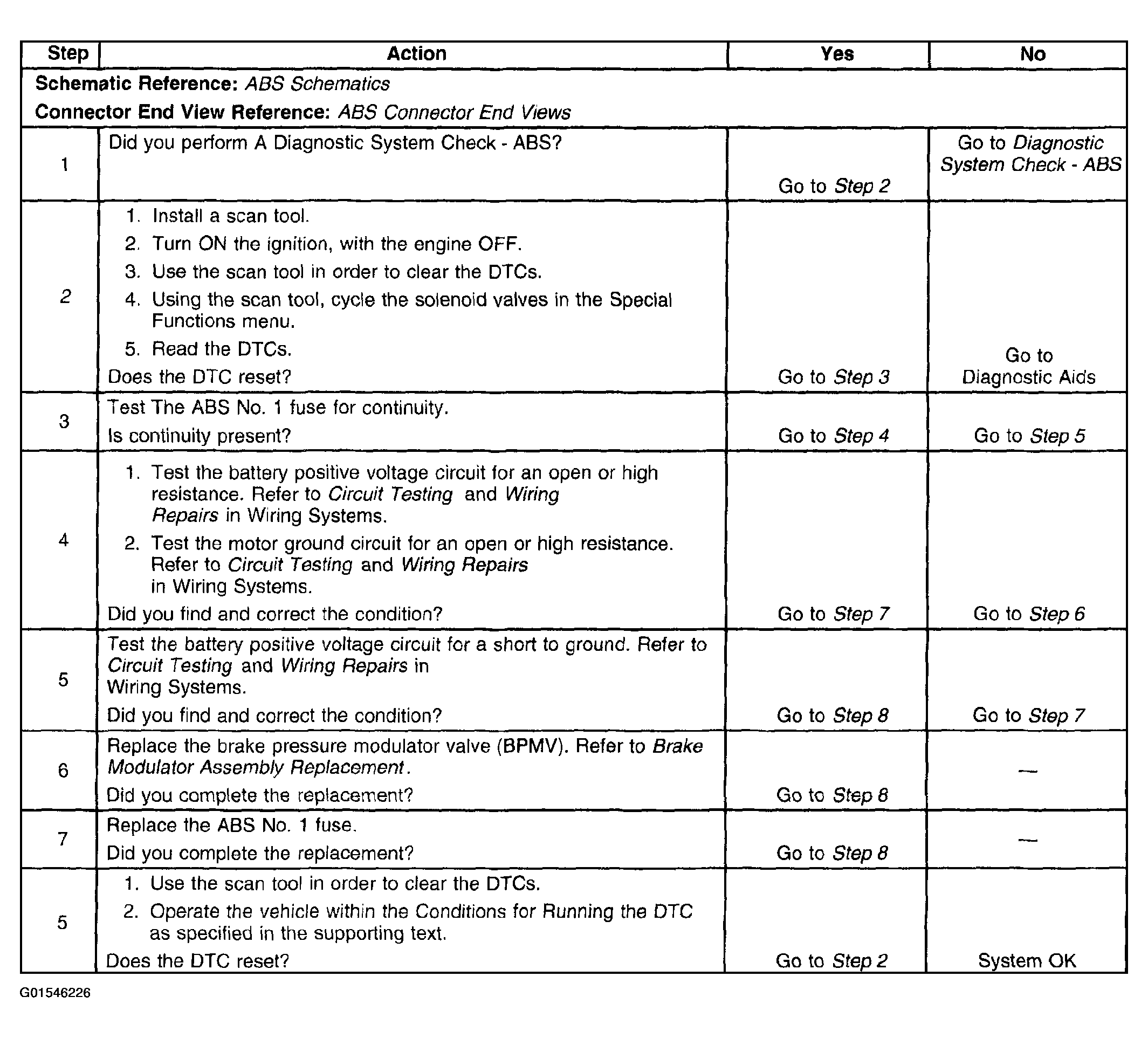

Fig 1: Diagnostic System Check - DTC C0278
G01546226Courtesy of GENERAL MOTORS CORP.
