Test Description

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests the wheel speed sensor for the proper resistance value.

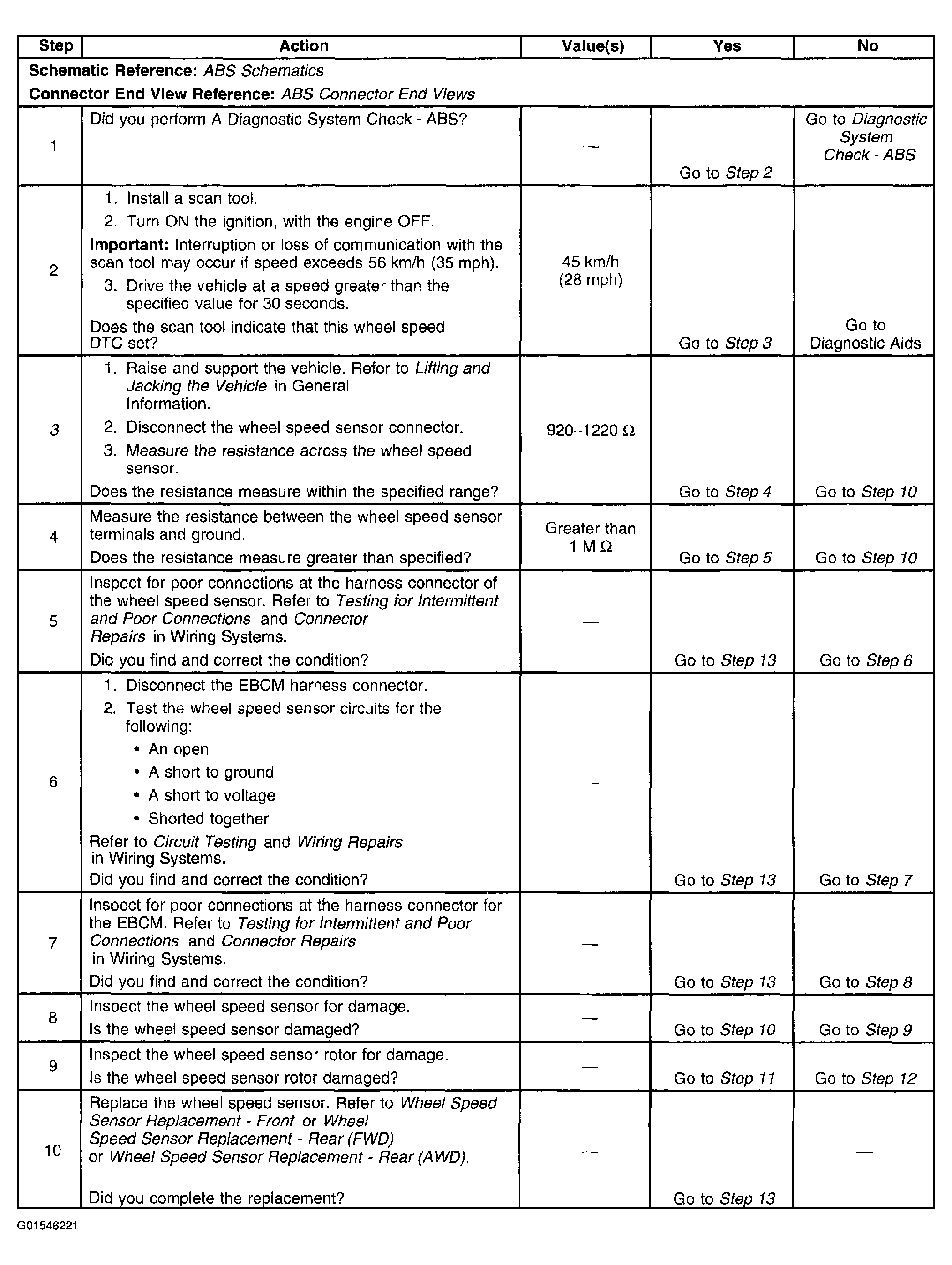

Fig 1: Diagnostic System Check - DTC C0200-C0215, C1235-C1239, or C1271-C1278 (Step 1-10)
G01546221Courtesy of GENERAL MOTORS CORP.

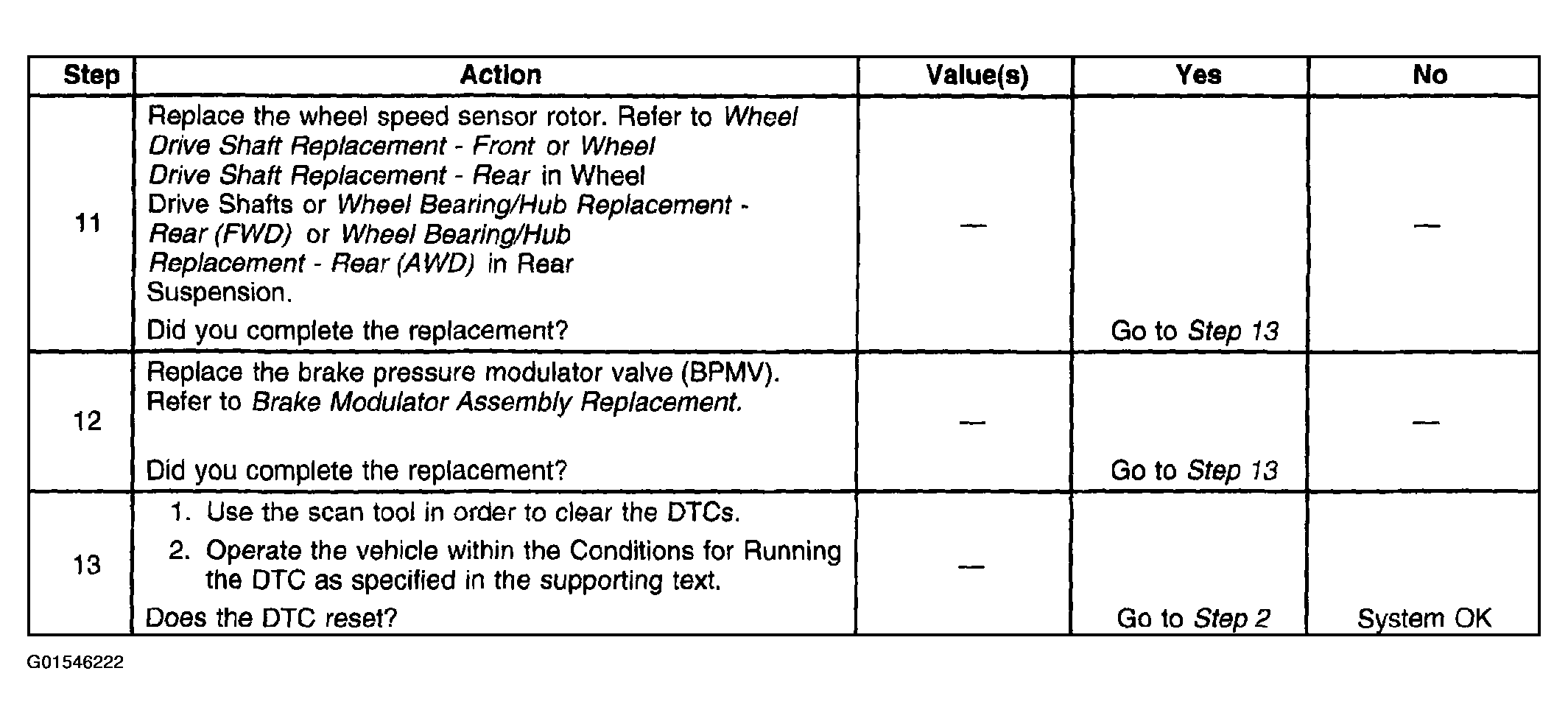

Fig 2: Diagnostic System Check - DTC C0200-C0215, C1235-C1239, or C1271-C1278 (Step 11-13)
G01546222Courtesy of GENERAL MOTORS CORP.
