Test Description

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 3. Determines if the malfunction is caused by an internal EBCM malfunction.

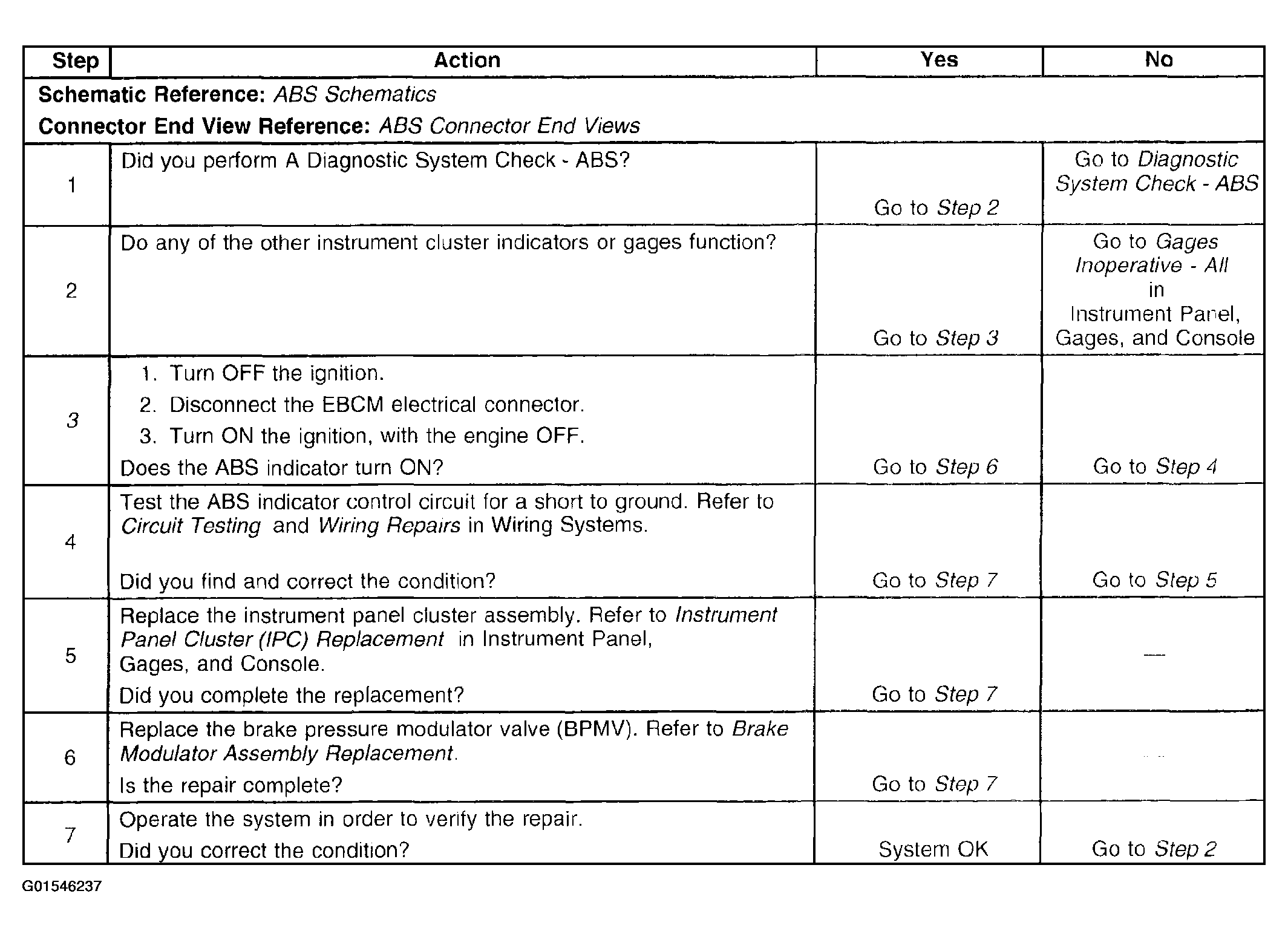

Fig 1: Diagnostic System Check - ABS Indicator Inoperative
G01546237Courtesy of GENERAL MOTORS CORP.
