WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

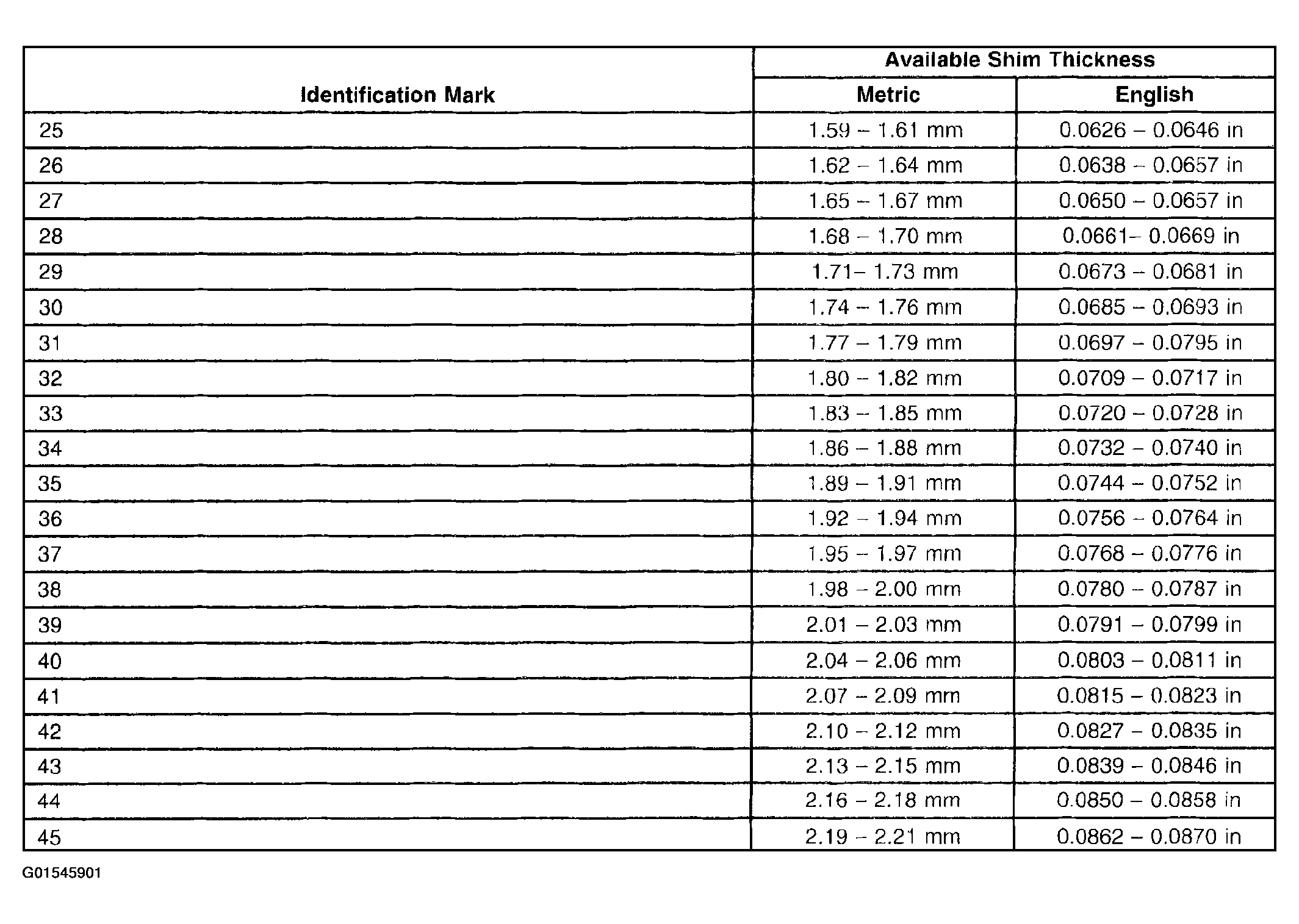

Fig 1: Ring Gear Backlash Shim Selection Specifications Chart (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

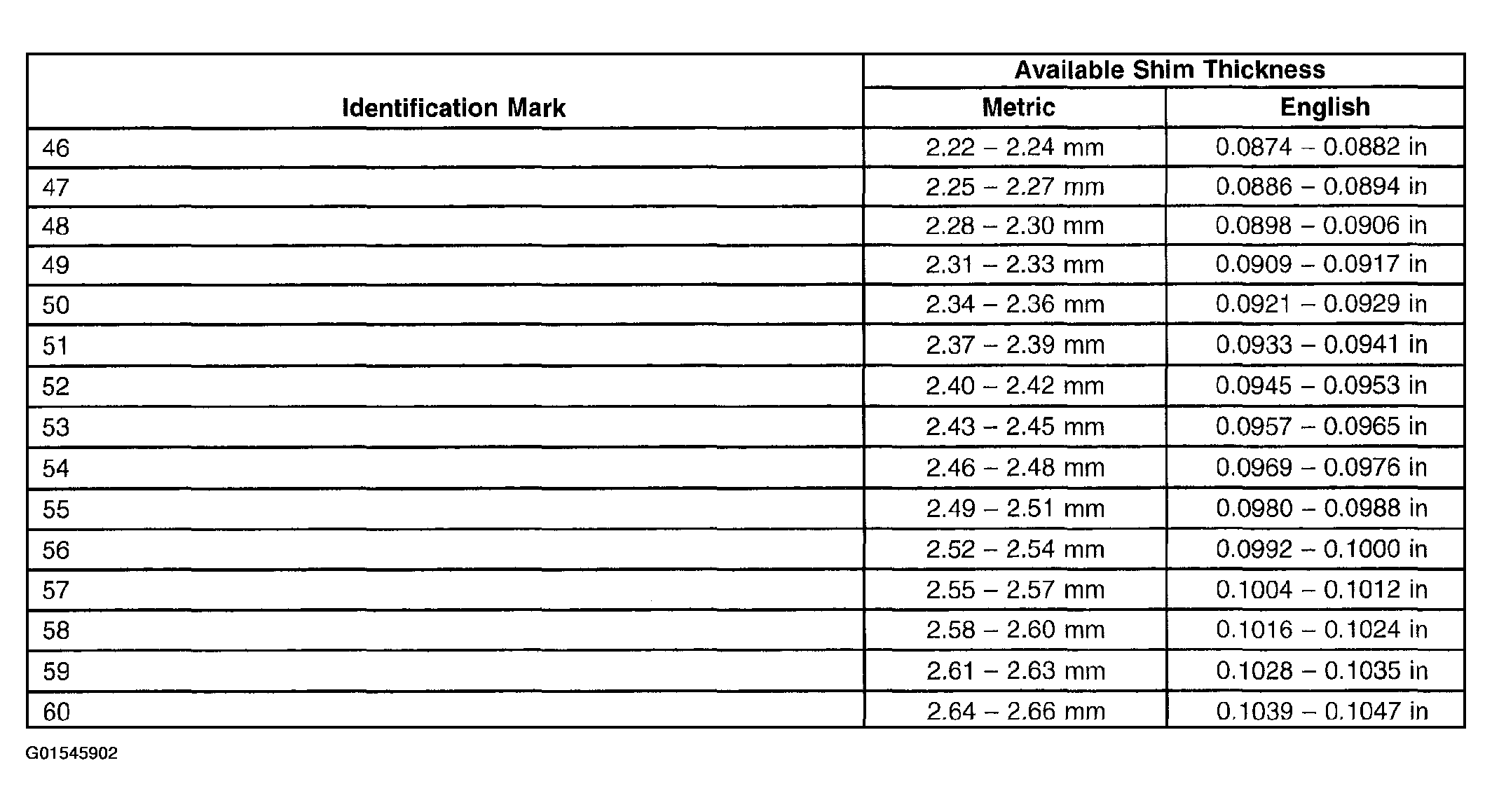

Fig 2: Ring Gear Backlash Shim Selections Specifications Chart (2 Of 2)
