Drive Pinion Preload Shim Selection

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

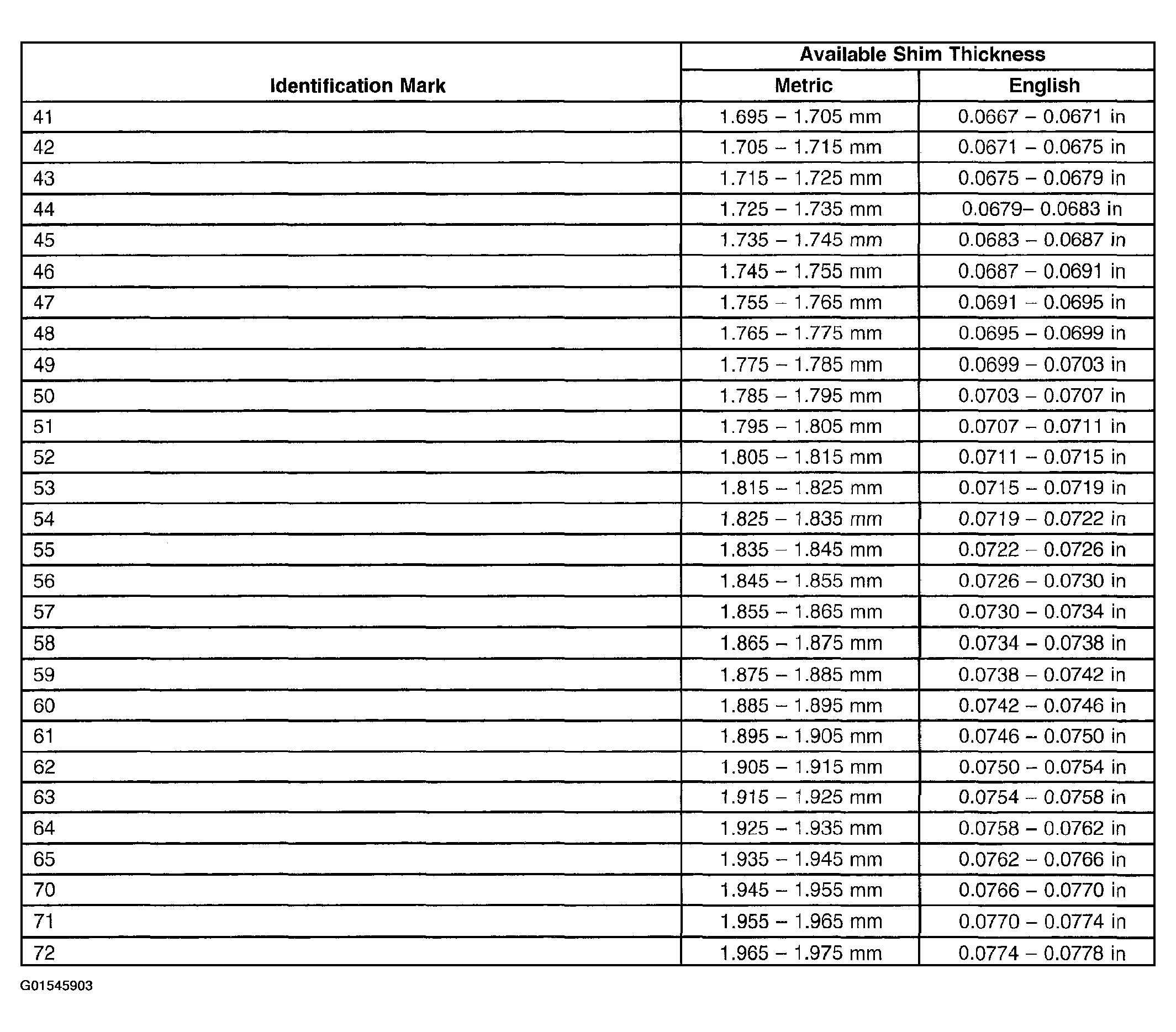

Fig 1: Drive Pinion Preload Shim Selection Specifications Chart (1 Of 2)
G01545903Courtesy of GENERAL MOTORS CORP.

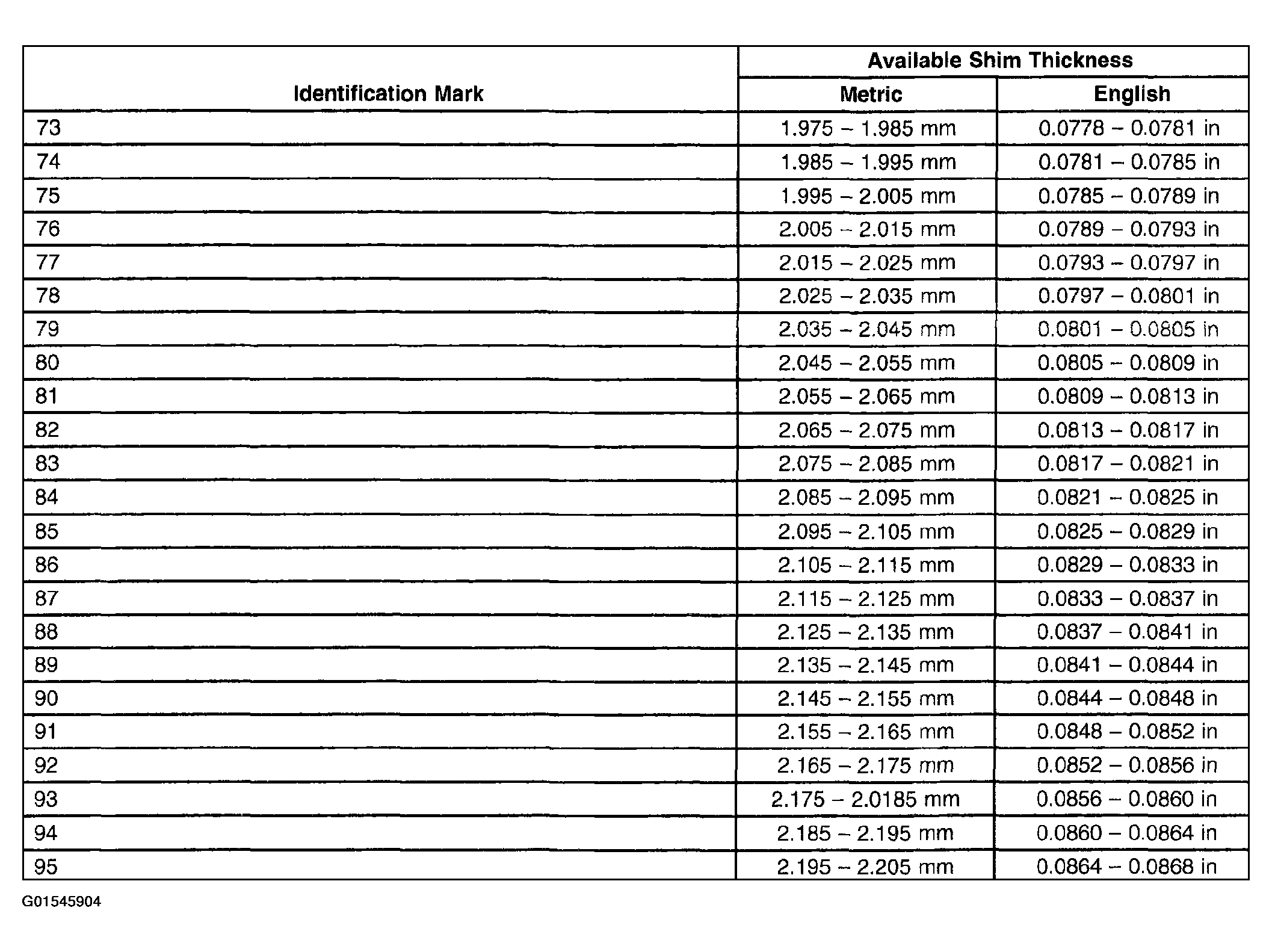

Fig 2: Drive Pinion Preload Shim Selection Specifications Chart (2 Of 2)
G01545904Courtesy of GENERAL MOTORS CORP.
