Section 1288 (Rear Drive Axle)
>>
Specifications
>>
Differential Carrier Assembly Specifications
Differential Carrier Assembly Specifications
WARNING:
This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

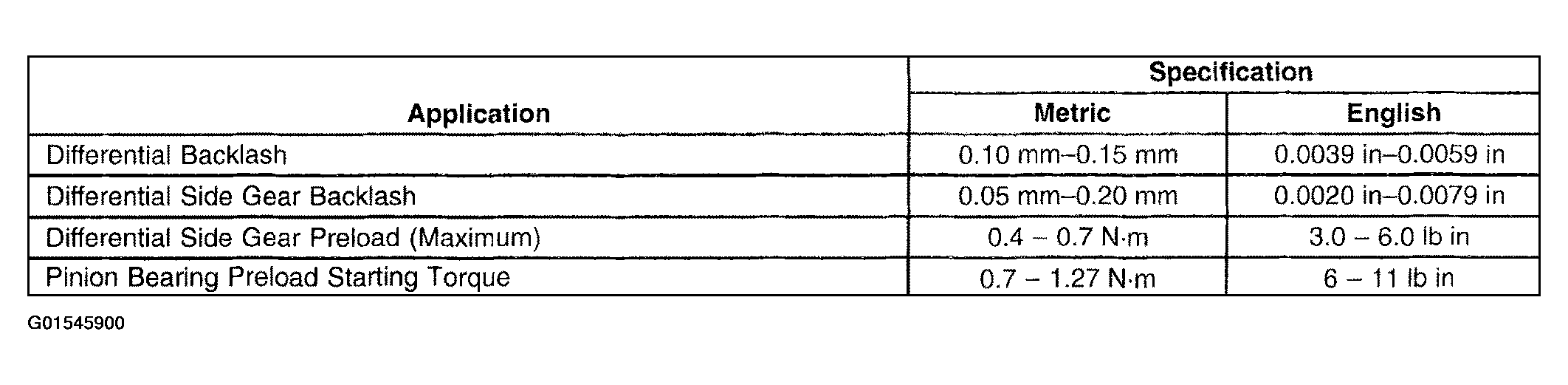

Fig 1: Differential Carrier Assembly Specifications
Courtesy of GENERAL MOTORS CORP.
