Differential Carrier Assembly Disassembled Views

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

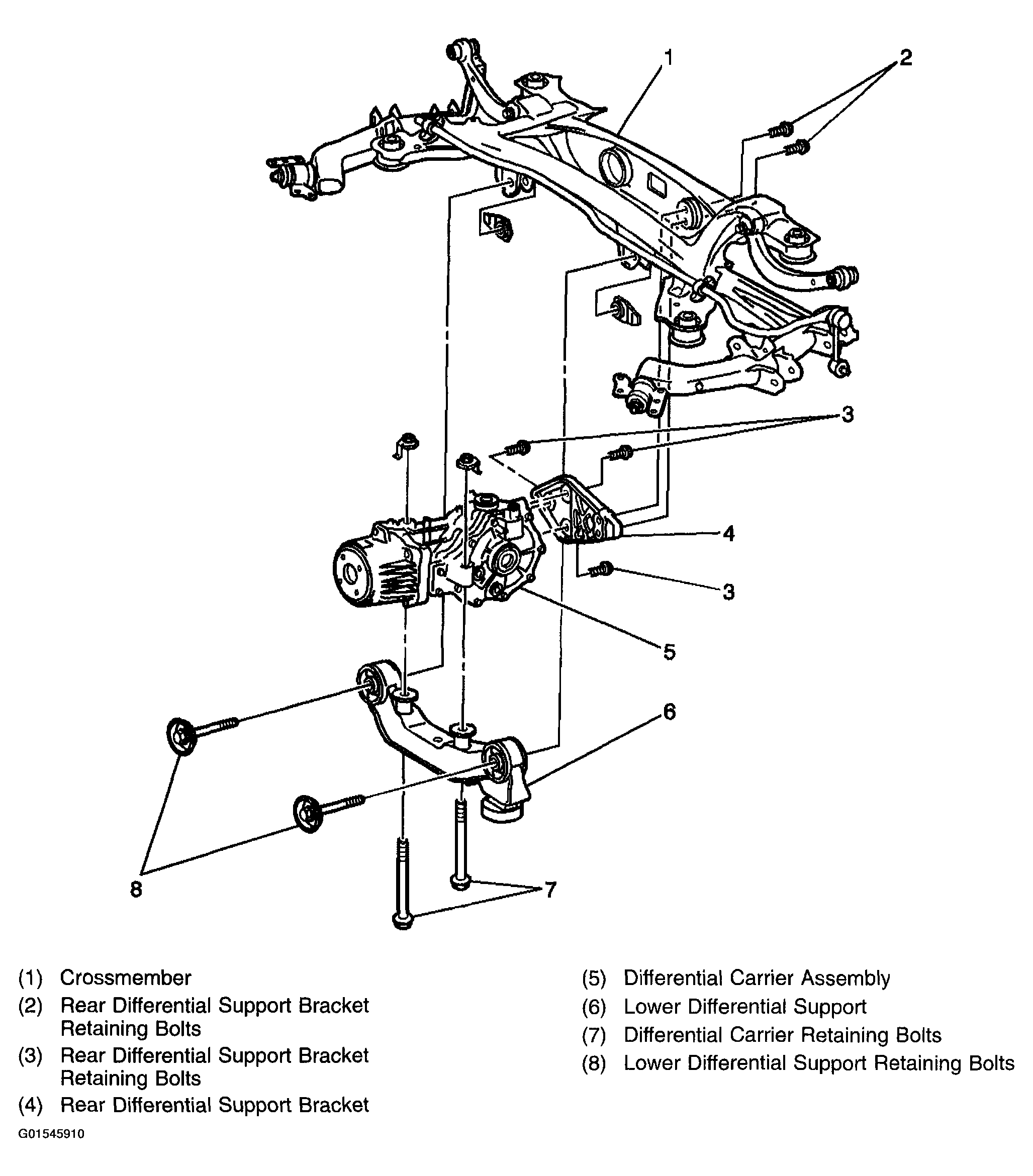

Fig 1: Rear Axle Disassembled View

Courtesy of GENERAL MOTORS CORP.

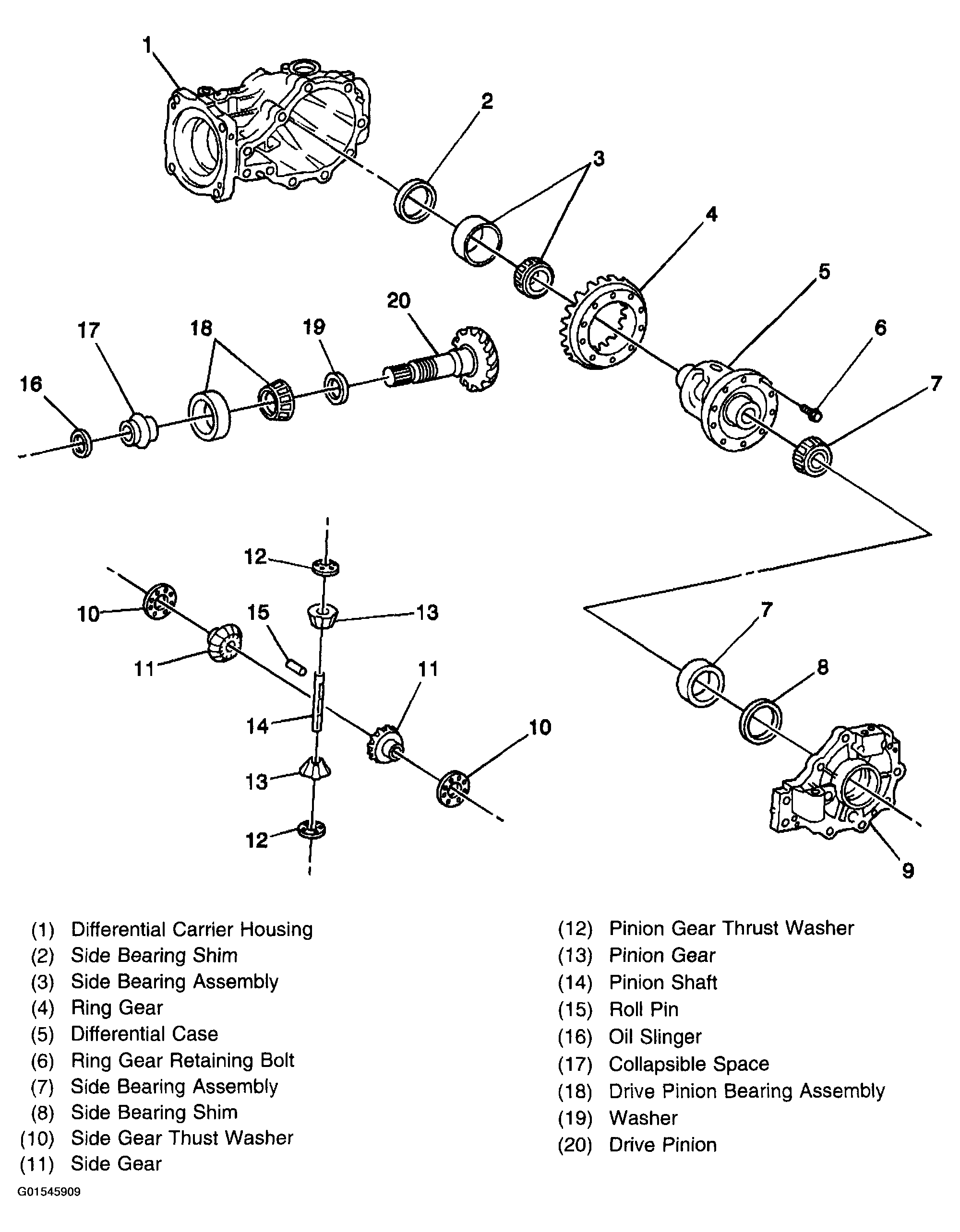

Fig 2: Rear Axle Internal Components

Courtesy of GENERAL MOTORS CORP.

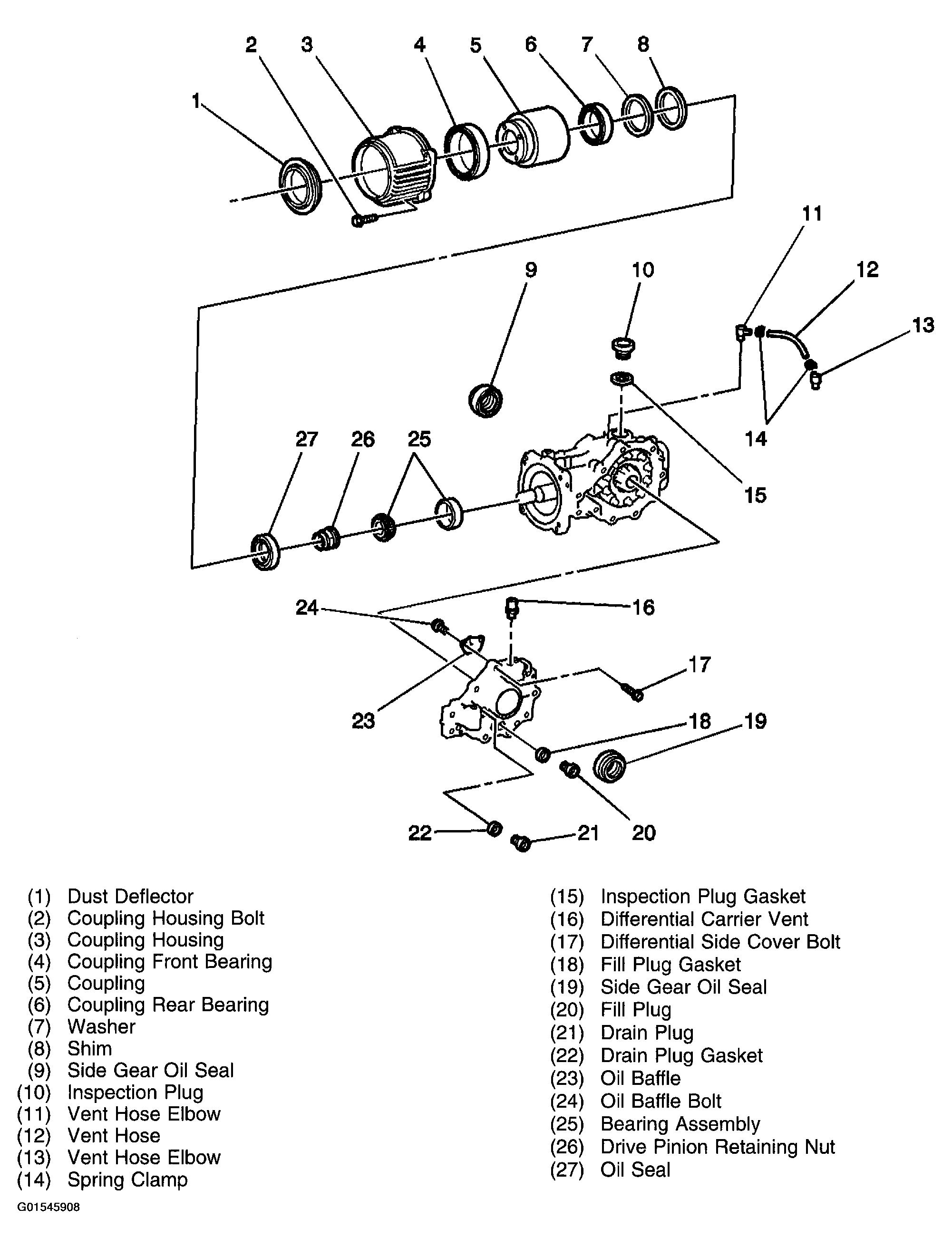

Fig 3: Rear Axle Mounting Components

Courtesy of GENERAL MOTORS CORP.

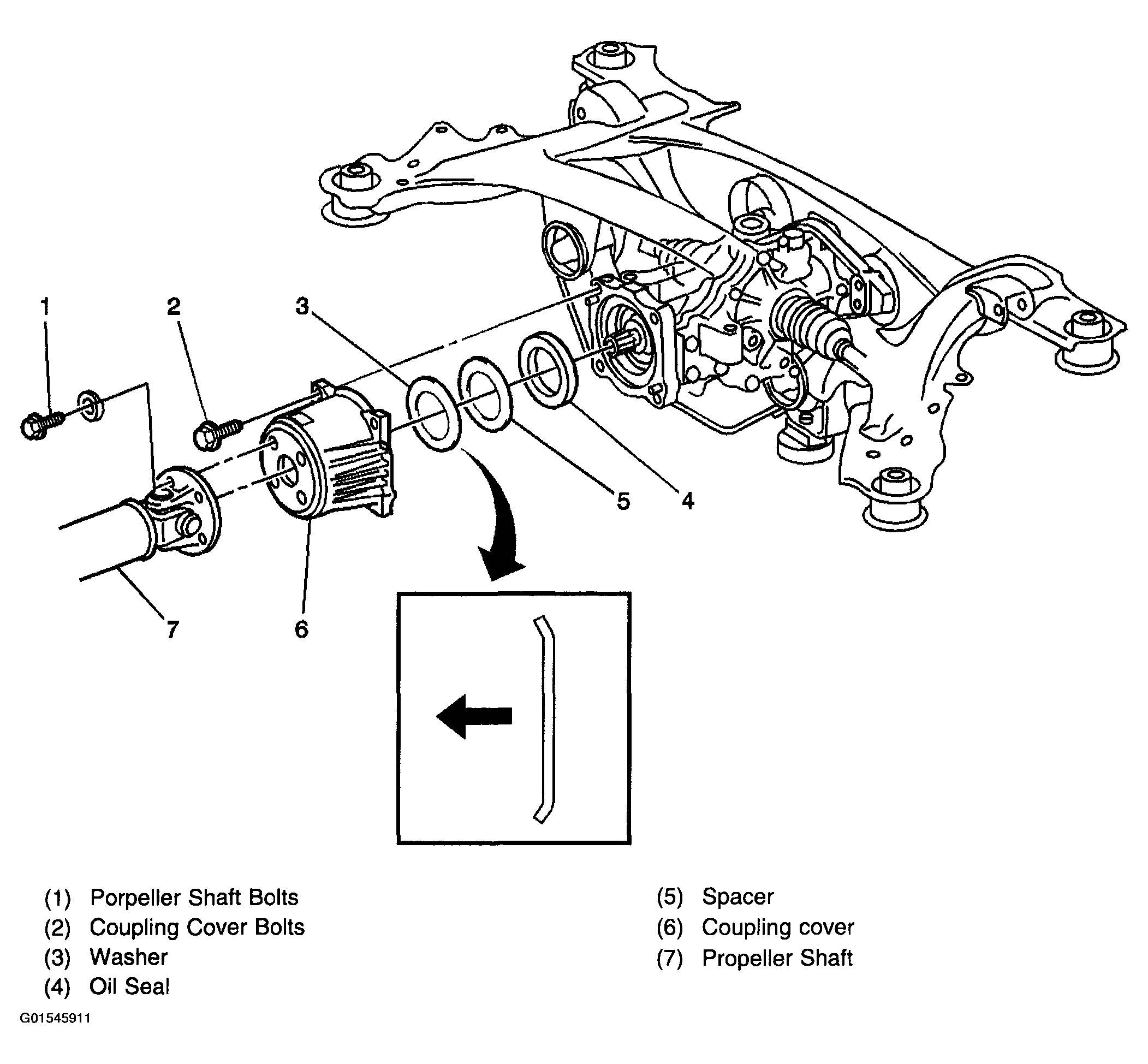

Fig 4: Rear Axle Carrier Coupling Cover

Courtesy of GENERAL MOTORS CORP.
