Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
- Place a reference mark on the pinion flange yoke and the differential pinion flange.
- Remove the 4 bolts and the 4 nuts and washers.

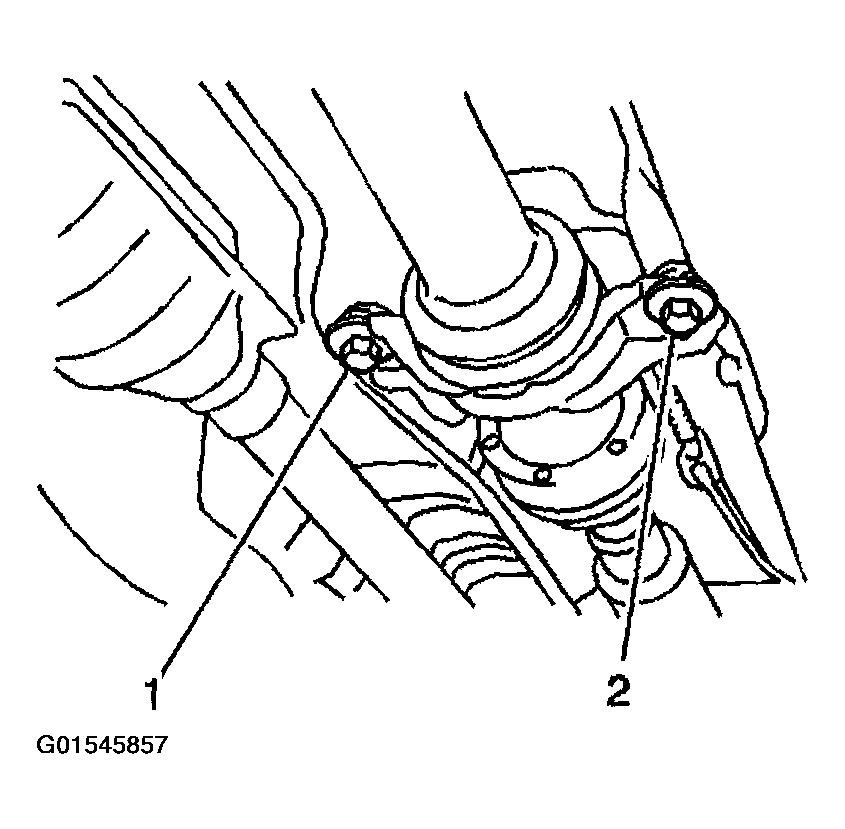

- Remove the mid shaft bearing support bolts.
- Remove the sliding yoke (1) and the two piece propeller shaft assembly from the transmission.
- Inspect the shaft for dents or other damage. Replace the shaft if the shaft is damaged.
- Inspect the universal joints for smooth pivoting. If the universal joints bind or appear tight replace the universal joints as assembled.

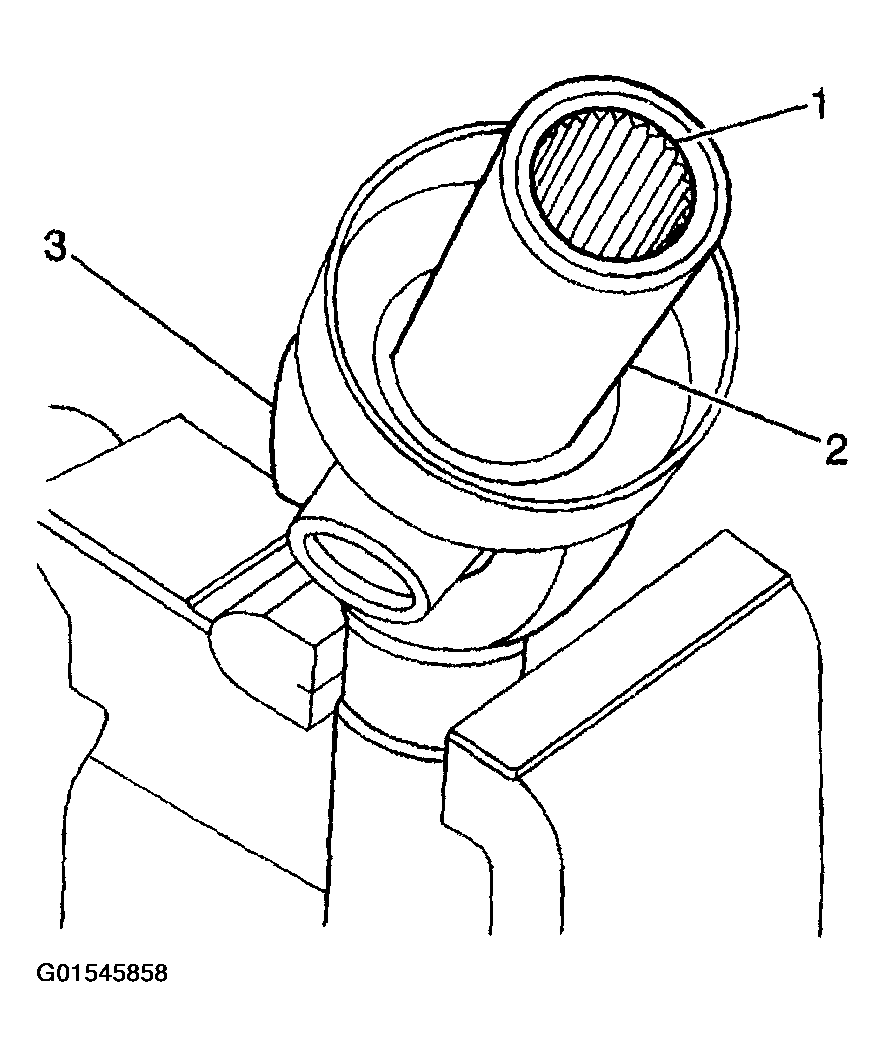

- Inspect the sliding yoke splines (1) for excessive wear or damage. If the splines (1) appear worn or rounded, replace the sliding yoke (3).
- Inspect the sliding yoke for the following:
- Scoring
- Burrs
- Other damage
If the sliding yoke surface appears scored or rough, replace the sliding yoke.
- Inspect the pinion flange yoke for the following:
- Cracks
- Distortion
- Other damage
If the pinion flange yoke appears damaged or distorted, replace the pinion flange yoke.
