Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sliding yoke (1) into the transmission with the two piece propeller shaft assembly.
  2. Ensure that the sliding yoke splines are lubricated.

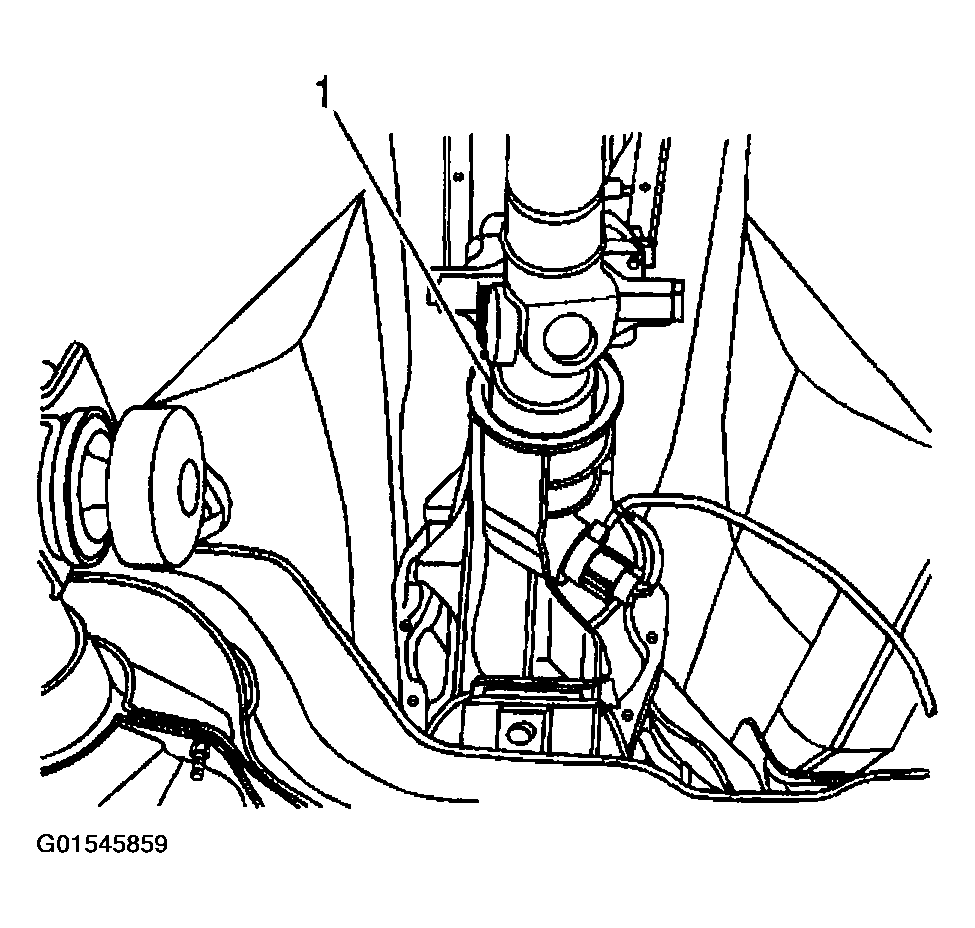

    Fig 1: Installing Sliding Yoke Into Transmission
    G01545859Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the mid shaft bearing support bolts (1,2).
    1. Tighten
    2. Tighten the bolts to 37 N.m (27 lb ft).

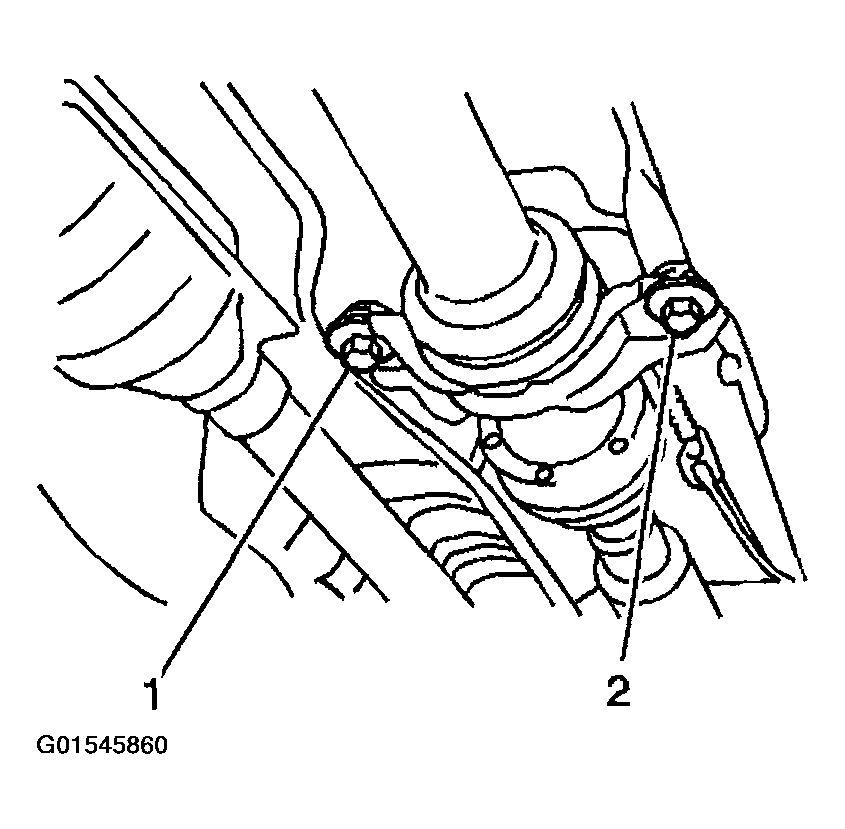

    Fig 2: Installing Mid Shaft Bearing Support Bolts
    G01545860Courtesy of GENERAL MOTORS CORP.
  4. Install the pinion flange yoke to the differential pinion flange with the reference marks. Secure the pinion flange yoke with 4 bolts and 4 nuts and washers.
    1. Tighten
    2. Tighten the propeller shaft bolts and nuts to 74 N.m (54 lb ft).
  5. Lower the vehicle.
