Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front brake rotor. Refer to FRONT BRAKE ROTOR .
  2. Install 2 wheel nuts onto 2 studs.
  3. Use a pry bar on the 2 nuts in order to prevent the hub from turning.
  4. Use the J 43631  in order to remove the wheel stud.

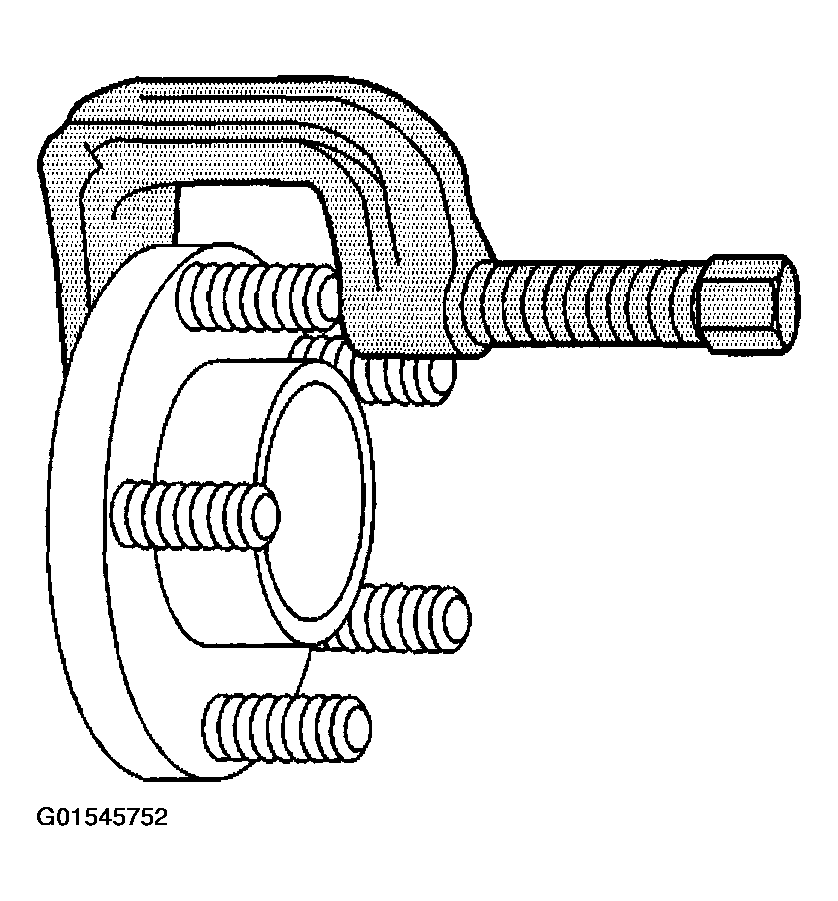

Fig 1: Removing Wheel Stud
G01545752Courtesy of GENERAL MOTORS CORP.
