Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the stabilizer shaft on the crossmember.

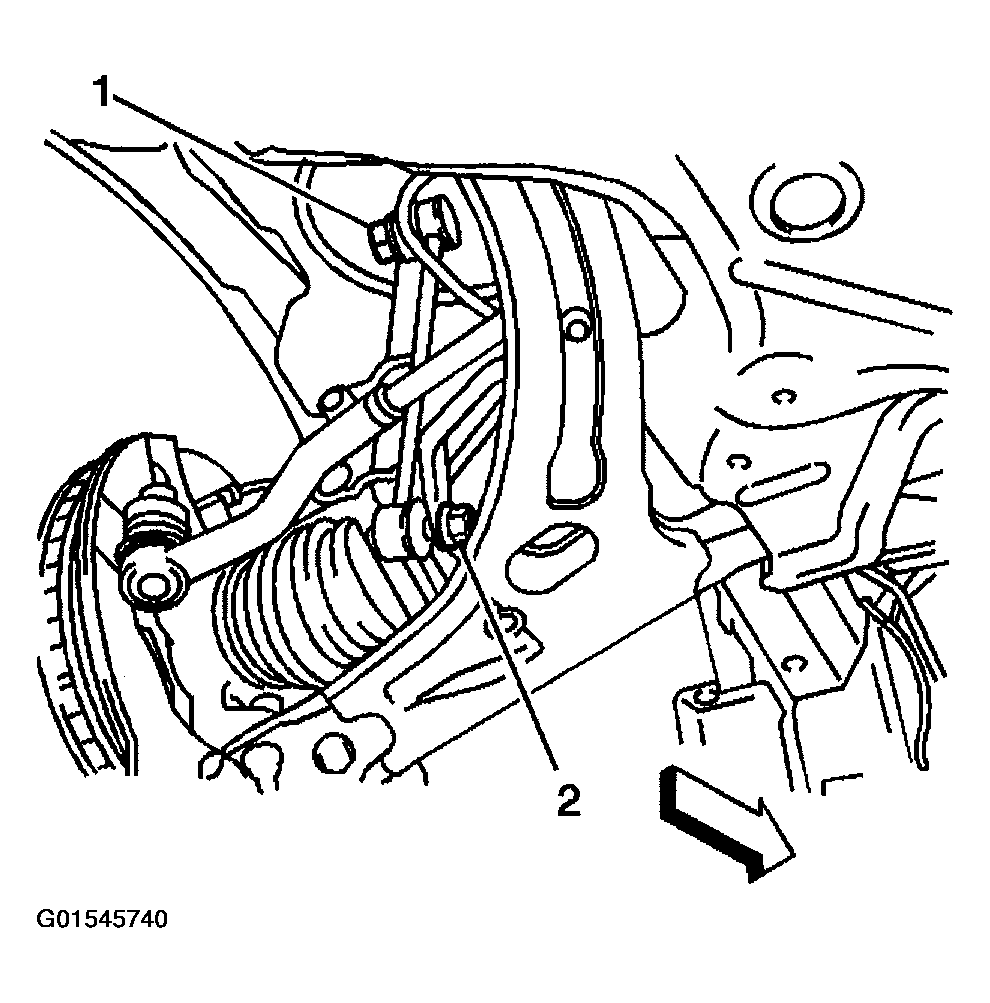

    Fig 1: Installing Stabilizer Shaft (AWD)
    G01545740Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 stabilizer shaft insulators to the stabilizer shaft.
  3. Install the 2 clamps and the 4 bolts to the insulators.
  4. Install the crossmember to the vehicle. Refer to FRONT SUSPENSION CROSSMEMBER REPLACEMENT (FWD)  or FRONT SUSPENSION CROSSMEMBER REPLACEMENT (AWD)  .
    NOTE: Refer to FASTENER NOTICE .
  5. Tighten the 4 bolts to the clamps.

    Tighten

    Tighten the bolts to 19 N.m (14.0 lb ft).

  6. Install the stabilizer shaft links and the nuts (1,2) to the stabilizer shaft and to the strut brackets.

    Tighten

    Tighten the nuts to 74 N.m (54.6 lb ft).
