Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the front tire and wheel assembly from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Use a 6 mm wrench in order to hold the stabilizer shaft link upper stud. Remove the nut from the stud in order to separate the link (3) from the strut bracket.
  4. Use a 6 mm wrench in order to hold the stabilizer shaft link lower stud. Remove the nut from the stud in order to separate the link from the stabilizer shaft.

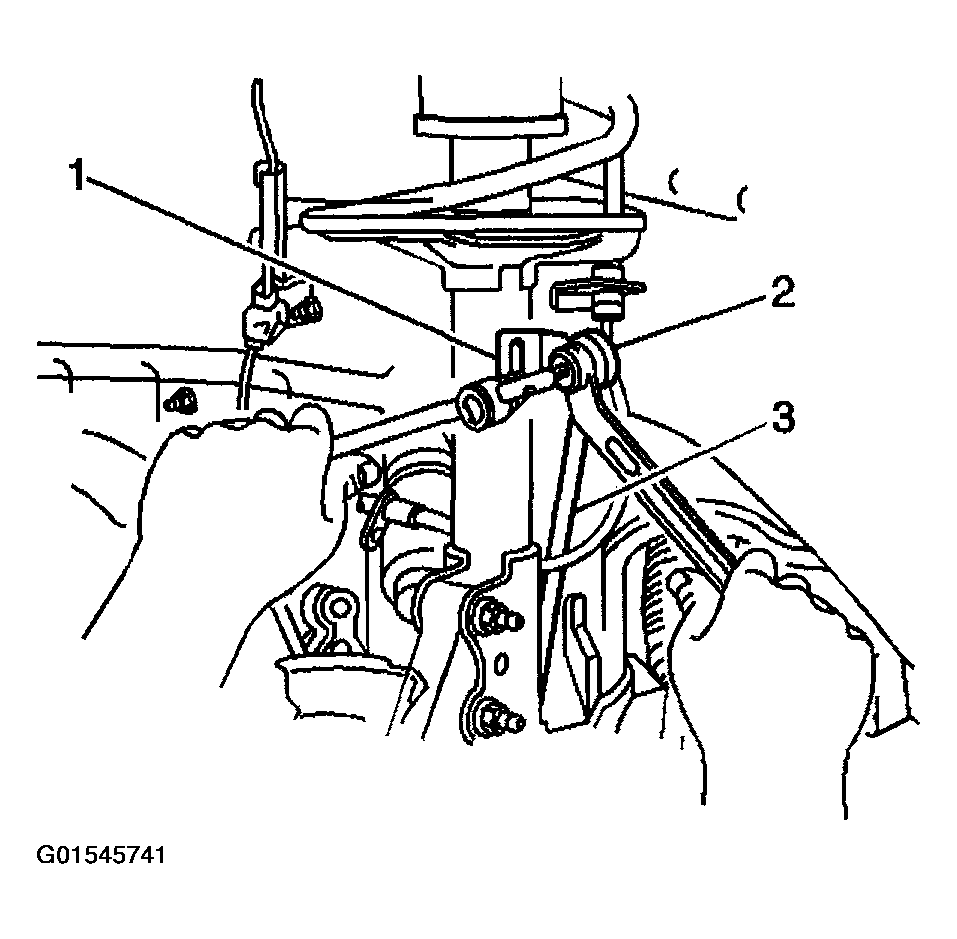

Fig 1: Removing Stabilizer Shaft Link
G01545741Courtesy of GENERAL MOTORS CORP.
