Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

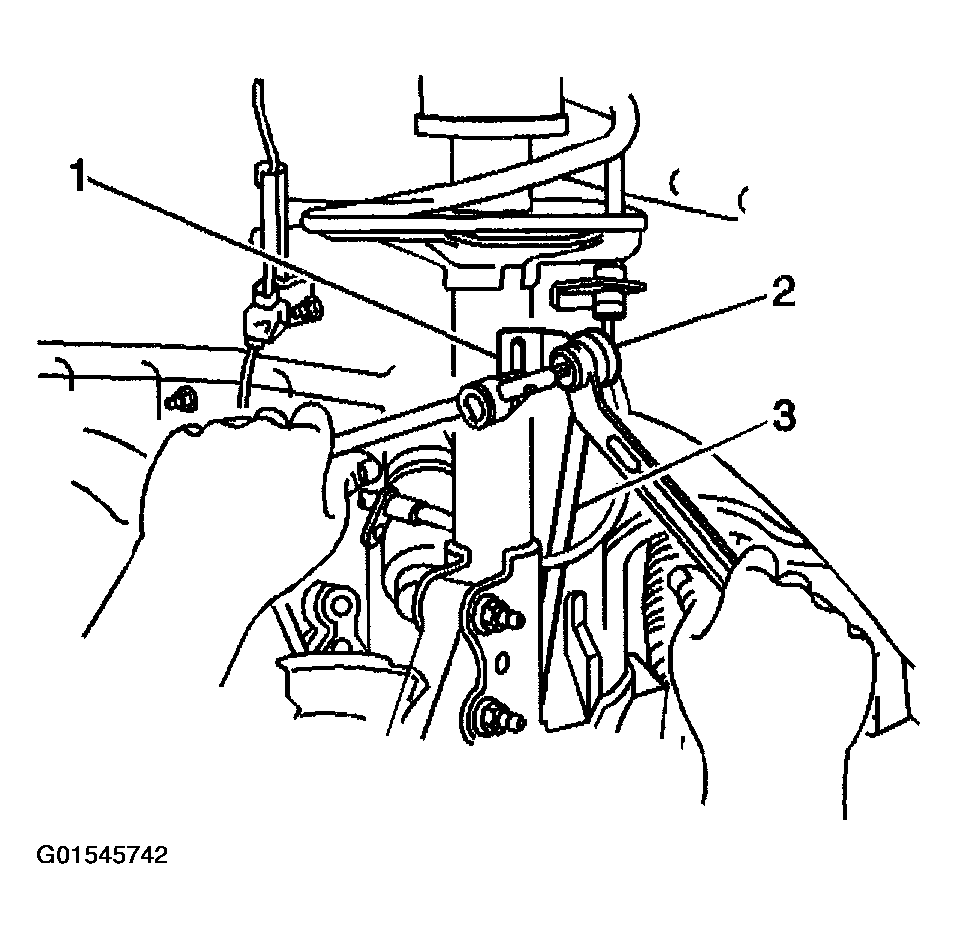

- Use a 6 mm wrench in order to hold the stabilizer shaft link upper stud. Install the nut and the stud to the bracket (1) on the strut.
Tighten
Tighten the nut to 74 N.m (54.6 lb ft).
- Use a 6 mm wrench in order to hold the stabilizer shaft link lower stud. Install the nut and the stud to the stabilizer shaft.
Tighten
Tighten the nut to 74 N.m (54.6 lb ft).
- Install the front tire and wheel assembly to the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
- Lower the vehicle.
