Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper trim cover (7) to the steering column.
  2. Install the lower trim cover (6) to the steering column.
  3. Install the screw to the bottom of the lower trim cover.
  4. Install the 2 lower trim cover screws to the lower trim cover.

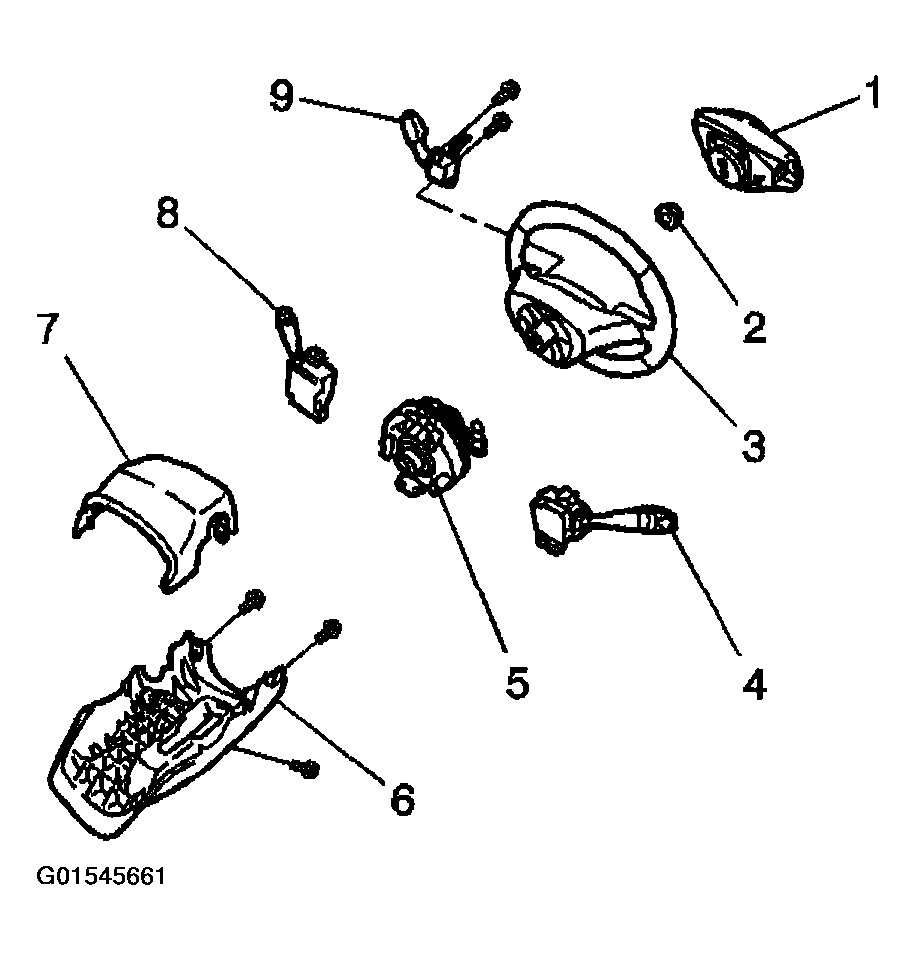

Fig 1: Installing Steering Column Trim Covers
G01545661Courtesy of GENERAL MOTORS CORP.
