Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the trim covers from the steering column. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Insert the key into the ignition lock cylinder (2).
Turn the key to the ACC position.
Use a screwdriver in order to push in the stop pin on the underside of the lock cylinder case (6).
Remove the cylinder from the case.

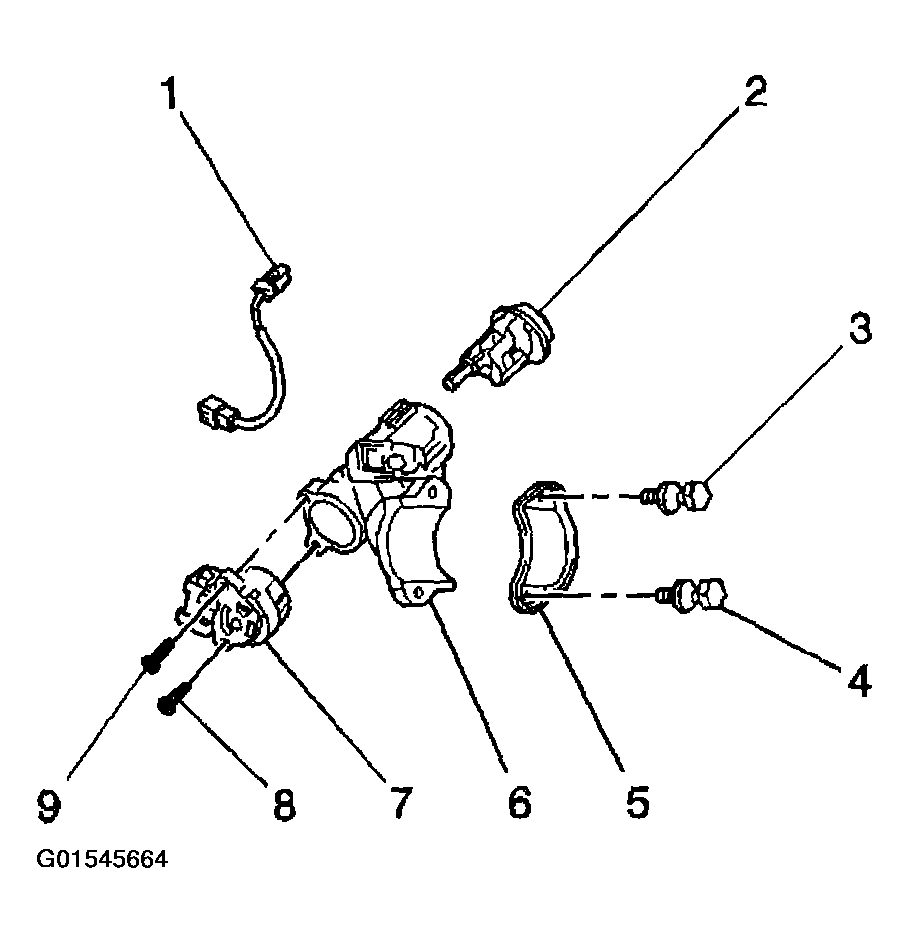

Fig 1: Removing Ignition Lock Cylinder

Courtesy of GENERAL MOTORS CORP.
