Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the reservoir to the bracket.
    NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  2. Install the reservoir outlet hose and the hose clamp to the reservoir.
  3. Install the reservoir inlet hose and the hose clamp to the reservoir.
    NOTE: When adding fluid or making a complete fluid change, always use the proper power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.
  4. Add fluid to the reservoir. Refer to CHECKING AND ADDING POWER STEERING FLUID  .
    NOTE: Refer to AIR IN THE POWER STEERING SYSTEM NOTICE .
  5. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
  6. Install the reservoir cap (2).

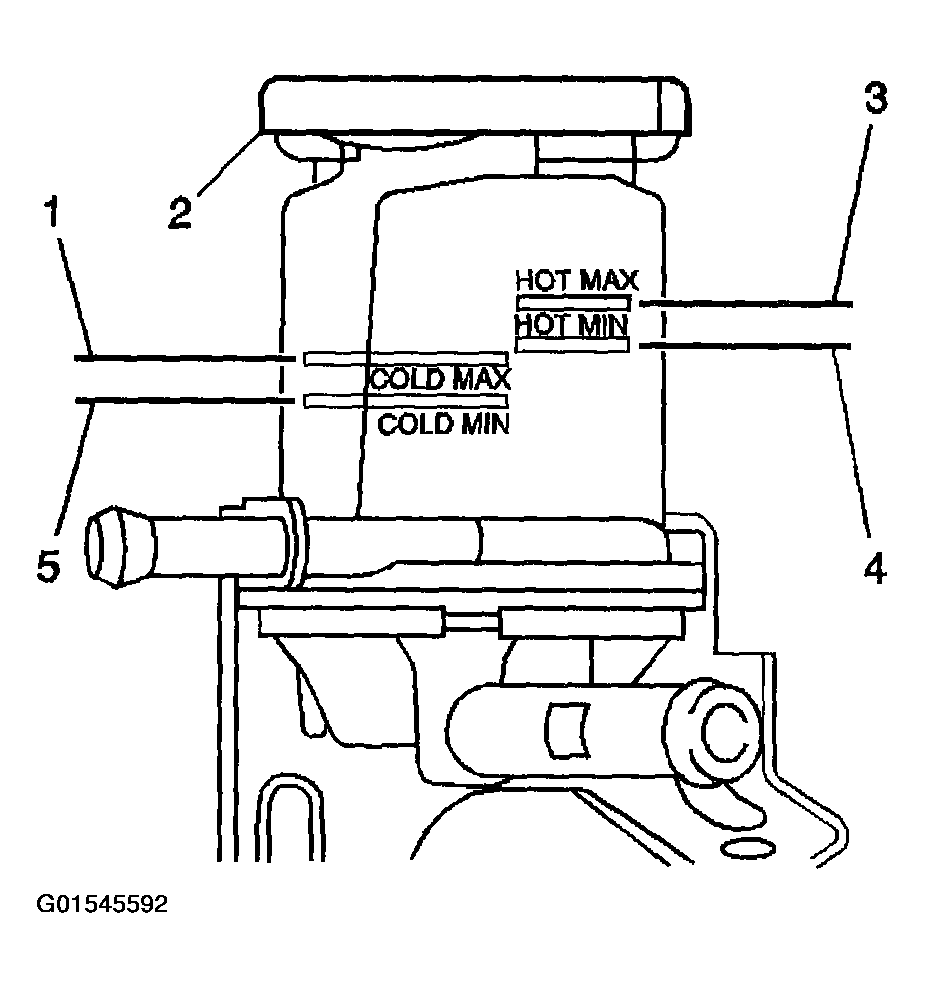

Fig 1: Installing Remote Power Steering Fluid Reservoir
G01545592Courtesy of GENERAL MOTORS CORP.
