Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the right front tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the right front engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE - RIGHT in Body Front End.
  4. Disconnect the power steering pressure (PSP) switch connector (3).
  5. Remove the PSP switch from the pump.

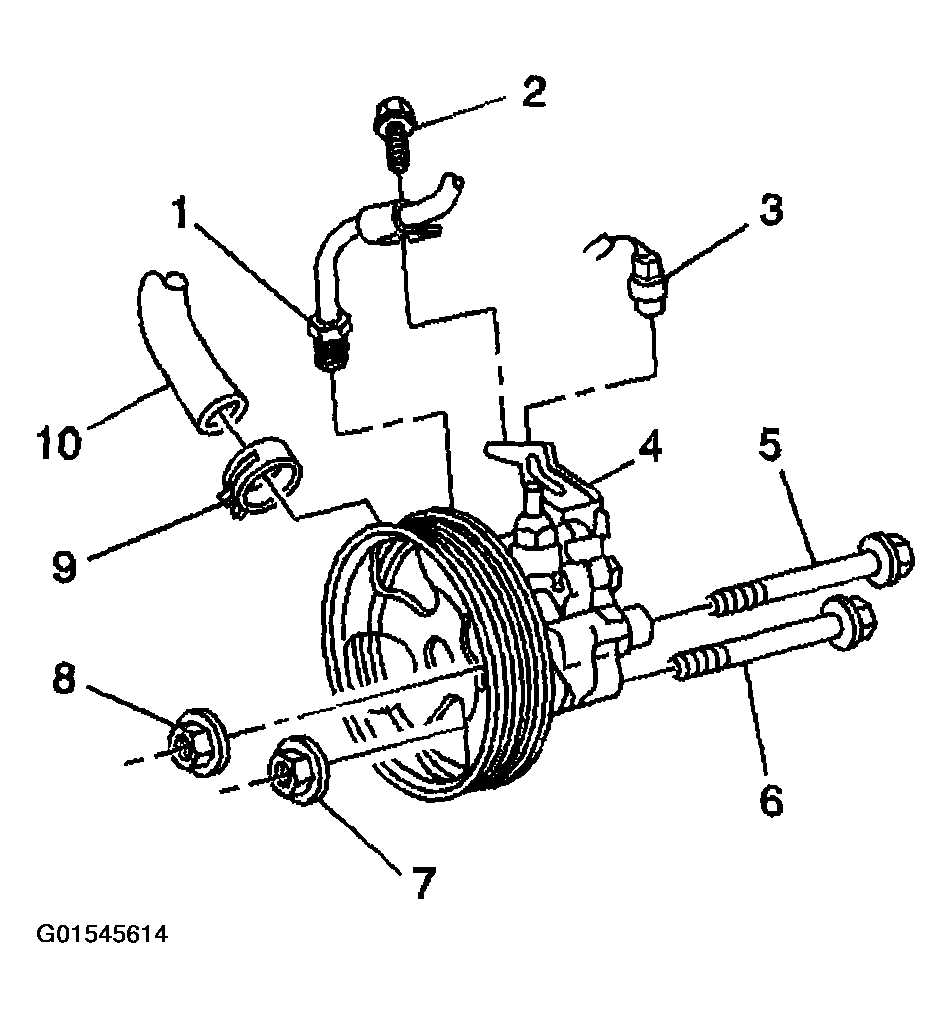

Fig 1: Removing PSP Switch From Pump
G01545614Courtesy of GENERAL MOTORS CORP.
