Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle in order to catch any power steering fluid.
  2. Remove the bolt (2) from the power steering gear outlet hose (3).

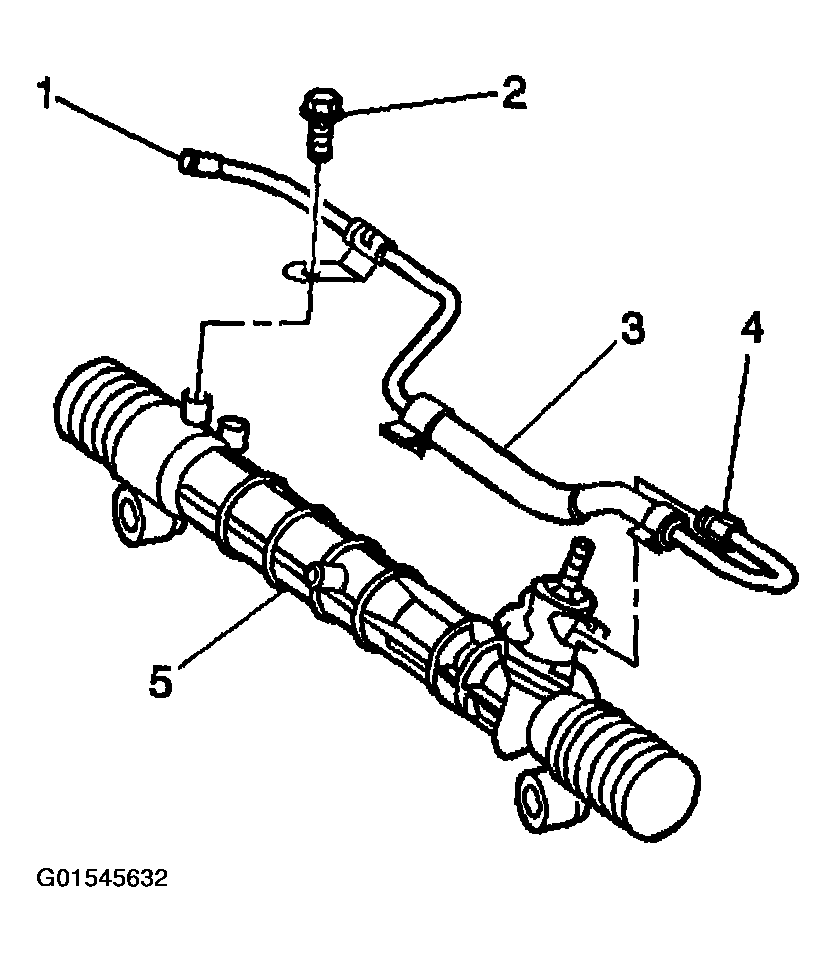

    Fig 1: Removing Power Steering Gear Outlet Hose
    G01545632Courtesy of GENERAL MOTORS CORP.
  3. Loosen the clamp that retains the power steering cooling pipe to the gear outlet hose.
    NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  4. Remove the gear outlet hose from the cooling pipe.
  5. Remove the pipe fitting (4) and the gear outlet hose from the steering gear (5).
