Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle in order to catch any power steering fluid.
  2. Remove the bolt (5) from the power steering gear inlet hose (4).

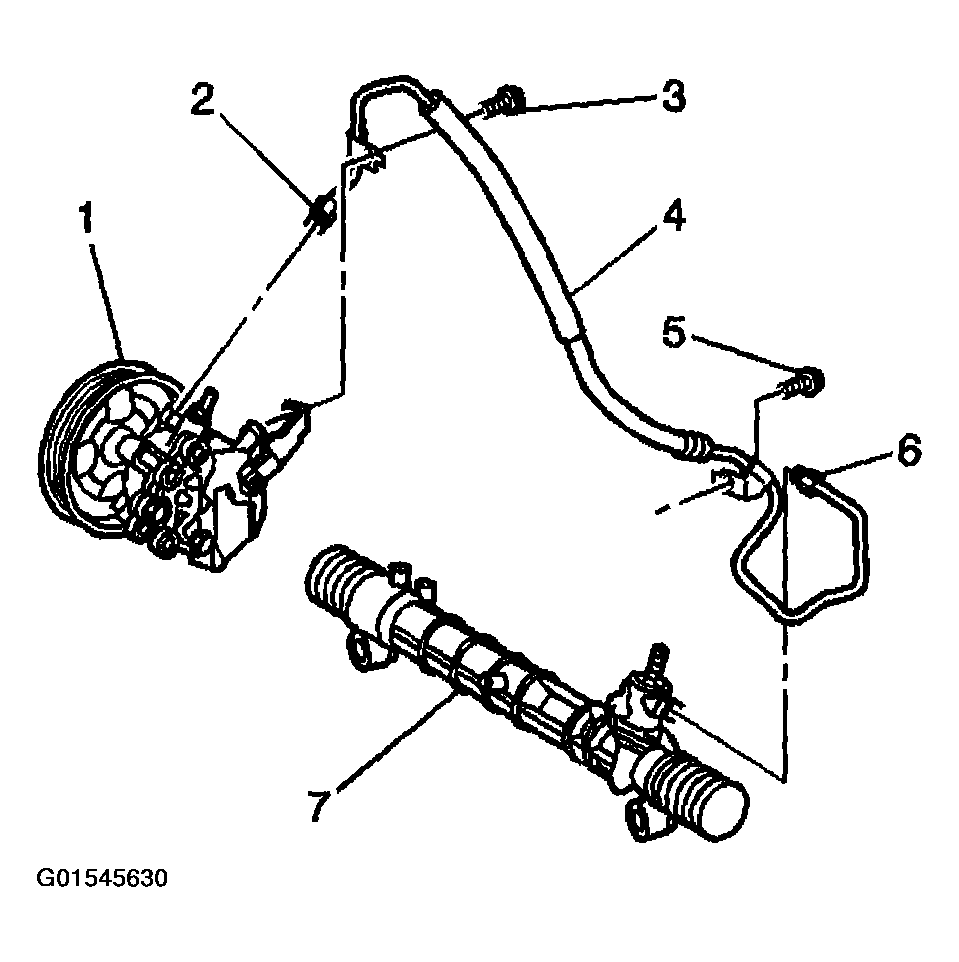

    Fig 1: Removing Power Steering Gear Inlet Hose
    G01545630Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  3. Remove the pipe fitting (6) and the gear inlet hose from the steering gear (7).
  4. Remove the bolt (3).
  5. Remove the pipe fitting (2) and the gear inlet hose from the pump.
