Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .

Install the pipe fitting (2) and the gear inlet hose (4) to the pump.

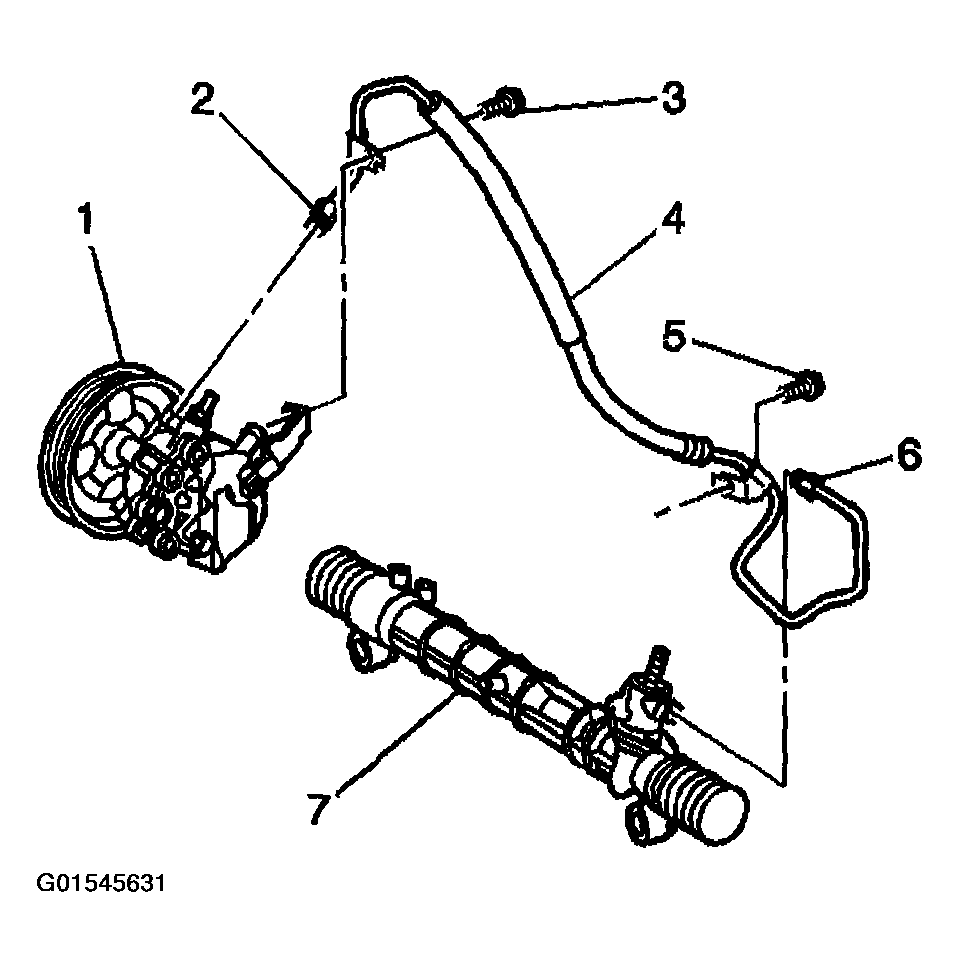

Fig 1: Installing Power Steering Gear Inlet Hose
Courtesy of GENERAL MOTORS CORP.
1. Tighten
2. Tighten the pipe fitting to 44 N.m (32.5 lb ft).
Install the bolt (3).
1. Tighten
2. Tighten the bolt to 7.8 N.m (69.04 Ib. in).
Install the pipe fitting (6) and the gear inlet hose to the steering gear (7).
1. Tighten
2. Tighten the pipe fitting to 25 N.m (18.4 lb ft).
Install the bolt (5) in order to retain the hose to the steering gear.
1. Tighten
2. Tighten the bolt to 7.8 N.m (69.04 Ib. in).
NOTE: When adding fluid or making a complete fluid change, always use the proper power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.
Fill the power steering fluid reservoir. Refer to CHECKING AND ADDING POWER STEERING FLUID .
NOTE: Refer to AIR IN THE POWER STEERING SYSTEM NOTICE .
Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
