Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Install the power steering fluid cooler pipe (5) to the power steering fluid reservoir.

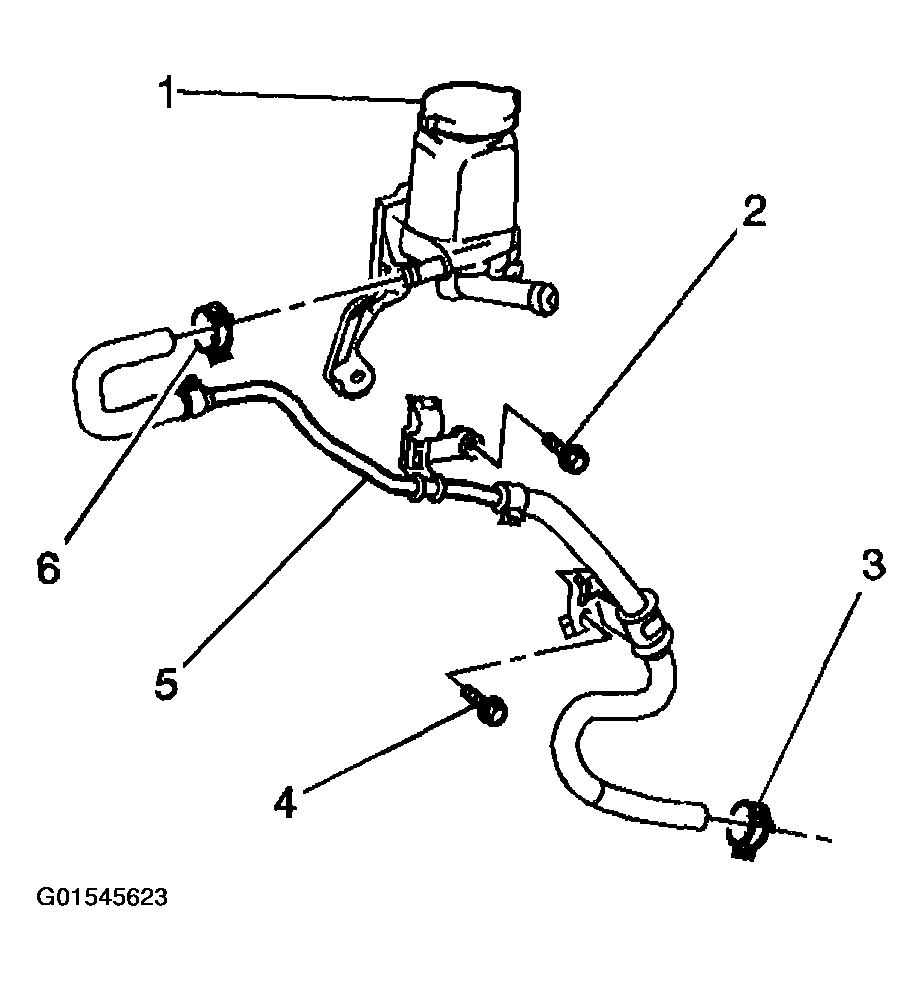

    Fig 1: Installing Power Steering Cooler Pipe
    G01545623Courtesy of GENERAL MOTORS CORP.
  2. Install the cooler pipe to the end of the steering gear outlet hose.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the 2 bolts (2,4).
    1. Tighten
    2. Tighten the bolts to 7.8 N.m (69.04 Ib. in).
  4. Install the 2 hose clamps (3,6).
    NOTE: When adding fluid or making a complete fluid change, always use the proper power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.
  5. Fill the power steering fluid reservoir. Refer to CHECKING AND ADDING POWER STEERING FLUID  .
    NOTE: Refer to AIR IN THE POWER STEERING SYSTEM NOTICE .
  6. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
