Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle in order to catch any power steering fluid.
  2. Remove the bolt (7) from the power steering fluid cooler pipe (6).

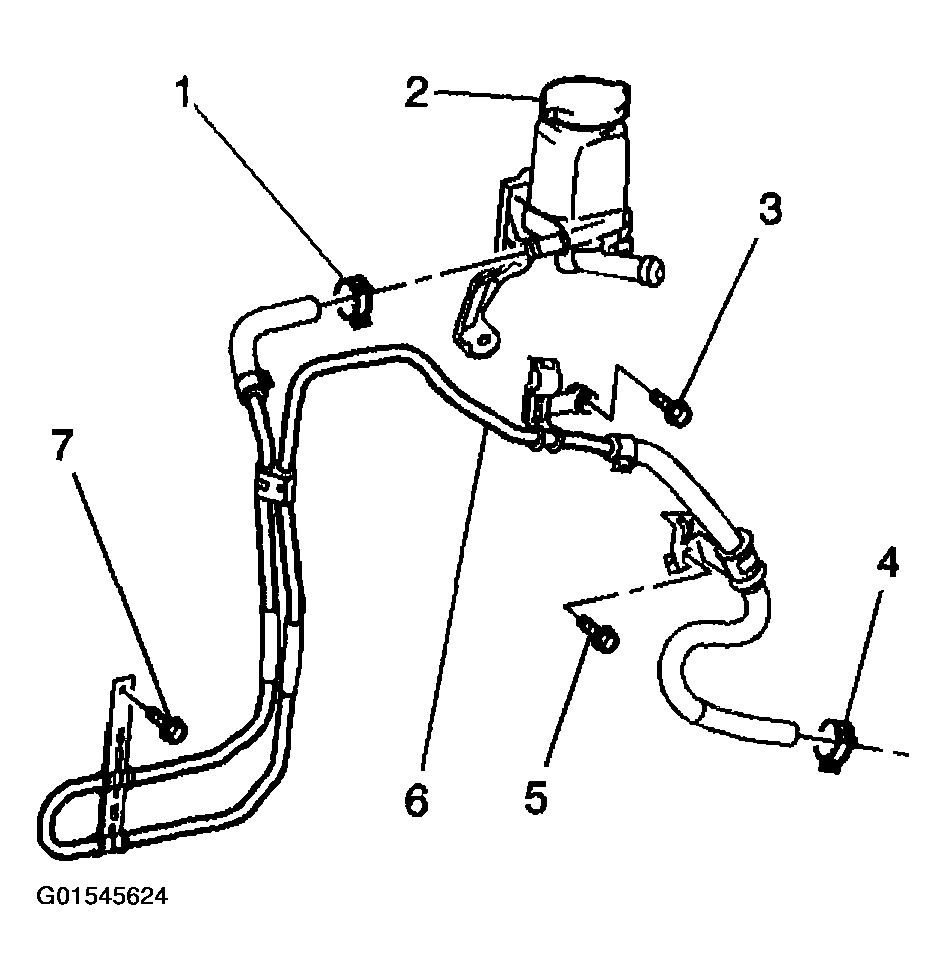

    Fig 1: Removing Power Steering Cooler Pipe
    G01545624Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt (3) from the cooler pipe.
  4. Remove the bolt (5) from the cooler pipe.
  5. Loosen the clamp (4) that retains the power steering cooler pipe to the end of the power steering gear outlet hose.
    NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  6. Remove the gear outlet hose from the cooler pipe.
  7. Loosen the clamp (1) that retains the cooler pipe to the power steering fluid reservoir.
  8. Remove the cooler pipe from the reservoir.
