Rattle, Clunk, or Shudder Noise from the Power Steering System
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

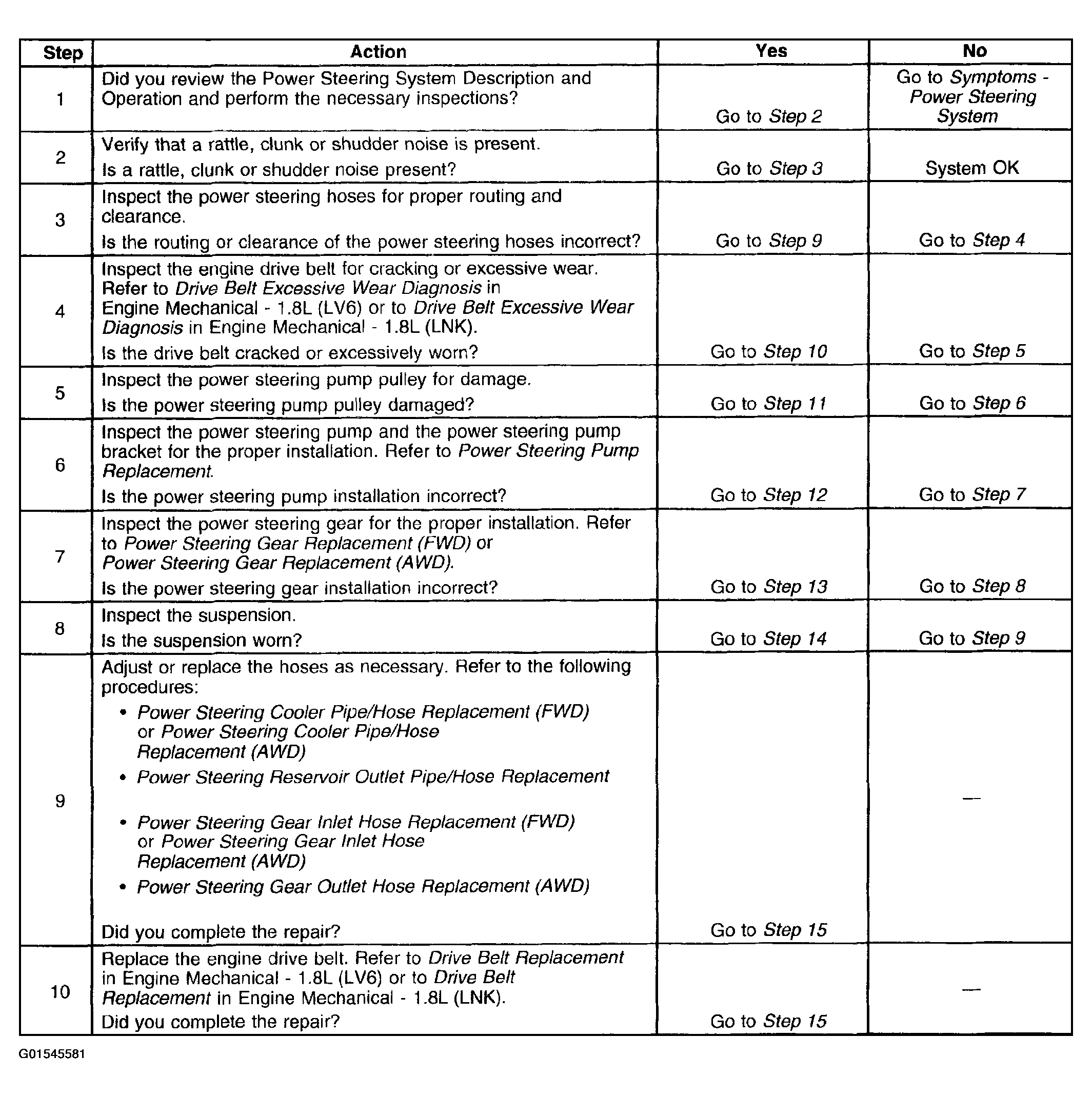

Fig 1: Rattle, Clunk, or Shudder Noise from the Power Steering System Test Procedure (Step 1-10)
Courtesy of GENERAL MOTORS CORP.

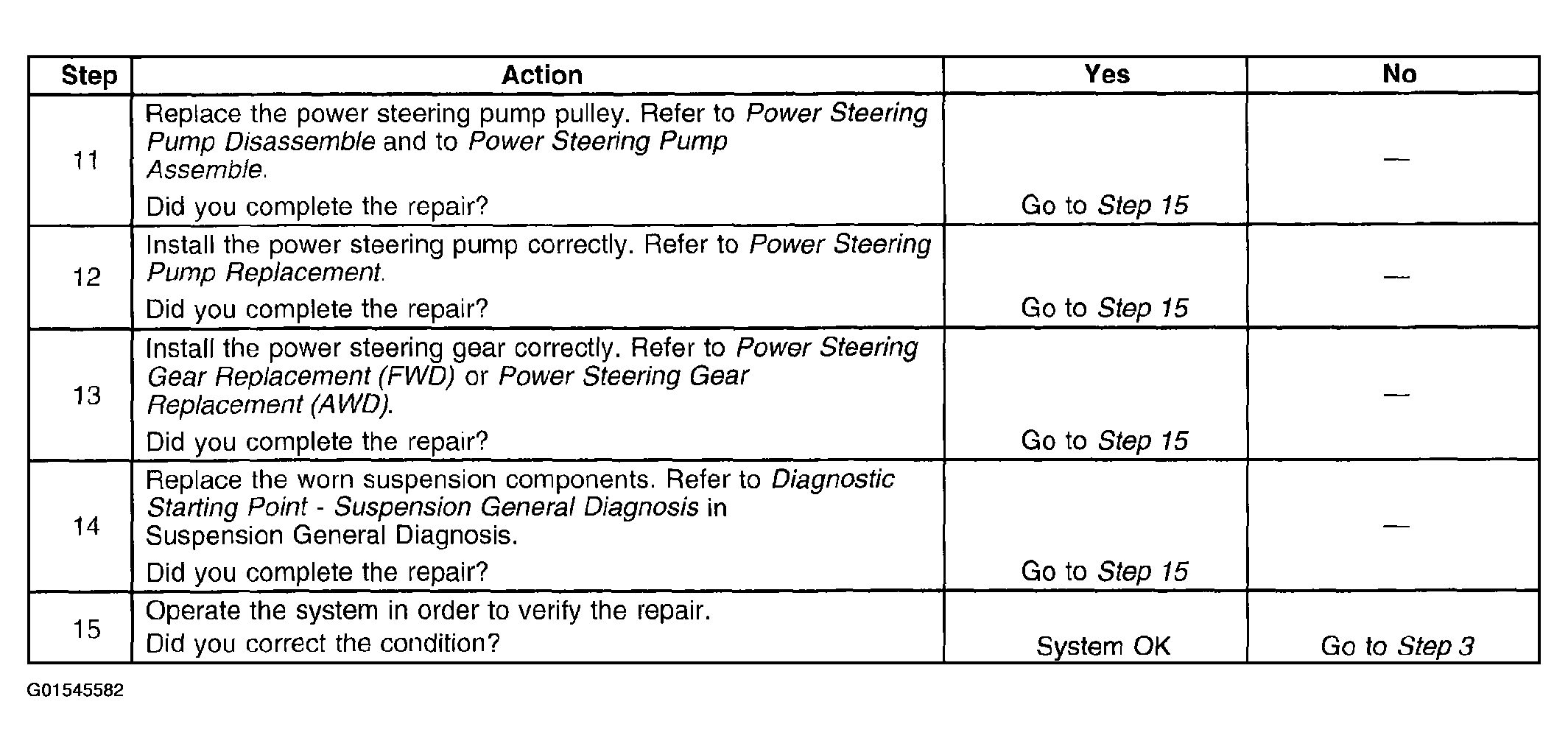

Fig 2: Rattle, Clunk, or Shudder Noise from the Power Steering System Test Procedure (Step 11-15)
