Section 1282 (Power Steering System)
>>
Component Locator
>>
Power Steering Gear Disassembled View
Power Steering Gear Disassembled View
WARNING:
This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

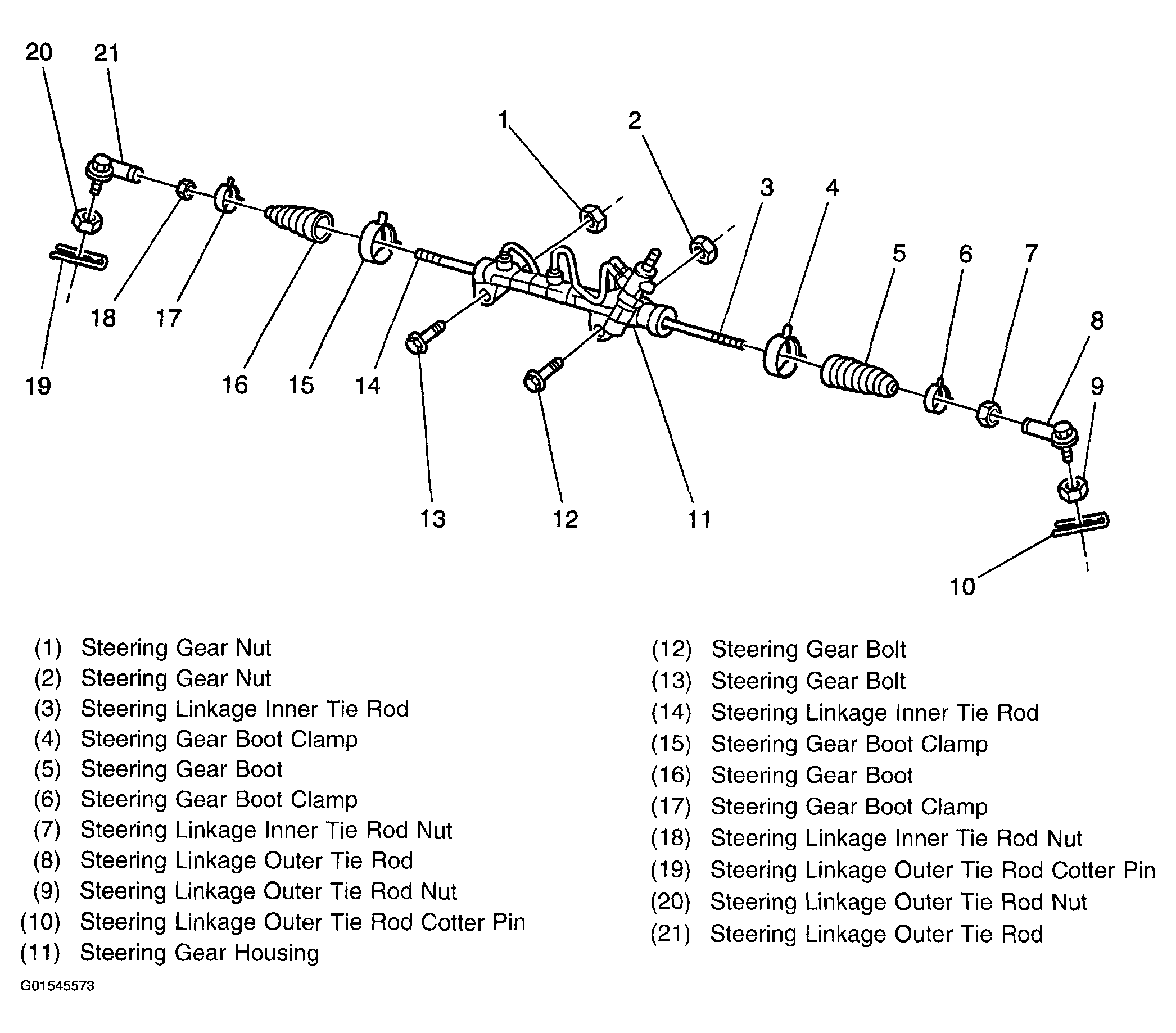

Fig 1: Exploded View Of Power Steering Gear (FWD)
Courtesy of GENERAL MOTORS CORP.

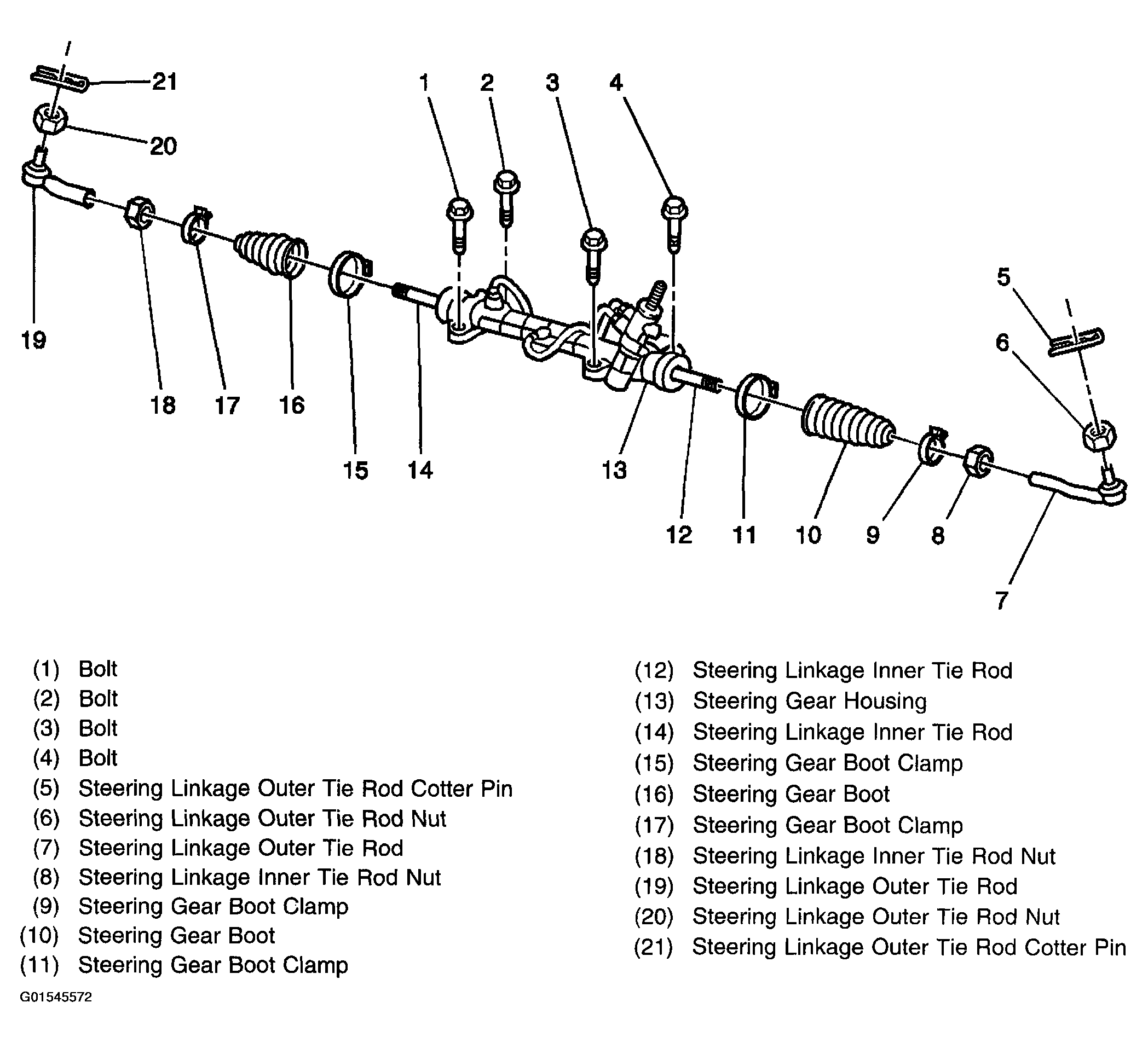

Fig 2: Exploded View Of Power Steering Gear (AWD)
Courtesy of GENERAL MOTORS CORP.
